Nvent Hoffman A8N84 Small, Type 1, 8 inches 8 inches x 4 inches

Product Description

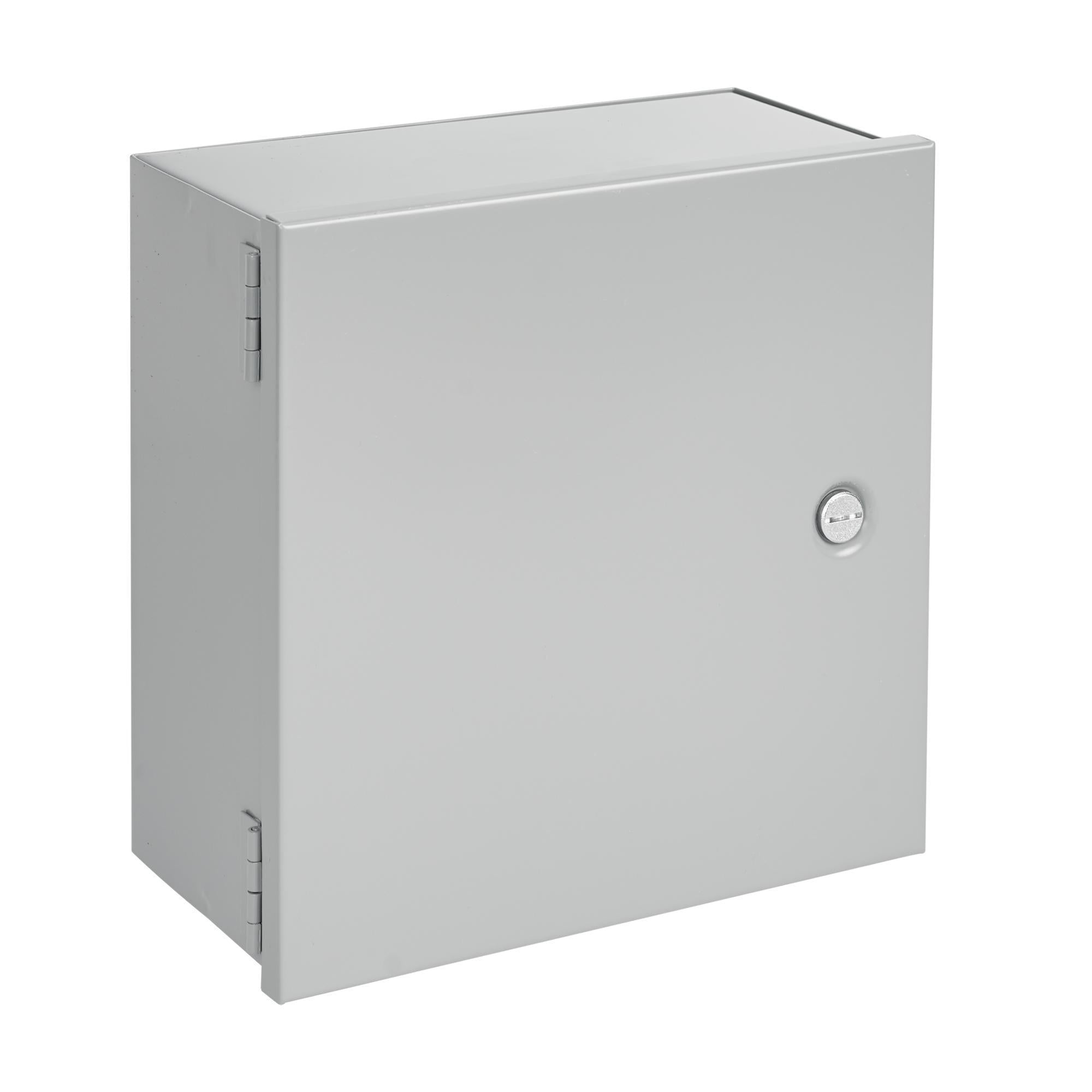

The NVENT HOFFMAN A8N84 small hinged-cover enclosure, Type 1, is suitable for indoor applications that do not require oil- or dust-tight enclosures. It has a size of 8 x 8 x 4 inches and includes mounting provisions for an optional panel. The enclosure meets basic functionality requirements.

• Features butt hinges on the door.
• Includes a flush slotted latch operated with a screwdriver; optional latches are available.
• Mounting holes are located on the back of the enclosure.

Product Highlights

This NVENT HOFFMAN enclosure is ideal for power distribution, controls, and drives, ensuring reliable performance in indoor environments.

Product Information

Standard Information

• Brand: NVENT HOFFMAN
• Manufacturer Part Number: A8N84
• Country of Origin: Mexico

Technical Specifications

• Brand: nVent Hoffman
• Color: Gray
• Depth: 4 in
• Gauge: 16 ga
• Width: 8 in
• Finish: Powder Coated
• Height: 8 in
• Material: Steel
• Standard: CSA, File 42184: Type 1,CUL Listed Per CSA C22.2 No 40; Type 1; File No. E27567,IEC 60529, IP30,NEMA/EEMAC Type 1,UL 50, 50E Listed; Type 1; File No. E27567
• Sub Brand: Hoffman
• Thickness: 1.52 mm
• Applications: For Applications that Do Not Require Oil or Dust-Tight
• Color Coding: ANSI 61
• Manufacturer: nVent
• Application: Power Distribution; Controls and Drives
• NEMA Rating: NEMA 1/IP30
• Item Type: Wall-Mounted / Pad-Mounted Enclosures
• Cover Type: Butt Hinged
• Lock: Slotted Flush Latch
• Mounting Type: Wall
• Series: A1SM
• Material Specification: 16 Gauge
• Enclosure: NEMA 1, IP30
• Approval: UL 50/50E, CUL, CSA C22.2
• Applicable Standard: IEC 60529
• ROHS Compliant: True
• IP Rating: 30
• Enclosure Mounting: Panel Mount
• Special Features: Hinged
• Gasket: Neoprene
• Mounting: Wall
• Knockouts: No
• Standards: CSA Certified, cUL, IEC, UL Listed
• Metal Gauge: 16 ga
• Product Type: Enclosure
• Basic Material: Metallic
• Closure Method: 1/4 Turn Latch
• Solid / Clear Cover: Solid
• Enclosure Cover Type: Hinged
• Enclosure NEMA Rating: 1
• Material of Enclosure: Carbon Steel
• Metallic / Non-Metallic: Metallic
• Nominal Enclosure Width: 8 in
• Enclosure Cover Features: Slotted Flush Screw
• Knockouts / No Knockouts: No Knockouts
• Item - Electrical Enclosure: Enclosure
• Country of Origin (subject to change): Mexico
• Approximate Depth: 4 in
• Approximate Height: 8 in
• Approximate Width: 8 in
