Nvent Hoffman A8896RT Wiring Trough NEMA Type 3R, 8 inches x 8 inches x 96 inches, Steel

Product Description

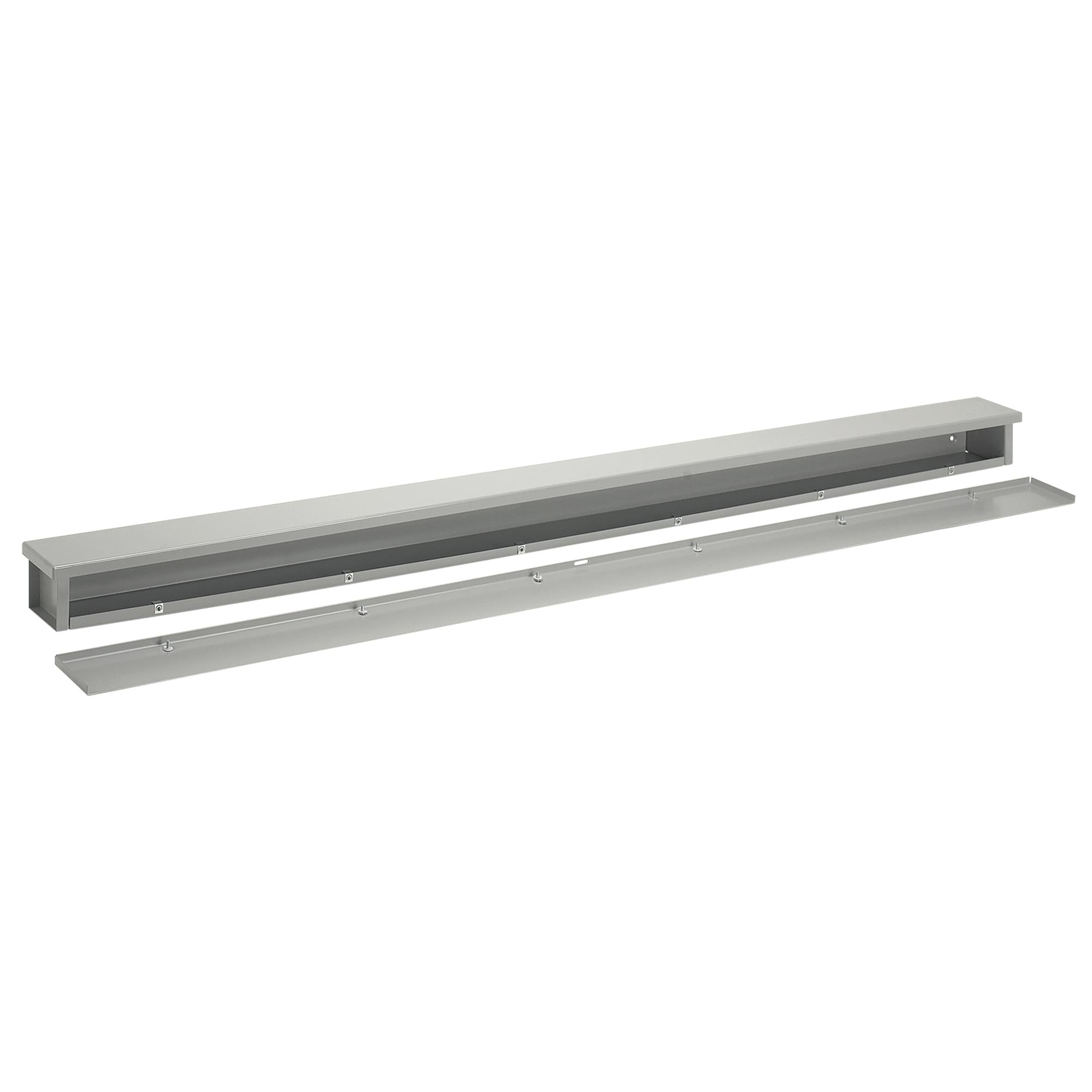

The NVENT HOFFMAN A8896RT screw-cover wiring trough, Type 3R, protects wire and cable distribution, junctions, and terminations in outdoor applications exposed to wet conditions. It features a slip-on removable cover and embossed mounting holes on the back. A Padlock Hasp Kit can be installed for increased security.

• Drip shield top and seam-free sides, front, and back
• Slip-on removable cover
• Embossed mounting holes on back of enclosure

Product Highlights

This steel wiring trough is suitable for power distribution applications and meets NEMA Type 3R standards. It has no gasketing or knockouts.

Product Information

Standard Information

• Brand: NVENT HOFFMAN
• Manufacturer Part Number: A8896RT
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: A8896RT
• Type: Trough
• Brand: nVent Hoffman
• Color: Gray
• Depth: 96 Inch
• Gauge: 14 AWG
• Width: 8 in
• Finish: ANSI 61 Gray Polyester Powder
• Height: 8 Inch
• Material: Steel
• Standard: CUL CSA C22.2 No. 26 Listed; File No. E27524; Raintight,IEC 60529, IP32,NEMA/EEMAC Type 3R,UL 870 Listed; File No. E27524; Raintight
• Enclosure: NEMA 3R, IP32
• Sub Brand: Hoffman
• Thickness: 1.9 mm
• Size: 8.00x8.00x96.00 in
• Applications: Power Distribution
• Color Coding: ANSI 61
• Manufacturer: nVent
• Country of Origin: Mexico
• Made in USA: No
• NEMA Rating: 3R
• Item Type: Trough
• Series: F40PT
• Cover Type: Slip-On Removable
• Applicable Standard: IEC 60529
• Constructional Feature: Raintight
• ROHS Compliant: True
• Item: Wiring Trough
• Knockouts: No
• Approval: UL 870, CUL, CSA C22.2
• UNSPSC: 39131714
• Standard & Approvals: UL 870/E27524, Raintight, cUL CSA C22.2 No. 26 Certified, RoHS Compliant
• Application: For applications subjected to moisture
• Bulletin Number: F40PT
• Product UPC: 78351013338
• Model: F40PT
• Product Category: Wiring Gutter/Trough
