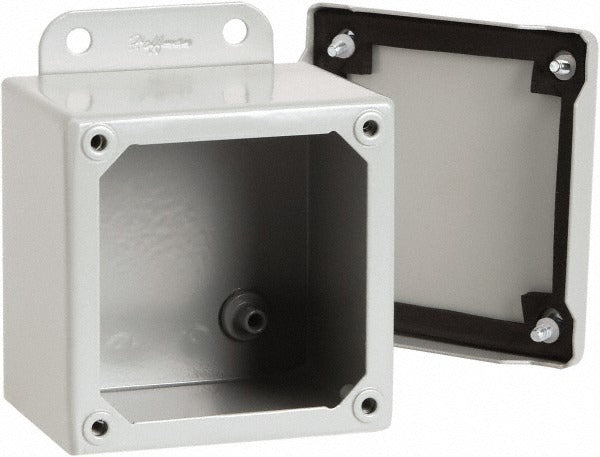

Nvent Hoffman A606SC Junction Box Nema 12 13 6x6x4

Product Description

The NVENT HOFFMAN A606SC is a steel junction box electrical enclosure rated for NEMA 12 and NEMA 13 environments. Built from 16-gauge steel with a gray polyester powder coat finish, it provides durable protection for electrical components in industrial and commercial settings. The enclosure measures 6 inches wide, 6 inches high, and 4 inches deep, making it suitable for compact wiring and terminal installations. It ships complete with an oil-resistant gasket, bonding provision, external wall-mounting brackets, and weld nuts. Licensed electricians and industrial maintenance technicians are the primary installers for this type of enclosure.

This enclosure is designed for use in industrial facilities, manufacturing environments, and commercial mechanical rooms where protection from dust, dirt, oil, and non-corrosive coolants is required. The NEMA 12 rating addresses dust and dripping non-corrosive liquids, while the NEMA 13 rating adds resistance to oil and coolant splash. It is appropriate for housing terminal blocks, junction wiring, control relays, and small electrical components in applications where a sealed, wall-mounted enclosure is needed.

Key Features

• 16-gauge steel construction with gray polyester powder coat finish for corrosion resistance
• NEMA 12 and NEMA 13 rated for protection against dust, dirt, oil, and non-corrosive coolant splash
• Screw flat cover type for secure, tool-accessed closure
• Includes oil-resistant gasket, bonding provision, external wall-mounting brackets, and weld nuts
• Listed to UL 50, UL 508A, UL 50E, and CSA C22.2 No. 94 standards
• Compact 6 x 6 x 4 inch footprint suitable for tight installation spaces

Compatibility

Designed as an OEM-style steel junction box enclosure suitable for NEMA 12 and NEMA 13 rated industrial and commercial electrical installations requiring a wall-mounted, screw-cover enclosure.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. Disconnect and lock out all power to the circuit before opening or mounting the enclosure. Secure the enclosure to a flat, structurally adequate surface using the included external wall-mounting brackets. Verify that the oil-resistant gasket is properly seated before closing the cover to maintain the NEMA rating.
