Nvent Hoffman A42H3608SSLP Wallmount Hinged with NEMA Clamps Type 4X, 42x36x8, Brushed, SS304

Product Description

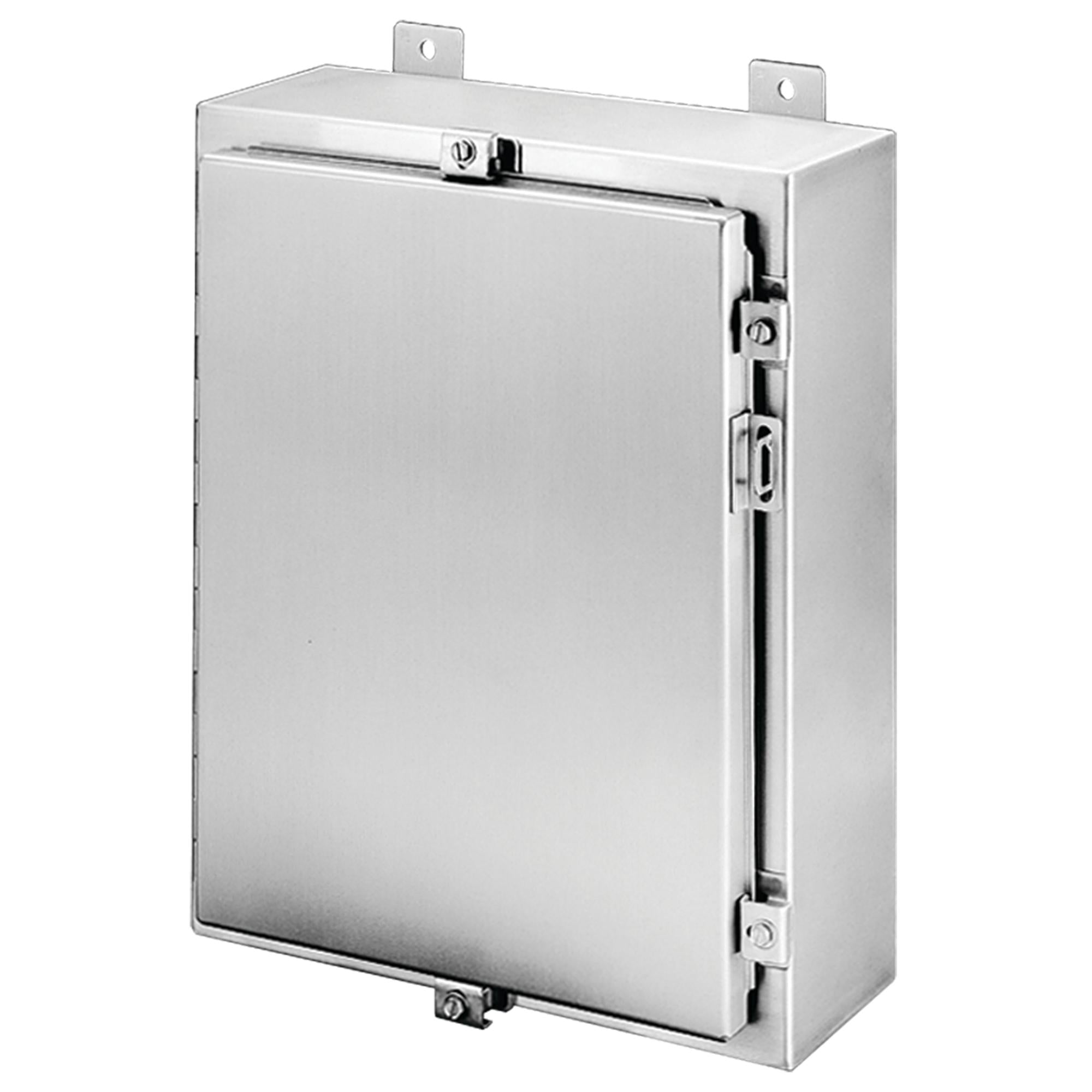

The NVENT HOFFMAN A42H3608SSLP is a wallmount hinged enclosure with NEMA clamps, designed as a Type 4X enclosure with dimensions of 42x36x8 inches. Constructed from brushed SS304 stainless steel, it is suitable for corrosive environments requiring a watertight seal. The enclosure features a seamless foam-in-place gasket and screw-down clamps for secure protection against contaminants.

• Constructed from 304 stainless steel with a brushed finish
• Features a seamless foam-in-place gasket for a watertight seal
• Equipped with screw-down clamps for secure closure

Product Highlights

This NEMA 4X enclosure provides reliable protection in corrosive environments, with a hinged design for easy access and secure sealing.

Product Information

Standard Information

• Brand: NVENT HOFFMAN
• Manufacturer Part Number: A42H3608SSLP
• Country of Origin: US

Technical Specifications

• Application: Corrosive Environments; Controls and Drives
• Size: 42.00x36.00x8.00 in
• Depth: 8 in
• Width: 36 in
• Finish: Brushed #4
• Height: 42 in
• Material: Stainless Steel 304
• IP Rating: IP66
• Data Pocket: Large
• NEMA Rating: NEMA 4X/IP66
• Steel Panel: A42P36
• Clamp Quantity: 8
• Protection Rating: NEMA Type 12
• Thickness: 1.98 mm
• Panel Size: 39.00 x 33.00 in
• Stainless Steel Panel: A42P36SS6
• Conductive Steel Panel: A42P36G
• Stainless Steel Type: 304
• Thickness (Imperial): 14 ga
• Modification Services: Yes
• Type: Single Door, Eight Lock, Gangable
• Brand: nVent Hoffman
• Gauge: 14 ga
• Sub Brand: Hoffman
• Cover Type: Continuous Hinge with Clamps
• Applications: For Indoor, Outdoor Corrosive Environments
• Mounting Type: Wall
• Series: A4S
• Lock: Hasp and Staple/Padlock
• Enclosure NEMA: 3/3R/4/4X/12/13, IP66
• Approval: UL 508A, CUL, CSA C22.2
• Applicable Standard: IEC 60529
• Number of Clamp: 8
• ROHS Compliant: True
• UNSPSC: 39121324
• Hinge Type: Continuous
• Latch: Screw-Down Clamps
• ECCN: EAR99
• Panel Size (Metric): 991 x 838 mm
