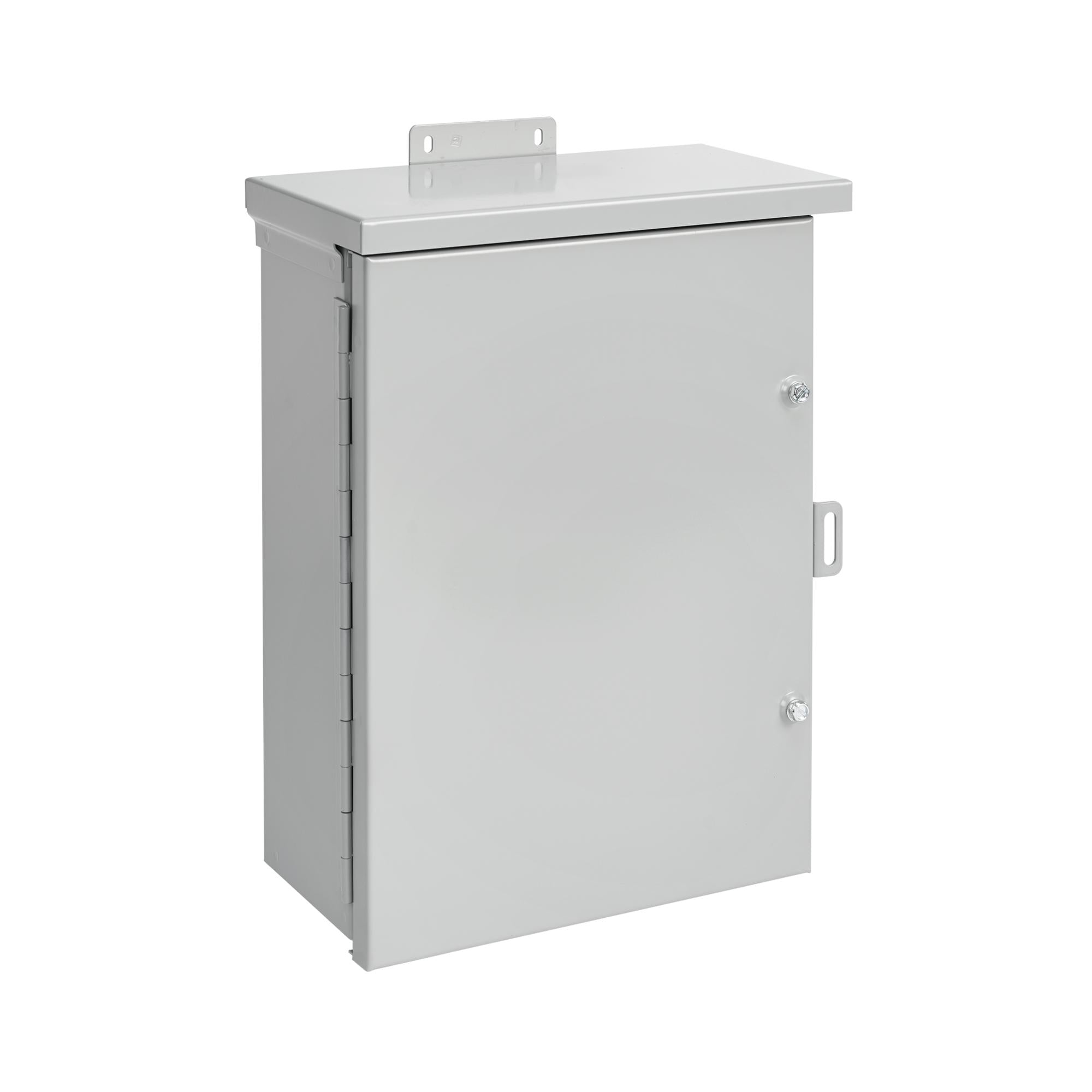

Nvent Hoffman A36R2412HCR Medium Drip-Shield Hinged-Cover Type 3R 36.00x24.00x12.00

Product Description

The NVENT HOFFMAN A36R2412HCR is a medium drip-shield hinged-cover, Type 3R enclosure designed to protect wiring and electrical components in outdoor applications. This steel enclosure measures 36.00x24.00x12.00 inches and provides protection from rain, sleet, snow, and dripping water. It features collar studs for optional panel mounting and a hasp and staple for padlocking.

• Drip shield top and seam-free sides, front, and back protect from rain, snow, or sleet
• 16-gauge plated steel continuous hinge has stainless steel pin
• Cover fastened securely with captive plated steel screws

Product Highlights

The A36R2412HCR enclosure is suitable for power distribution, controls, and drive applications requiring NEMA Type 3R protection.

Product Information

Standard Information

• Brand: NVENT HOFFMAN
• Manufacturer Part Number: A36R2412HCR
• Country of Origin: Mexico

Technical Specifications

• Application: Power Distribution; Controls and Drives
• Size: 36.00x24.00x12.00 in
• Color: Gray
• Depth: 12 in
• Panel: A36P24
• Width: 24 in
• Finish: Polyester Powder Painted
• Height: 36 in
• Material: Mild Steel
• IP Rating: IP32
• Color Code: ANSI 61
• NEMA Rating: 3R
• Type Number: Type 3R
• Aluminum Panel: A36P24AL
• Perforated Panel: A36P24PP
• Protection Rating: NEMA Type 3R
• Modification Services: Yes
• Body Thickness: 1.9 mm
• Door Thickness: 1.9 mm
• Type: Single Door, Medium
• Brand: nVent Hoffman
• Gauge: 16
• Standard: 50E Listed,CUL Listed Per CSA C22.2 No 94,File No. E27567,IEC 60529,IP32,NEMA/EEMAC Type 3R,Type 3R,Type 3R File No. E27567,UL 50
• Enclosure: 3R
• Sub Brand: Hoffman
• Cover Type: Continuous Hinge
• Applications: Enclosures have a Size Range of 16 x 12 x 6 in to 60 x 36 x 12 in and Meet Basic Functionality Requirements for Applications that Require Protection from Rain, Sleet, Snow or Dripping Water
• Mounting Type: Wall
• Series: A3M
• Lock: Hasp and Staple/Padlock
• Panel Size: 21 in W x 33 in H
• Enclosure NEMA: 3R, IP32
• Material Specification: 16/14 Gauge
• Approval: UL 50/50E, CUL, CSA C22.2
• Applicable Standard: IEC 60529
• ROHS Compliant: True
• Item: Hinge-Cover,Medium,Type 3R,36.00x24.0
• Features: Weather-Resistant, Except Dust
• For Use With: For Use With Mfr. Model Number A36P24AL, A36P24, A36P24PP
• NEMA Enclosure Type: 3R
• Nominal Enclosure Width: 24 in
• Closure Method: Captive Screws
• Interior Panel: 32FT55
• Solid / Clear Cover: Solid
• Enclosure Cover Type: Hinged
• Enclosure NEMA Rating: 3R
• Material of Enclosure: Carbon Steel
• Metallic / Non-Metallic: Metallic
• Enclosure Cover Features: Hasp and Staple for Padlocking
• Knockouts / No Knockouts: No Knockouts
• Item - Electrical Enclosure: Enclosure
• Cover Mounting: Hinged Cover
• Approximate Depth: 12 in
• Approximate Height: 36 in
• Approximate Width: 24 in
• Manufacturer Part Number: A36R2412HCR
• UPC Code: 78351038800
