Nvent Hoffman A363012LP Enclosure with Clamps LP Type 12, 36x30x12

Product Description

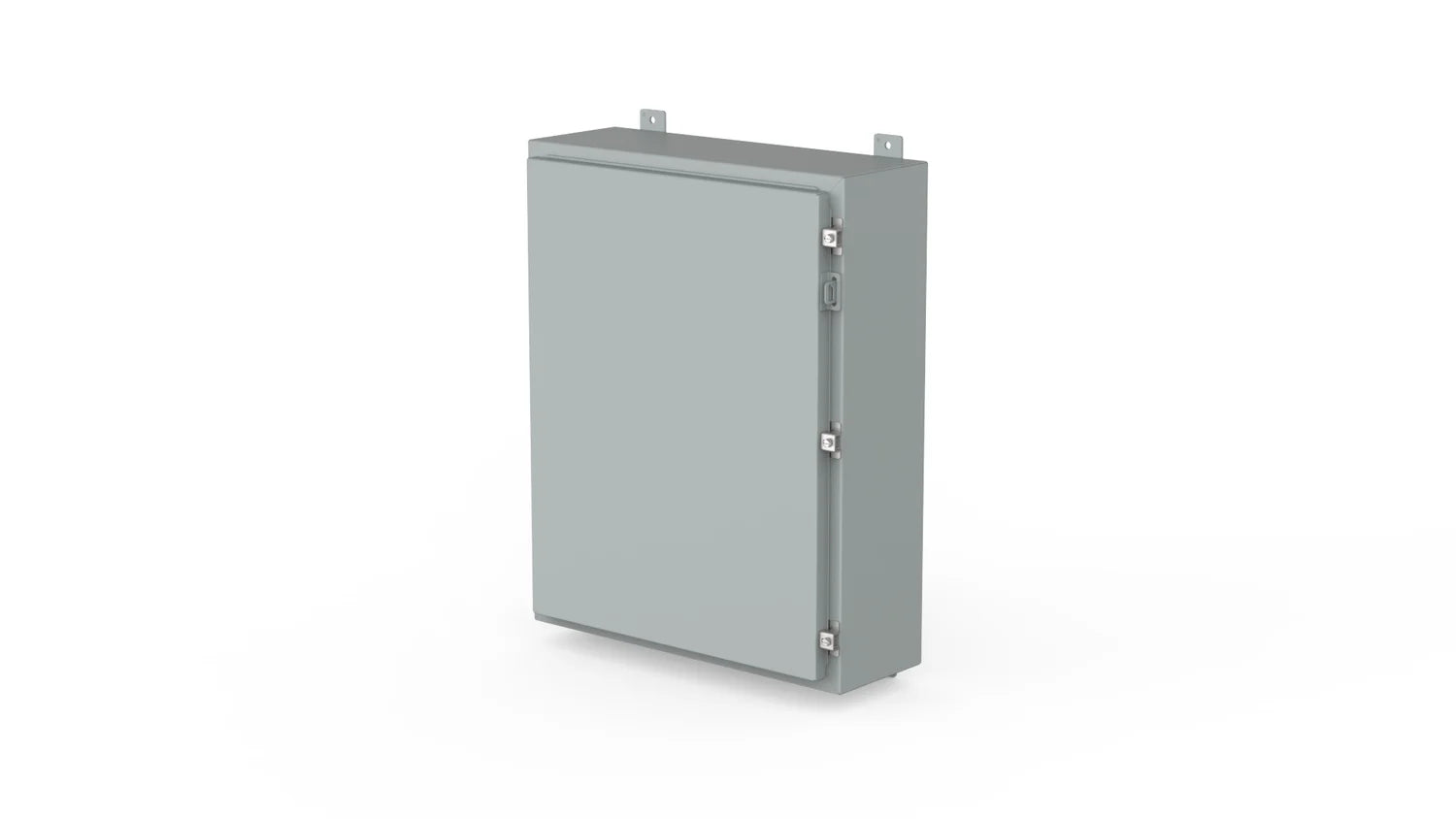

The NVENT HOFFMAN A363012LP is a continuous hinge enclosure with clamps, LP Type 12, constructed of mild steel. Designed for applications needing increased control visibility with a bright white interior, it features a padlocking hasp and staple for security and screw-down clamps for secure closure. It is finished with a gray powder coating.

• Seams are continuously welded and ground smooth
• Features external wall-mounting brackets for easy installation

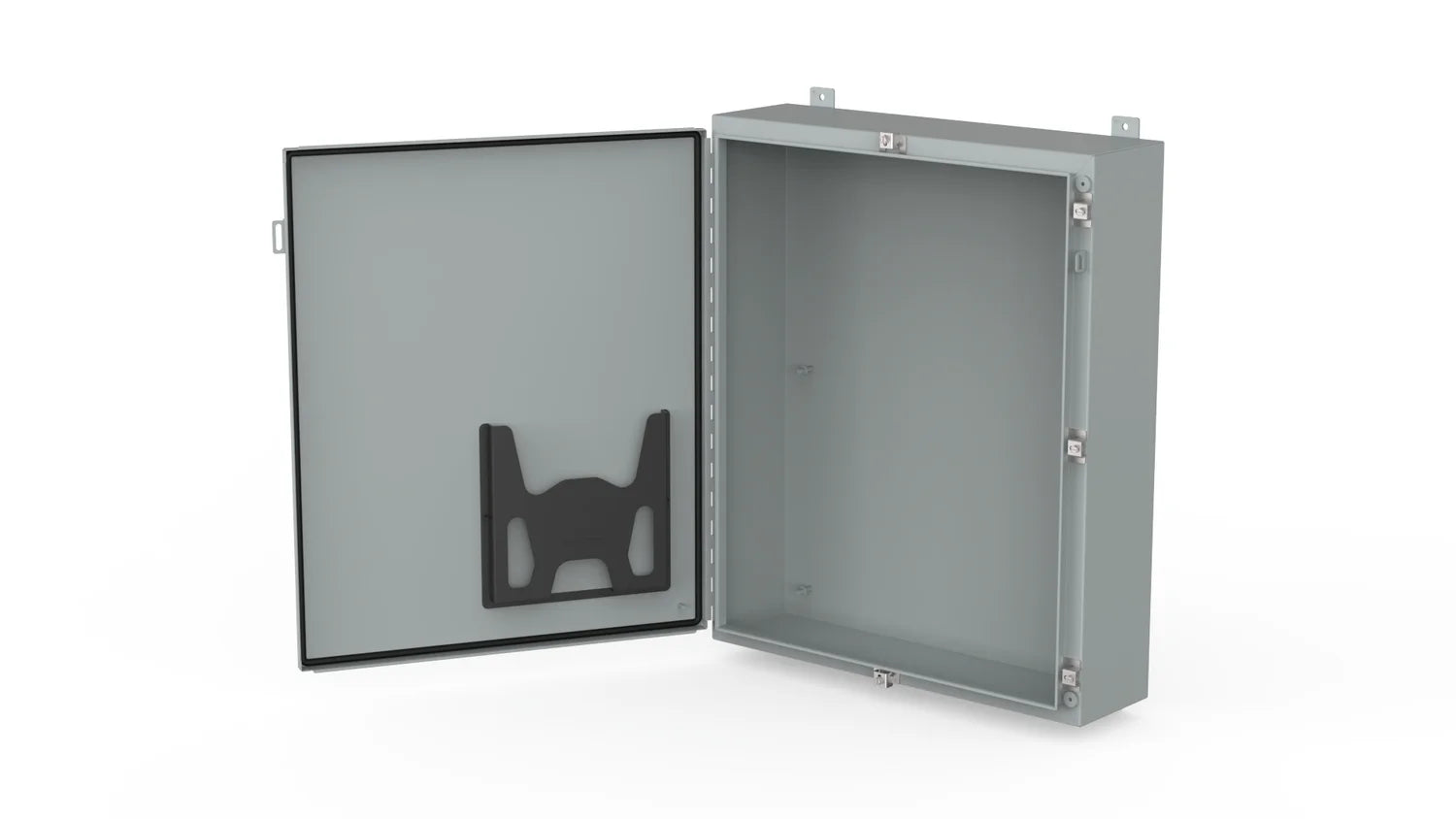

• Offers a removable door with continuous hinge

Product Highlights

This NVENT HOFFMAN enclosure is ideal for industrial environments, offering protection and easy access.

Product Information

Standard Information

• Brand: NVENT HOFFMAN
• Manufacturer Part Number: A363012LP
• Country of Origin: United States

Technical Specifications

• MPN: A363012LP
• Size: 36.00x30.00x12.00 in
• Depth: 12 in
• Panel: A36P30
• Width: 30 in
• Finish: Powder Coated
• Height: 36 in
• Material: Mild Steel
• IP Rating: IP65
• Data Pocket: Large
• NEMA Rating: 12, 13
• Type Number: Type 13
• Clamp Quantity: 2
• Exterior Color: Gray
• Interior Color: White
• Harmonized Code: 7326908688
• Conductive Panel: A36P30G
• Country of Origin: US
• Protection Rating: NEMA Type 12
• Thickness: 1.9 mm
• Exterior Color Code: ANSI 61
• Panel Size (Imperial): 33.00 x 27.00 in
• Type: Two Lock, Single Door
• Brand: nVent Hoffman
• Gauge: 14 and 16
• Standard: 13,CSA,CUL Listed Per CSA C22.2 No. 94,File No. 42186: Type 12,File No. E61997,IEC 60529,IP65,NEMA/EEMAC Type 12 And 13,Type 12,UL 508A Listed
• Sub Brand: Hoffman
• Body Gauge: 14
• Cover Type: Continuous Hinged with Clamp
• Applications: For Applications Requiring a Bright White Interior to Increase Control Visibility
• Gasket: Neoprene
• Series: A12
• Features: Mounting Holes
• Mounting: Wall
• Knockouts: No
• Standards: CSA Certified, cUL, IEC, UL Listed
• Product Type: Enclosure
• Basic Material: Metallic
• Closure Method: Screwdown Clamps
• Interior Panel: 32FT57
• Solid / Clear Cover: Solid
• Enclosure Cover Type: Hinged
• Enclosure NEMA Rating: 12, 13
• Material of Enclosure: Carbon Steel
• Metallic / Non-Metallic: Metallic
• Nominal Enclosure Width: 30 in
• Enclosure Cover Features: Clamps
• Knockouts / No Knockouts: No Knockouts
• Item - Electrical Enclosure: Enclosure
• Country of Origin (subject to change): United States
• Catalog Number: A363012LP
• Manufacturer: nVent
• Made in USA: Yes
• Application: Controls and Drives
• Item Type: Mild Steel Wall Mounted Industrial Enclosures
• Lock: Hasp and Staple/Padlock
• Mounting Type: Wall
• Panel Size (Dimensions): 27 in W x 33 in H
• Enclosure: NEMA 12/13, IP65
• Approval: UL 508A, CUL, CSA C22.2
• Applicable Standard: IEC 60529
• Includes: (2) Clamp, Thermoplastic Data Pocket, Padlocking Hasp and Staple
• ROHS Compliant: True
• ECCN: EAR99
• UNSPSC: 39121324
• Hinge Type: Continuous
• Latch: Screw-Down Clamps
• IP/NEMA Rating: IP65, NEMA 3R, NEMA 12, NEMA 13, NEMA 4
• Special Program: Hoffman On Demand
• Article Number: 28540
• Color Code: ANSI 61
• Thickness (Dimensions): 14ga
• Standard Packaging Quantity: 1
• Packing Quantity: 1
