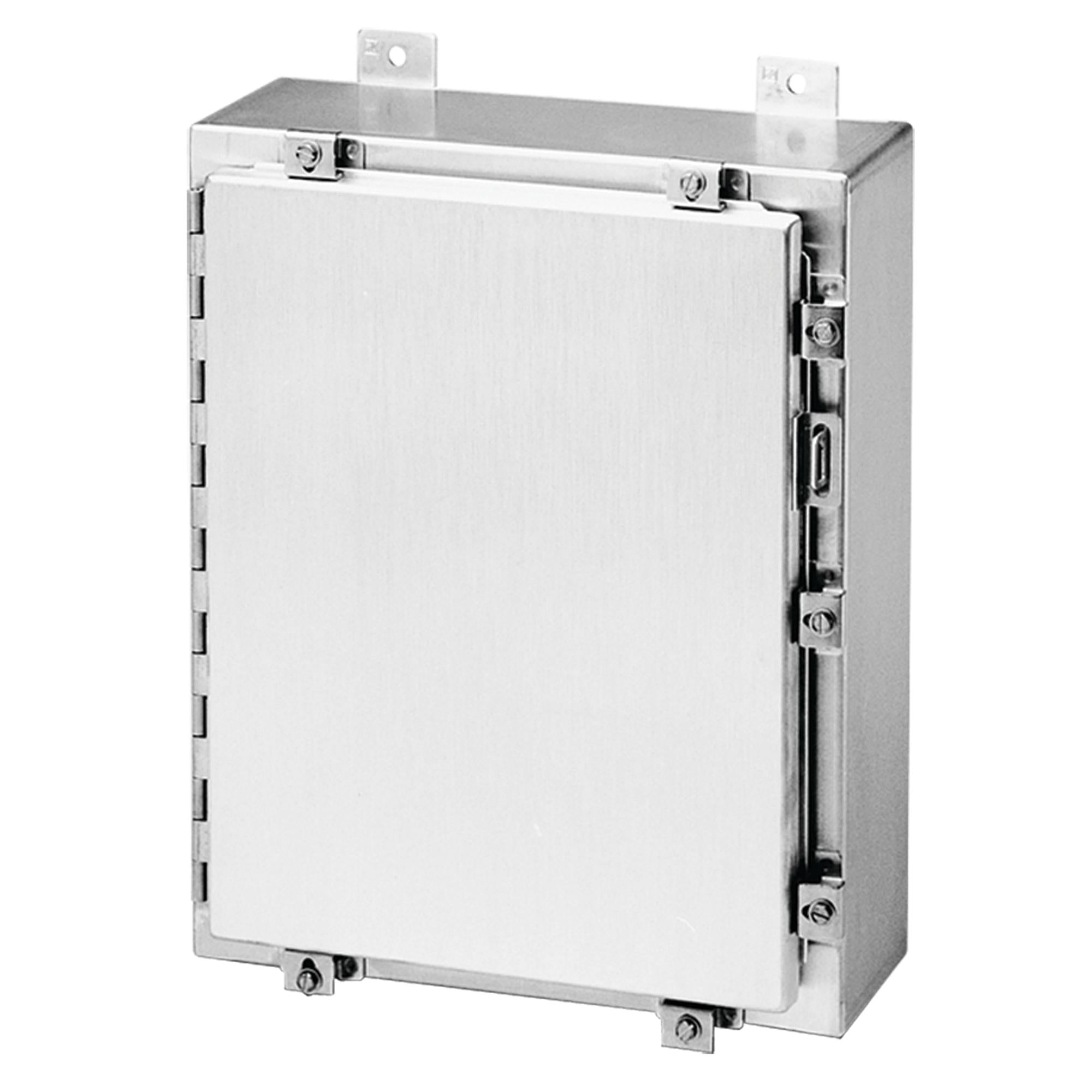

Nvent Hoffman A24H2408ALLP Continuous Hinge with Clamps, Type 4X, 24 inches x 24 inches x 8 inches, Aluminum

Product Description

The NVENT HOFFMAN A24H2408ALLP continuous hinge aluminum enclosure with clamps is a lightweight, Type-4X solution with a hinged cover secured by stainless steel clamps and screws. Ideal for protecting components and controls in corrosive indoor or outdoor environments, such as petrochemical, sewage, and marine settings. The enclosure features a brushed finish and an oil-resistant gasket.

• Lightweight, Type 4X hinged enclosure
• Seams continuously welded and ground smooth
• Stainless steel door clamp assemblies

Product Highlights

Durable aluminum enclosure with continuous hinge and stainless steel clamps for corrosive environments.

Product Information

Standard Information

• Brand: NVENT HOFFMAN
• Manufacturer Part Number: A24H2408ALLP
• Country of Origin: Mexico

Technical Specifications

• Type: Junction Box
• Brand: nVent Hoffman
• Sub Brand: Hoffman
• Depth: 8 in.
• Width: 24 in
• Finish: Brushed
• Height: 24 in.
• Material: Aluminum
• Standard: 12,13,4,4X,CSA File No. 42186: Type 4,CUL Listed Per CSA C22.2 No 94,File No. E61997,IEC 60529,IP66,Meets NEMA Type 3RX Requirements,NEMA/EEMAC Type 3R,Type 3R,UL 508A Listed
• Thickness: 0.08 in
• Applications: Controls and Drives, Corrosive Environments
• Mounting Type: Wall
• Catalog Number: A24H2408ALLP
• Manufacturer: nVent
• Country of Origin: Mexico
• Made in USA: No
• NEMA Rating: 4X
• UPC: 783510273002
• GTIN: 00783510273002
• Item Type: Aluminum Wall Mounted Industrial Enclosures
• Cover Type: Solid
• Lock: Hasp and Staple/Padlock
• Series: A4A
• Enclosure NEMA: 3R/4/4X/12/13, IP66
• Mounting: Wall
• Service Type: Indoor/Outdoor
• Approval: UL 508A, CUL, CSA C22.2
• Applicable Standard: IEC 60529
• ROHS Compliant: True
• Material Specification: Type 5052 H32
• IP Rating: 66
• Enclosure Environment Rating: Outdoor-Indoor
• Enclosure Lock Type: Padlocking
• Enclosure Hinge Type: Continuous Hinge
• Enclosure Latch Type: Clamp
• Enclosure Composition: Aluminum
• Enclosure Door Type: Solid
• Enclosure Mount Type: Wall Mount
• Component: Aluminum Enclosure
• Enclosure Number of Doors: 1 Door
• ECCN: EAR99
• Nominal Enclosure Width: 24 in
• Metallic / Non-Metallic: Metallic
• Closure Method: Padlockable Hasp
• Solid / Clear Cover: Solid
• Enclosure Cover Type: Hinged
• Enclosure NEMA Rating: 12, 3R, 4, 4X
• Material of Enclosure: Aluminum
• Enclosure Cover Features: Hasp and Staple for Padlocking
• Knockouts / No Knockouts: No Knockouts
• Item - Electrical Enclosure: Enclosure
• Approximate Depth: 8 in
• Approximate Height: 24 in
• Approximate Width: 24 in
• Cover Locking: Latch
• Cover Mounting: Hinge, Continuous
• Special Features: Data Pocket
• Cover Latching: Screw Clamp, Padlock Hasp
• Optional Panel: A24P24
• Wall Mounting: Wall Mounting
• Metal Gauge: 12 ga
• Panel Mounting Stud Quantity: 4
• Clamp Quantity: 5
• Data Pocket Size: 6.00 x 6.00in
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Color: Aluminum
• Gasket: Neoprene
• Knockouts: No
• Material Thickness: 0.08 in.
• Enclosure Height: 24"
• Enclosure Width: 24"
• Enclosure Depth: 8"
