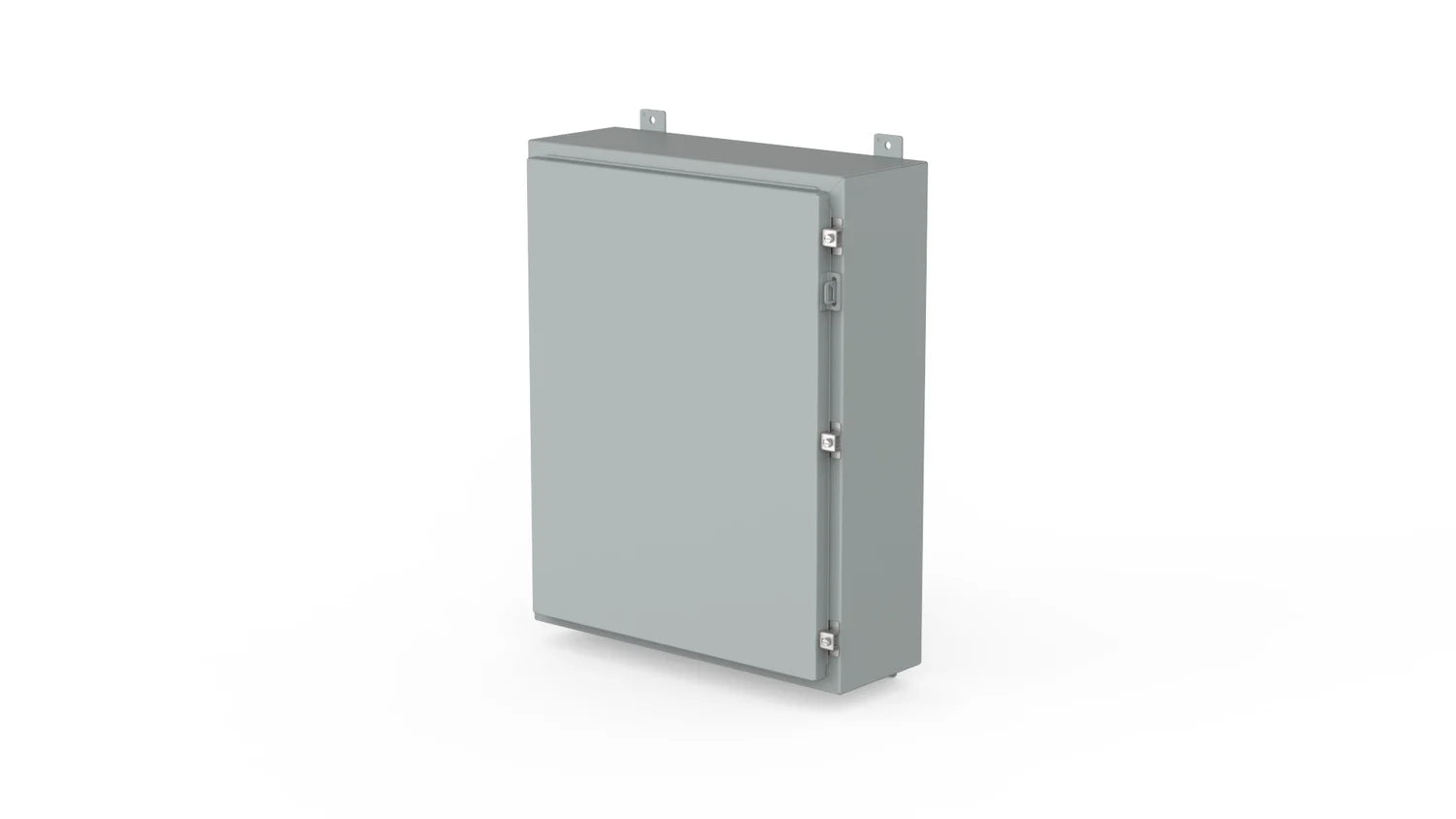

Nvent Hoffman A202008LP Enclosure 20 x 20 x 8 in

Product Description

The NVENT HOFFMAN A202008LP is a continuous hinge enclosure with clamps, ideal for applications needing increased control visibility. This gray, mild steel enclosure measures 20x20x8 inches and features a powder-coated finish. It includes a padlocking hasp and staple for security and screw-down clamps for secure closure.

• Seams are continuously welded and ground smooth.
• Features external wall-mounting brackets for easy installation.
• Offers a removable door with a continuous hinge.

Product Highlights

This NVENT HOFFMAN enclosure provides a secure, dust-resistant housing with a bright white interior for enhanced visibility.

Product Information

Standard Information

• Brand: NVENT HOFFMAN
• Manufacturer Part Number: A202008LP
• Country of Origin: United States

Technical Specifications

• MPN: A202008LP
• Depth: 8 in
• Width: 20 in
• Finish: Powder Coated
• Height: 20 in
• Material: Mild Steel
• IP Rating: IP65
• Data Pocket: Small
• NEMA Rating: 12
• Type Number: Type 13
• Clamp Quantity: 2
• Exterior Color: Gray
• Interior Color: White
• Conductive Panel: A20P20G
• Country of Origin: US
• Protection Rating: NEMA Type 12
• Thickness: 1.9 mm
• Exterior Color Code: ANSI 61
• Panel Size: 17.00 x 17.00 in
• Thickness (Imperial): 14 ga
• Catalog Number: A202008LP
• Brand: nVent Hoffman
• Manufacturer: Hoffman
• Type: Gangable, Single Door, Double Lock
• Standard: 13,CSA,CUL Listed Per CSA C22.2 No. 94,File No. 42186: Type 12,File No. E61997,IEC 60529,IP65,NEMA/EEMAC Type 12 And 13,Type 12,UL 508A Listed
• Sub Brand: Hoffman
• Body Gauge: 16
• Cover Type: Continuous Hinge with Clamps
• Applications: Controls and Drives
• Mounting Type: Wall
• Gasket: Neoprene
• Series: A12
• Features: Mounting Holes
• Closure Method: Screwdown Clamps
• Interior Panel: 32FT35
• Solid / Clear Cover: Solid
• Enclosure Cover Type: Hinged
• Enclosure NEMA Rating: 12, 13
• Material of Enclosure: Carbon Steel
• Metallic / Non-Metallic: Metallic
• Nominal Enclosure Width: 20 in
• Enclosure Cover Features: Clamps
• Knockouts / No Knockouts: No Knockouts
• Lock: Hasp and Staple/Padlock
• Panel Size (Metric): 432 x 432 mm
• Approval: UL 508A, CUL, CSA C22.2
• Applicable Standard: IEC 60529
• Number of Clamp: 2
• ROHS Compliant: True
• Color Code: ANSI 61
• Thickness (Metric): 1.9 mm
• Enclosure: NEMA 12/13, IP65
