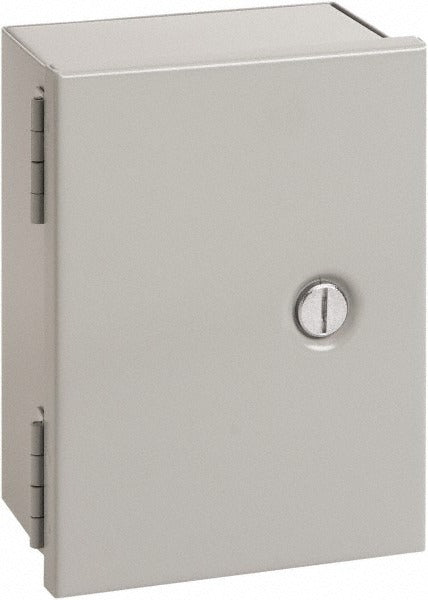

Nvent Hoffman A14N126 Junction Box Nema 1 Steel Enclosure

Product Description

The NVENT HOFFMAN A14N126 is a NEMA 1 steel junction box enclosure designed for indoor electrical installations where basic protection against contact with enclosed equipment is required. Built from 16-gauge steel with a gray polyester powder coat finish, this enclosure measures 14 inches high, 12 inches wide, and 6 inches deep. It ships with butt hinges, latches, and weld nuts included. Electricians and electrical contractors use this enclosure for housing wiring connections, terminal blocks, and control components in dry indoor environments. The hinged flat cover provides easy field access without removing fasteners on every service call.

This enclosure is suited for light commercial and residential electrical applications in dry indoor locations. Typical installations include junction and pull boxes in mechanical rooms, electrical closets, and light industrial spaces where a NEMA 1 rating is code-sufficient. The 6-inch depth accommodates standard terminal strips and wire routing. The 14-inch height and 12-inch width offer enough interior real estate for moderate wiring density. Licensed electricians performing rough-in or finish electrical work are the primary installers.

Key Features

• 16-gauge steel construction for rigid, durable enclosure body
• Gray polyester powder coat finish provides corrosion resistance in dry environments
• Hinged flat cover with integrated latches for tool-accessible service entry
• Butt hinges, latches, and weld nuts included — no additional hardware required out of box
• NEMA 1 rated for indoor, dry-location use per UL 50 and UL 50E
• cUL Listed to CSA C22.2 No. 40 for Canadian installations

Compatibility

Designed as an OEM-style NEMA 1 junction box enclosure for indoor dry-location electrical installations requiring compliance with UL 50, UL 50E, and CSA C22.2 No. 40 standards.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and applicable local codes. De-energize all circuits before opening or wiring the enclosure. This enclosure is rated for dry indoor use only — do not install in wet, damp, or outdoor locations where a higher NEMA rating is required. Secure the enclosure to a solid structural surface using the weld nuts provided.
