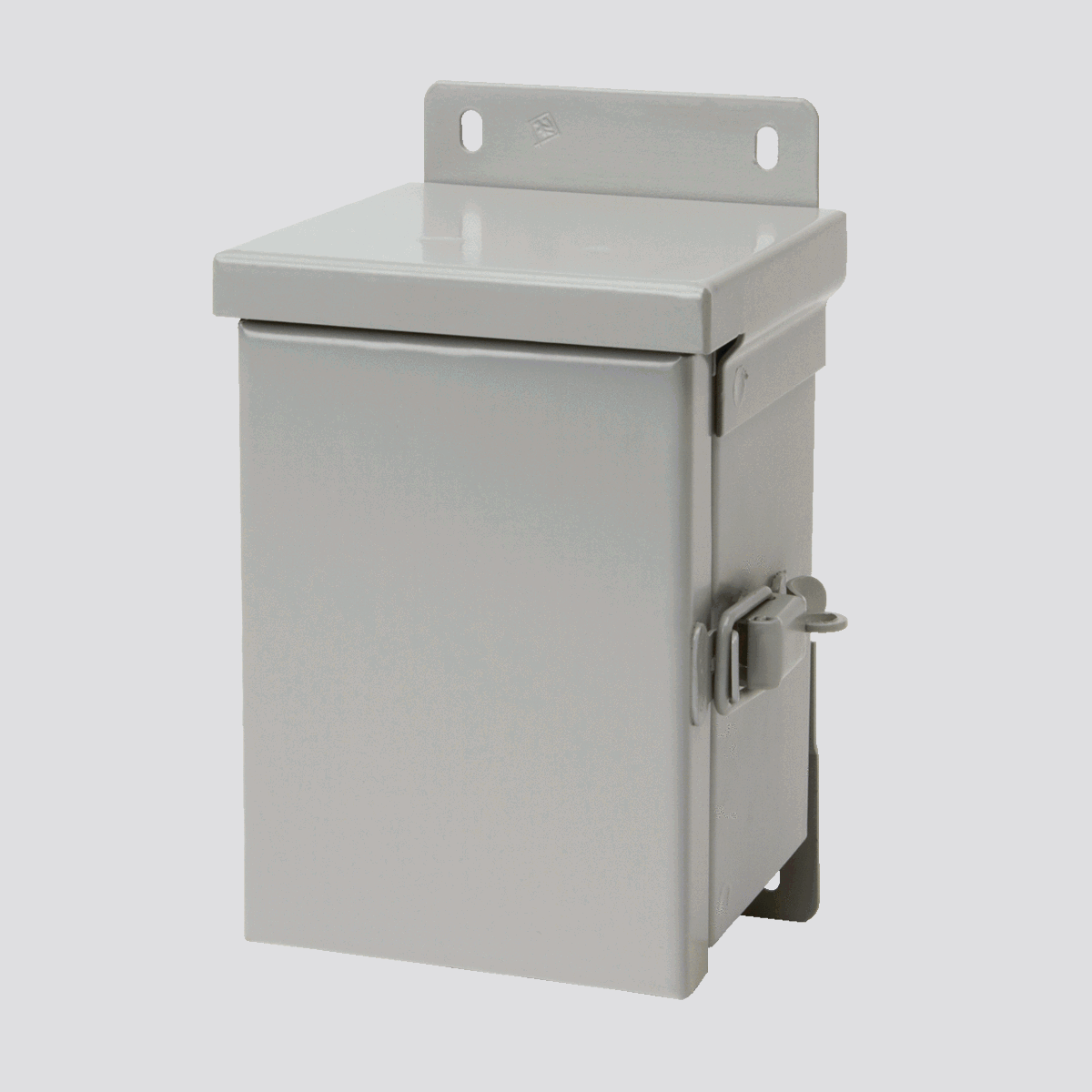

nVent HOFFMAN A12R126HCR Hinge-Cover Small Drip-Shield Enclosure Type 3R 12.00x12.00x6.00

Product Description

The nVent HOFFMAN A12R126HCR is a small drip-shield hinged-cover enclosure designed to protect electrical components in outdoor settings from rain, sleet, and snow. This enclosure measures twelve inches in length, twelve inches in width, and six inches in depth. It is built with a NEMA 3R rating, making it suitable for various installation environments.

• Constructed from mild steel and powder-coated for durability.
• Features a hinged cover with provisions for padlocking.
• Knockouts enable easy cable entry for flexible installations.

Product Highlights

This enclosure is ideal for power distribution applications and control systems. It includes a draw-pull catch for padlocks, enhancing security for critical electrical components.

Product Information

Standard Information

• Catalog Number: A12R126HCR
• Manufacturer: nVent

Technical Specifications

• Color: Gray
• Material: Mild Steel
• NEMA Rating: 3R
• Dimensions: 12 inches x 12 inches x 6 inches
• Finish: Powder Coated
• Lock Type: Draw Pull Catch Padlock
• Panel Size: 10-1/4 inches x 10-1/4 inches
• Cable Entry: (3) 3/4 to 1 inch, (2) 1/2 to 3/4 inch knockout bottom
