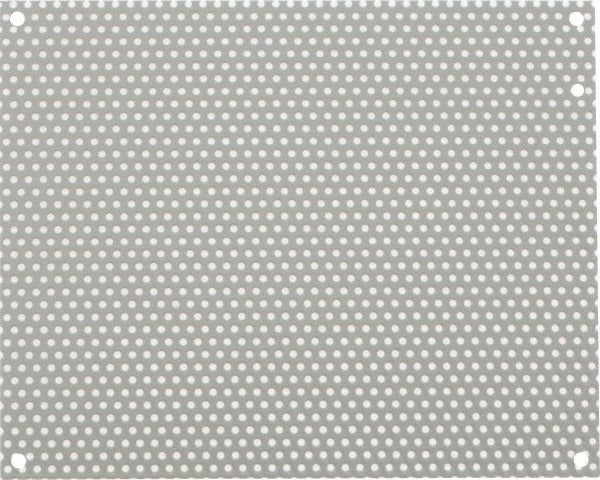

Nvent Hoffman A12N10PP Perforated Enclosure Panel Steel

Product Description

The NVENT HOFFMAN A12N10PP is a perforated steel mounting panel designed to fit inside NVENT HOFFMAN electrical enclosures. Manufactured from 16-gauge steel with a powder coat finish, it provides a rigid, grounded mounting surface for DIN rail, terminal blocks, and other electrical components. The panel ships with self-tapping screws for straightforward installation. At 1.1 pounds, it is a lightweight but structurally sound component suited for panel layout work inside NEMA 1 and NEMA 3R-rated enclosures. Electricians and panel builders working on control wiring, low-voltage distribution, or general electrical enclosure builds will find this panel a direct-fit solution.

This panel is sized for use with 12-inch by 10-inch NVENT HOFFMAN enclosure boxes. The outside dimensions measure 8.25 inches wide by 10.25 inches tall, allowing clearance for proper fit inside the enclosure interior. The perforated pattern allows airflow and simplifies fastener placement without drilling. This panel is appropriate for residential, light commercial, and industrial electrical enclosure applications where an organized, code-compliant interior mounting surface is required.

Key Features

• 16-gauge steel construction for rigid component mounting
• Powder coat finish for corrosion resistance
• Perforated panel design allows flexible fastener placement and airflow
• Includes self-tapping screws for installation
• Meets NEMA 1 and NEMA 3R enclosure standards
• Listed to UL 50, UL 50E, and cUL to CSA C22.2 No. 40; meets IEC 60529 IP30 rating

Compatibility

Designed for use with NVENT HOFFMAN enclosures A12N104, A12N106, and A12R106HCR.

Installation Notes

Installation should be performed by a licensed electrician following applicable NEC requirements. De-energize the enclosure and verify the absence of voltage before beginning any interior panel work. Secure the panel using the included self-tapping screws at the designated mounting points inside the enclosure. Do not overtighten fasteners, as this can strip the panel material or distort alignment.
