nVent HF1024414 Hoffman IP54 10 In FF 24V

Product Description

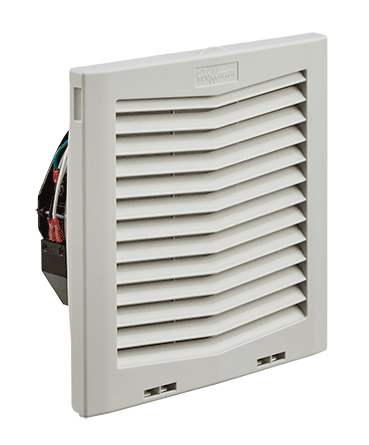

The nVent Hoffman HF1024414 is a filter fan designed for efficient cooling in control panels. This unit operates at 24 VDC with a power rating of 21.1 watts. It delivers an airflow rate of 159 cubic feet per minute (cfm) and features a side mount design. The fan operates at 3750 revolutions per minute (rpm) with a sound level of 53/56 dB, ensuring quiet operation. Its construction meets NEMA 12/IP54 standards, making it suitable for various industrial environments.

• Easy click-fit installation requires no tools.
• Opens easily for quick filter changes.
• Side-mounted design optimized for compact spaces.

Product Highlights

The fan features a hinged grille for easy access and an ABS plastic grille material for durability.

Product Information

Standard Information

• Manufacturer: nVent
• Part Number: HF1024414

Technical Specifications

• Air Flow Rate: 159 cfm
• Amperage Rating: 0.88 A
• Application: Industrial Automation, Automotive Assembly, Package Handling Equipment, Food and Beverage Process Controls, Wind Energy Systems Applications
• Dimensions: 10.13 in H x 10.14 in W x 5.18 in D
• Enclosure: NEMA 12/IP54
• Grille Material: ABS
• Mounting Type: Side
• Power Rating: 21.1 W
• Series: MCLF
• Sound Level: 53/56 dB
• Speed: 3750 rpm
• Voltage Rating: 24 VDC
• Standards/Approvals: cUL Listed, UL File No. E482010, CE/EAC Certified, RoHS Compliant
