nVent HF1016414 Hoffman IP54 10 In FF 115V 7035..

Product Description

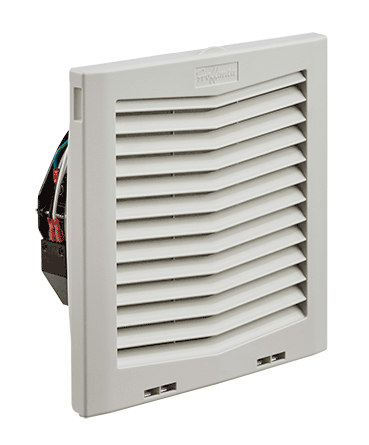

The nVent Hoffman HF1016414 Filter Fan is designed for use in NEMA 12/IP54 enclosures. This model operates at 115 VAC with an amperage rating of 0.38/0.36 A. It effectively cools environments that require controlled airflow, featuring a noise level between 53 and 56 dB and an airflow rate of 159 cfm.

• Quick installation with click-fit design
• Easy access to filter for maintenance
• Sturdy ABS grille material

Product Highlights

This filter fan is optimal for industrial and commercial applications where temperature control is critical. Its side mount design and compact dimensions make it suitable for various enclosures.

Product Information

Standard Information

• Manufacturer: nVent
• Manufacturer Part Number: HF1016414

Technical Specifications

• Air Flow Rate: 159 cfm
• Amperage Rating: 0.38/0.36 A
• Dimensions: 10.13 in H x 10.14 in W x 4.68 in D
• Enclosure: NEMA 12/IP54
• Grille Material: ABS
• Power Rating: 35/32 W
• Sound Level: 53/56 dB
• Speed: 2700/3200 rpm
• Voltage Rating: 115 VAC
• Series: MCLF
