nVent HF1016413 Hoffman IP54 10 In FF 115V 9011 78351034286

Product Description

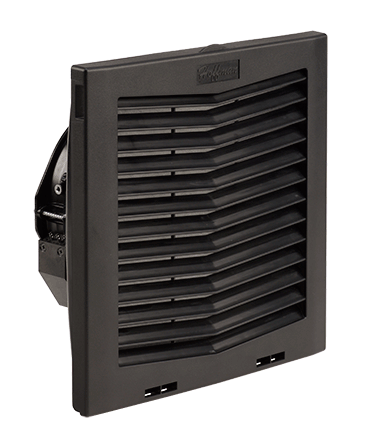

The nVent Hoffman Filter Fan, model HF1016413, is designed for effective thermal management in various applications. This filter fan operates at 115 VAC, with an amperage rating of 0.38/0.36 A, ensuring reliable performance. With a high airflow rate of 159 cfm, it effectively cools enclosed systems.

• Click fit design for fast installation
• Easy filter replacement with hinged grille
• NEMA 12/IP54 rated for protection

Product Highlights

This filter fan offers a side mount installation. It utilizes an ABS grille and operates at a noise level of 53/56 dB, making it suitable for industrial environments.

Product Information

Standard Information

• Manufacturer: nVent
• Manufacturer Part Number: HF1016413

Technical Specifications

• Air Flow Rate: 159 cfm
• Amperage Rating: 0.38/0.36 A
• Application: Industrial Automation, Automotive Assembly, Package Handling Equipment, Food and Beverage Process Controls, Wind Energy Systems
• Dimensions: 10.13 in H x 10.14 in W x 4.68 in D
• Enclosure: NEMA 12/IP54
• Grille Material: ABS
• Mounting Type: Side
• Power Rating: 35/32 W
• Sound Level: 53/56 dB
• Voltage Rating: 115 VAC
• Speed: 2700/3200 rpm
• Standards/Approvals: cUL Listed, UL File No. E482010, CE/EAC Certified
