Nvent GRC181V Erico C Mold Horiz. #2 Cable to Vertical 3/4 inches Cu Grd Rod

Product Description

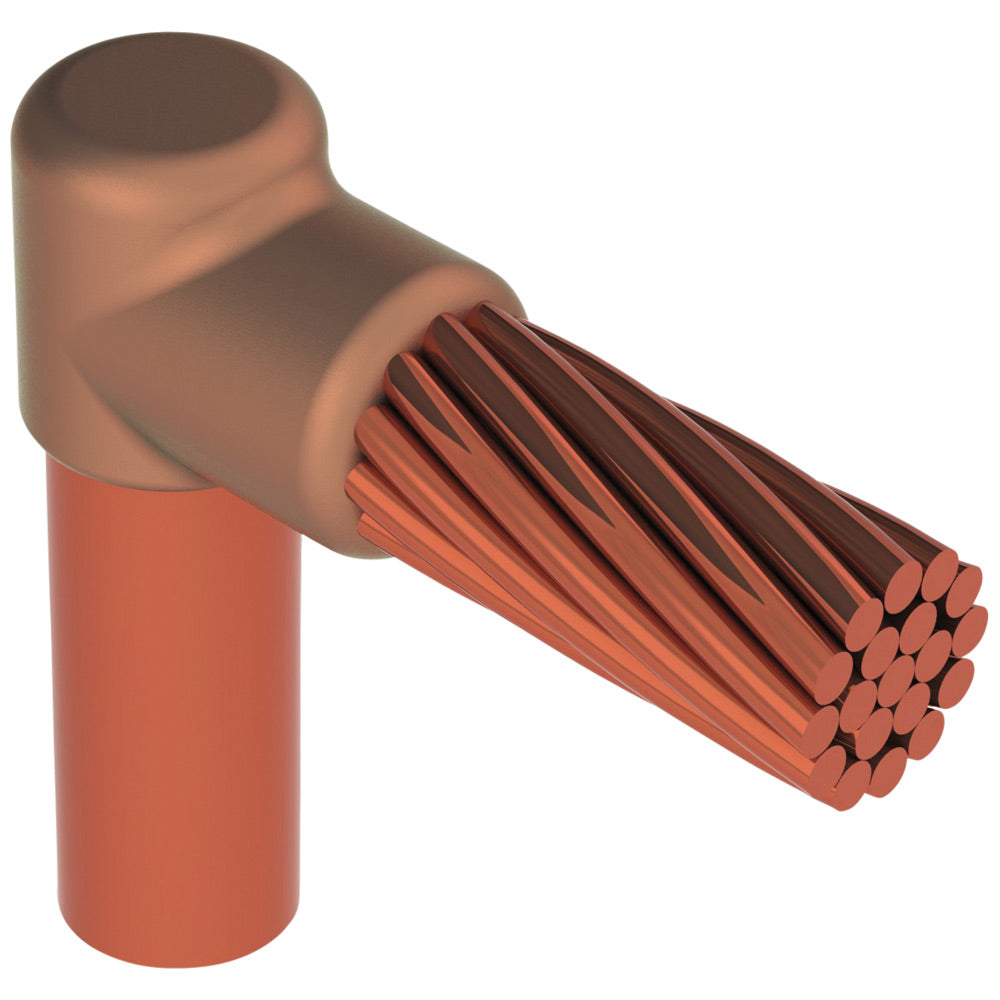

The nVent ERICO CADWELD® GRC181V weld metal mold is designed for creating connections from 2 AWG concentric conductors to 3/4" ground rods. This Type GR mold forms a permanent, low-resistance connection with the same current capacity as the conductor. It is suitable for vertical ELL horizontal cable connections and uses a C mold price key and L160 handle clamp.

• Forms a permanent, low resistance connection
• Provides a molecular bond
• nVent ERICO CADWELD® exothermic connections are rated with the same current capacity as the conductor

Product Highlights

Creates permanent, molecular bond connections rated to the conductor's current capacity. Ideal for facility electrical, lightning, solar, telecom, utility, and wind power protection.

Product Information

Standard Information

• Brand: nVent
• Manufacturer Part Number: GRC181V

Technical Specifications

• Application: Facility Electrical Protection, Lightning Protection, Solar Power, Telecom, Utility and Wind Power Applications
• Conductor Size: 2 AWG Concentric
• Connection Type: Cable to Ground Rod/Other Rounds
• Handle Clamp: L160
• Manufacturer Part Number: GRC181V
• Material: Copper/Graphite
• Mold Price Key: C
• Rod Size: 3/4 in
• Specifications: 0.292 in OD Conductor, Vertical ELL Horizontal Cable
• Standards/Approvals: UL Listed|cULus Listed|ANSI/UL 467 UL File No. KDER.E220029|cULus File No. KDER7.E220029|CSA C22.2 File No. 41
• Type: Type GR
