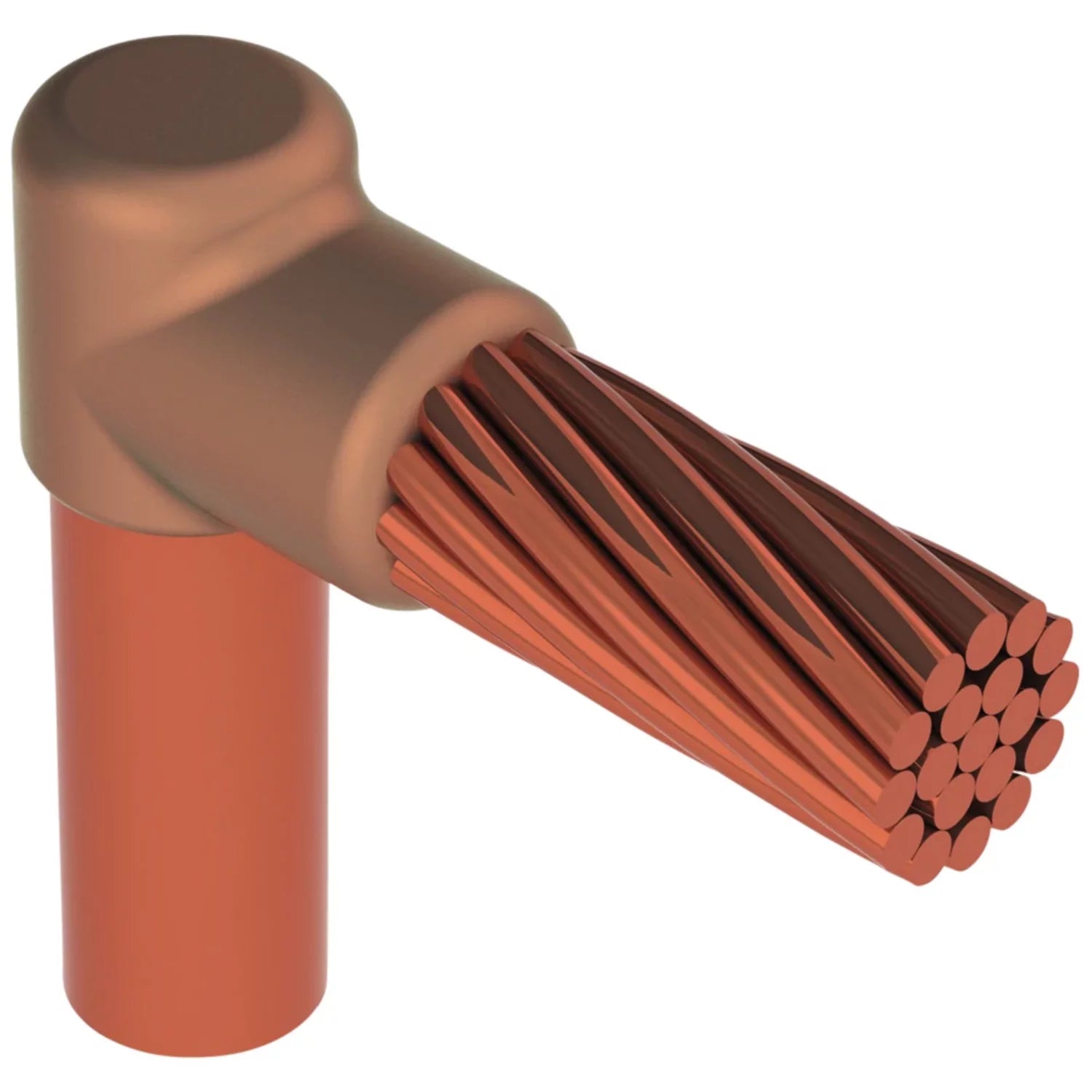

nVent GRC162L ERICO C MOLD HORIZ. 3/0 CABLE TO VERTICAL 5/8 CU GRD ROD

The nVent ERICO CADWELD GRC162L is a type GR weld metal mold designed for 3/0 AWG concentric conductor connections. This mold facilitates connections to a vertical five-eighths inch copper ground rod. It is suitable for use in various electrical applications, particularly in grounding and bonding tasks.

• Forms a permanent, low-resistance connection
• Portable installation with no external power required
• Compatible with various conductor combinations

This mold provides reliable and efficient connections, ensuring durable and low-resistance electrical paths.

• Manufacturer: nVent
• MPN: GRC162L

• Application: Facility Electrical Protection Applications
• Conductor Size: 3/0 AWG Concentric
• Connection Type: Cable to Ground Rod/Other Rounds
• Handle Clamp: L160
• Material: Copper/Graphite
• Mold Price Key: C
• Rod Size: 5/8 in
• Specifications: 0.47 in OD Conductor, Vertical ELL Horizontal Cable
• Standards/Approvals: ANSI/UL 467 UL File No. KDER.E220029|cULus File No. KDER7.E220029|CSA C22.2 File No. 41
• Type: Type GR
