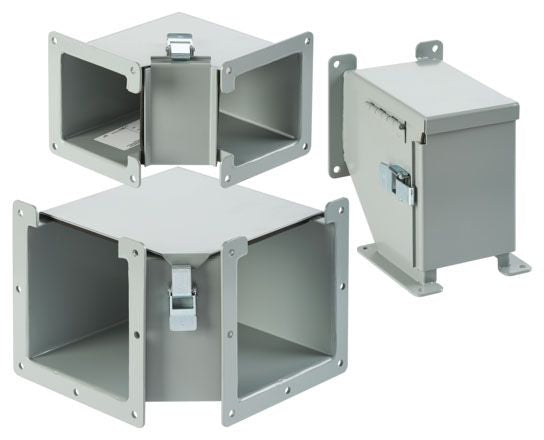

Nvent F88LE9A Top Opening 90 Degree Elbow Fitting

Product Description

The NVENT F88LE9A is a top-opening 90-degree elbow fitting designed for use with Hoffman enclosure wiring duct and raceway systems. This elbow provides a right-angle transition that routes conductors from a horizontal run into a vertical drop or rise at the top of an enclosure entry point. It is a structural wireway component installed by licensed electricians during panel builds, control cabinet wiring, and industrial enclosure assemblies. Weighing 13.25 pounds, the F88LE9A is a robust fitting suited for organized, code-compliant wire management in demanding environments.

This fitting is used in commercial and industrial electrical installations where wireway systems require a 90-degree directional change at a top-entry enclosure opening. Typical applications include motor control centers, automation panels, and distribution enclosures where conductors must transition cleanly from an overhead duct run into the enclosure interior without sharp bends that could damage insulation.

Key Features

• 90-degree elbow configuration for right-angle wireway transitions
• Top-opening design allows access to conductors without full disassembly
• Compatible with Hoffman enclosure wireway and raceway duct systems
• Substantial construction at 13.25 pounds for durable, long-term installation
• Supports organized, code-compliant wire routing in industrial panel applications

Compatibility

Designed as an OEM-style fitting for use with Hoffman wireway duct and enclosure raceway systems in commercial and industrial electrical installations.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements for wireway systems. De-energize all circuits and follow lockout/tagout procedures before installing or modifying wireway components. Secure the elbow fitting per manufacturer mounting guidance and verify conductor fill does not exceed code-permitted percentages for the wireway. Avoid over-bending conductors during routing through the elbow to prevent insulation damage.

Technical Specifications

• Weight: 13.25 pounds
• UPC: 78351019230

Standard Information

• Brand: NVENT
• Manufacturer Part Number: F88LE9A
