nVent F88G60 HOF 8 X 8IN NEMA 1 DUCT - 60IN.

Product Description

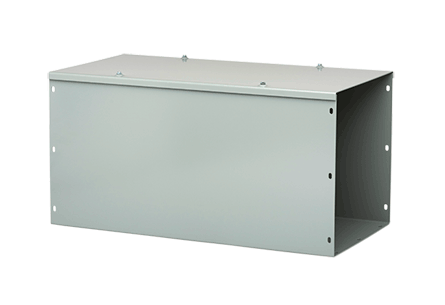

nVent F88G60 is a lay-in straight section wireway with a length of sixty inches, width of eight inches, and height of eight inches. It features a hinged cover which is designed for easy access and wire management.

• Top hinged cover for easy access.
• Constructed from durable steel.
• Meets NEMA 1/3R ratings.

Product Highlights

This wireway is suitable for convenient cable installation and maintenance.

Product Information

Standard Information

• Manufacturer: nVent
• UPC: 78351052640

Technical Specifications

• Application: For convenient cable installation and maintenance with its top hinged cover and an opening on one side so wires and cables can be laid in along the entire run without pulling.
• Color: Gray
• Cover Type: Hinged
• Finish: Polyester Powder Painted
• Height: 8 inches
• Length: 60 inches
• Material: Steel
• NEMA Rating: NEMA 1/3R
• Series: F40
• Standards/Approvals: UL 870, cUL, CSA C22.2, IEC 60529, EU Certified
• Width: 8 inches
