Nvent F66W48 Hof Oiltite Wireway 6 x 6 x 48

Product Description

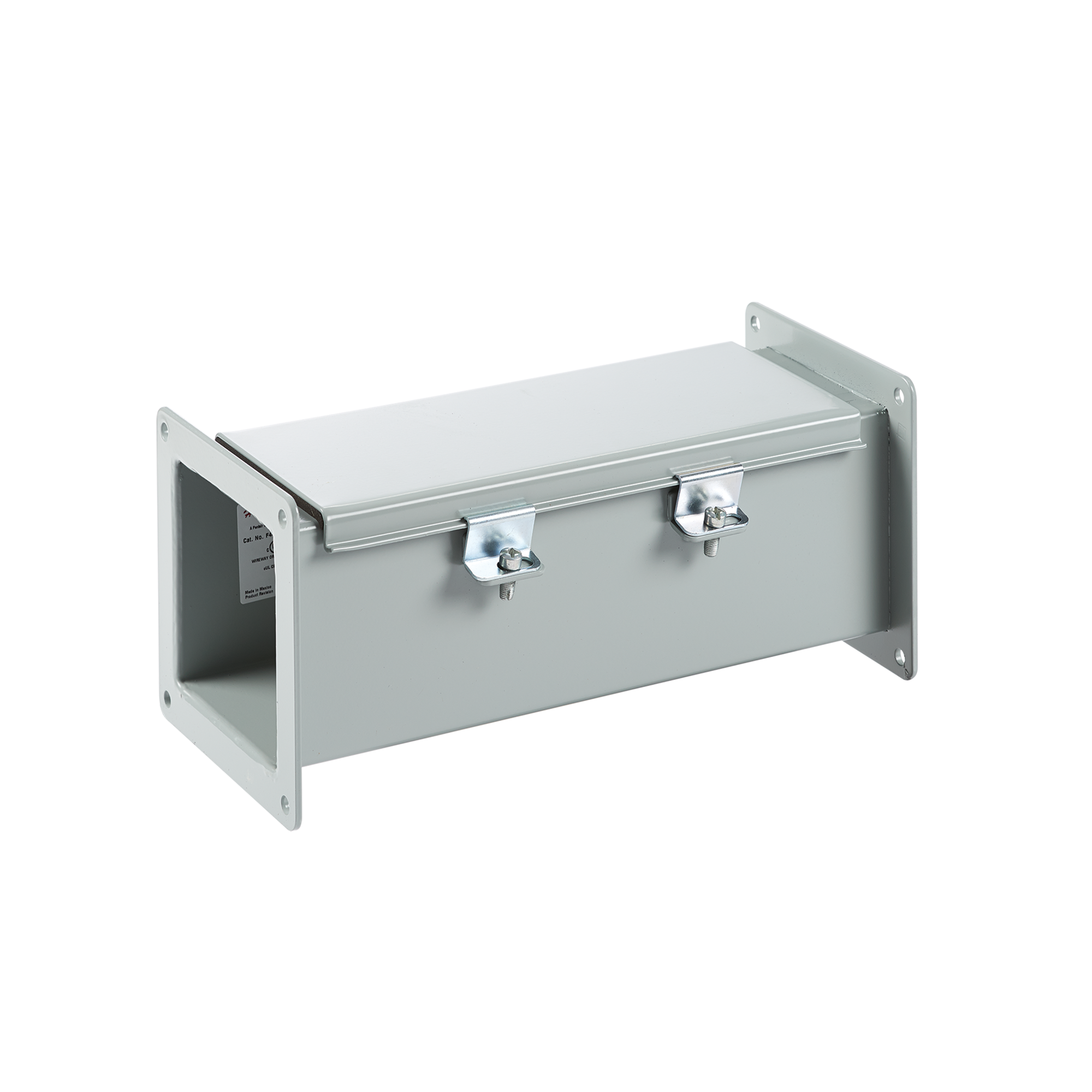

Nvent F66W48 is a feed-through straight section wireway used to enclose and route wire and cable in industrial environments. The unit is constructed of steel with a butt-hinged cover, oil-resistant gasket, and ANSI 61 polyester powder paint finish. It measures 6 in high by 6 in wide by 48 in long and is rated NEMA 12 for indoor dust and drip protection, with continuously welded seams and smooth rounded edges.

• Butt-hinged cover with heavy butt hinges and external screw clamps for access
• Seams continuously welded and ground smooth; no holes or knockouts
• Steel construction with oil-resistant gasket and ANSI 61 polyester powder paint finish

Product Highlights

Feed-through Type 12 straight section, 6 x 6 x 48 in, steel construction, NEMA 12, series F20

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: F66W48
• Country of Origin: Mexico

Technical Specifications

• Brand: Nvent
• Manufacturer Part Number: F66W48
• Series: F20
• Type: Feed-Through Straight Section / Wireway Type 12
• Material: Steel (mild steel)
• Finish: ANSI 61 gray polyester powder paint (powder coated)
• Cover Type: Butt hinged / Hinged cover
• NEMA Rating: NEMA 12
• IP Rating: IP54
• Length: 48 in
• Width: 6 in
• Height: 6 in
• Dimensions: 6 x 6 x 48 in
• Gauge: 14 ga
• Thickness: 14 ga (1.9 mm)
• Weight: 29 lb
• Standards/Approvals: UL 870 File No. E27524 | CSA File No. 42184 | IEC 60529 | JIC Standards EGP-1-1967/EMP-1-1967
• Features: Oil resistant gasket and adhesive; seams continuously welded and ground smooth; no holes or knockouts; smooth rounded edges; heavy butt hinges and external screw clamps
• Bulletin Number: F20
• Article Number: 14440
• UPC: 783510144401
• Country of Origin: Mexico
