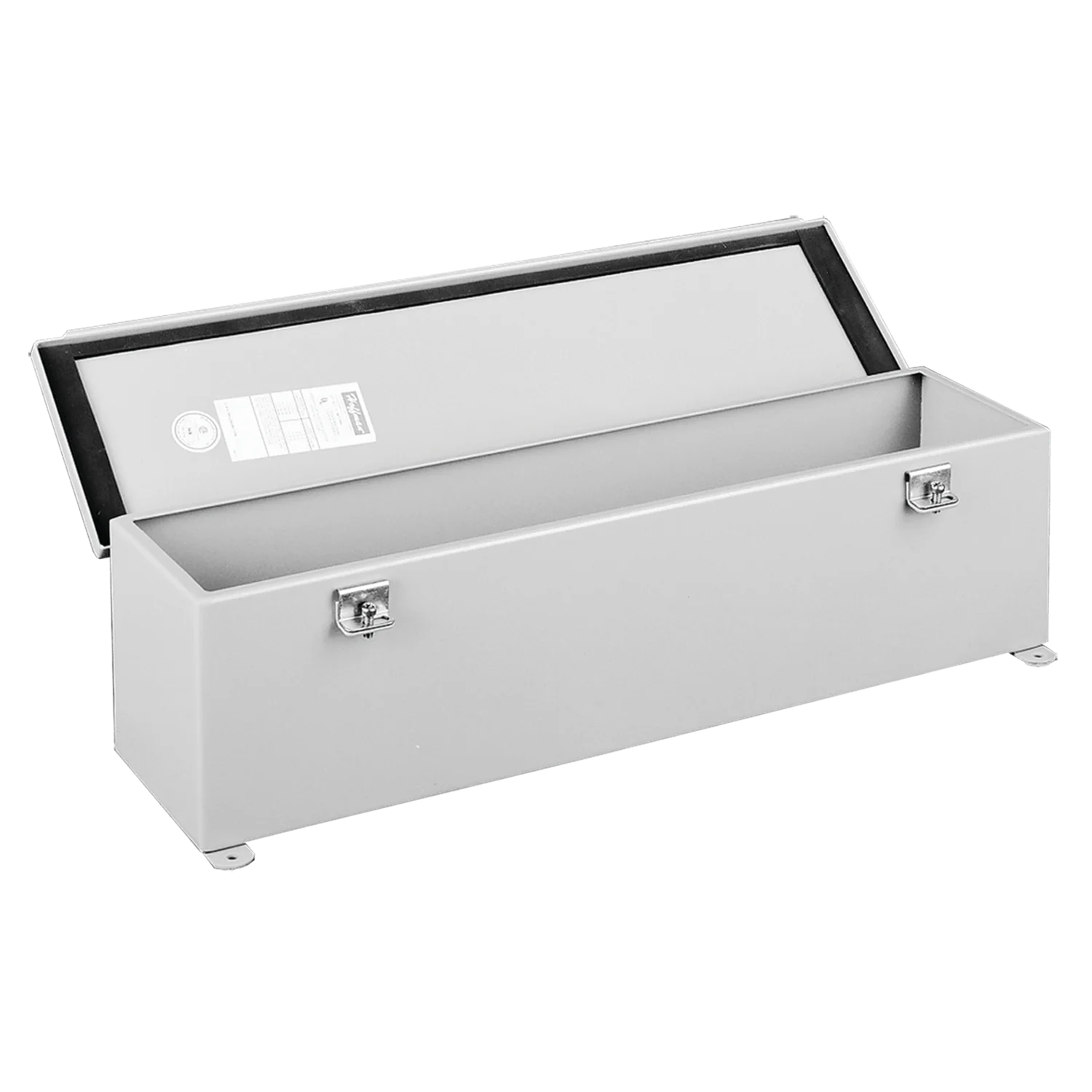

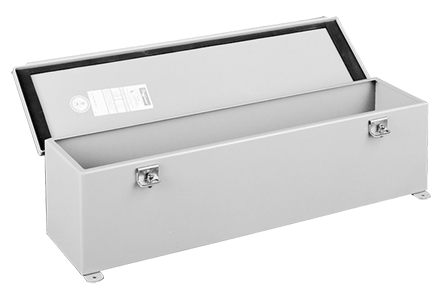

Nvent F66T36HC Hoffman F20HC Wiring Trough (36 in x 6 in x 6 in)

Product Description

The Nvent F66T36HC is a Hoffman F20HC hinged-cover wiring trough (36 in x 6 in x 6 in) constructed of 14 gauge steel and rated NEMA 12 for moist or dirty indoor applications. It provides a hinged butt-style cover with external screw clamps, an oil-resistant gasket with adhesive, and continuously welded, ground-smooth ends and seams for protecting wire and cable distribution, junctions, and terminations.

• 14 gauge steel construction with polyester powder painted finish and continuously welded, ground-smooth ends and seams
• Butt-hinged, screw-clamp cover with oil-resistant gasket and adhesive; no holes or knockouts
• NEMA Type 12 protection; meets UL 870, CSA, JIC, and IEC 60529 (IP55) standards

Product Highlights

36 in x 6 in x 6 in steel wiring trough; 14 ga; butt-hinged screw-clamp cover; NEMA 12 / IP55; oil-resistant gasket

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: F66T36HC
• Country of Origin: Mexico

Technical Specifications

• Manufacturer Part Number: F66T36HC
• Brand: Nvent
• Manufacturer: nVent Hoffman
• Series: F20HC
• Product Type: Wiring trough
• Material: Steel (mild steel)
• Material Gauge: 14 ga
• Finish: Polyester powder painted
• Length: 36 in
• Width: 6 in
• Height: 6 in
• Overall Size: 36 x 6 x 6 in
• Cover Type: Butt hinged / Screw clamp
• Hinges: Butt hinges
• Clamps: External screw clamps
• Clamp Quantity: 3
• Mounting Bracket Quantity: 2
• Weight: 22 lb
• Includes: Touch-up paint
• Gasket: Oil-resistant gasket with adhesive
• Ends and seams: Continuously welded and ground smooth
• Holes/Knockouts: No holes or knockouts
• NEMA Rating: Type 12 (NEMA 12)
• IP Rating: IP55
• Standards/Approvals: UL 870 (File No. E27524); JIC EGP-1-1967 / EMP-1-1967; CSA (File No. 42184, Type 1); IEC 60529 (IP55)
• Country of Origin: Mexico
• Catalog Number: F66T36HC
• Bulletin Number: F20HC
• UPC: 783510167004
