Nvent F66T24HC Hinged cover wiring trough 6.00 x 6.00 x 24.00 inches

Product Description

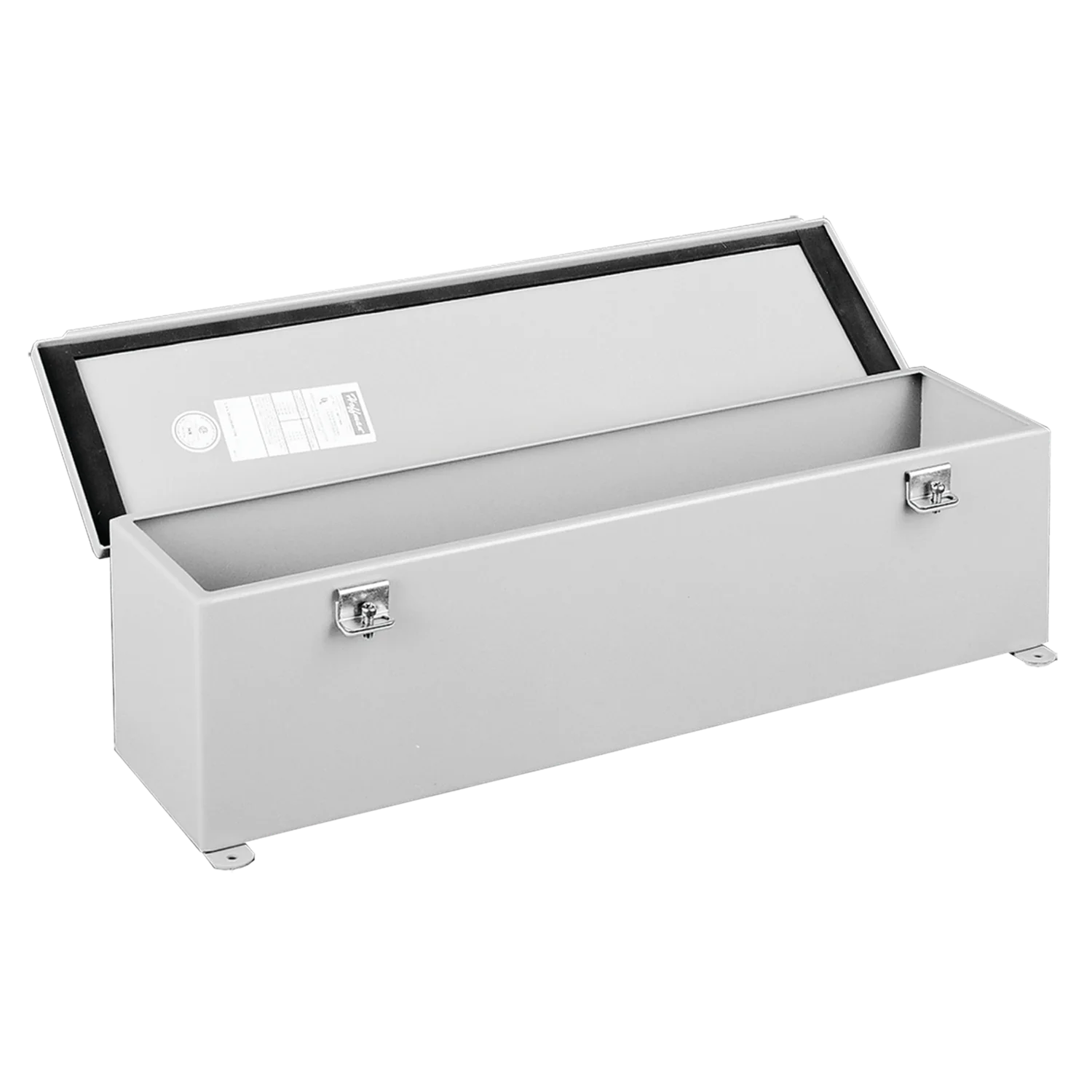

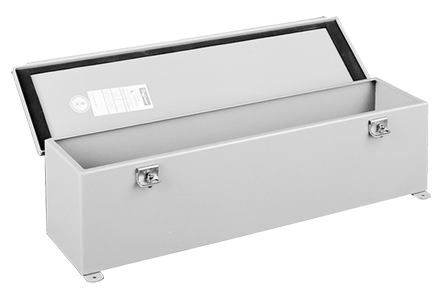

Nvent F66T24HC is a hinged-cover wiring trough (NEMA Type 12) designed to protect and organize wire and cable distribution for indoor, moist, or dirty environments. The steel enclosure features a hinged, screw-clamp cover with butt hinges, oil-resistant gasket, continuously welded seams, and a 14 gauge construction with an ANSI 61 gray polyester powder-coated and galvanized finish. Dimensions are 6 x 6 x 24 inches and weight is approximately 15.5 lb.

• NEMA Type 12 steel enclosure with 14 gauge covers and bodies and ANSI 61 gray polyester powder coating
• Hinged butt hinge cover with external screw clamps and oil-resistant gasket for secure, accessible closure
• Continuously welded and ground smooth seams, no holes or knockouts; suitable for wire management and junctions

Product Highlights

Hinged, screw-clamp wiring trough for indoor NEMA 12 wire management; 6 x 6 x 24 in, 14 gauge steel, welded seams.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: F66T24HC

Technical Specifications

• Brand: Nvent
• Manufacturer Part Number: F66T24HC
• Type: Hinged cover wiring trough
• Series / Bulletin Number: F20HC
• NEMA Rating: Type 12
• Material: Steel (mild steel)
• Gauge: 14 gauge
• Finish: Galvanized; ANSI 61 gray polyester powder coating (inside and out)
• Dimensions (L x W x H): 6.00 x 6.00 x 24.00 inches
• Height: 6 in
• Width: 6 in
• Depth: 24 in
• Weight: 15.5 lb
• Cover Type: Butt hinged / screw clamp
• Hinge Type: Butt hinge
• Cover Locking: External screw clamps (screw clamp)
• Clamp Quantity: 2
• Mounting Bracket Quantity: 2
• Enclosure Environment Rating: Indoor
• Cover Mounting: Hinged
• Standards / Approvals: UL 870 (File No. E27524); JIC standards EGP-1-1967 / EMP-1-1967; IEC 60529
• UPC: 783510166809
