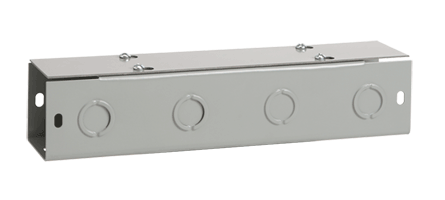

nVent F66T136GVP HOF 6X6 NEMA 1 SC DUCT - 36IN W/O KNOCKOUTS

Product Description

The nVent Hoffman Wireway, model F66T136GVP, is a lay-in straight section designed for electrical wiring protection in various applications. With a length of thirty-six inches, width of six inches, and height of six inches, this steel construction features a flat cover suitable for NEMA 1 environments. The wireway is ideal for situations where dust, dirt, oil, and water aren't significant issues.

• Flat cover design allows for flush mounting against walls and ceilings.
• Keyhole screw slots on flat covers enable easy access.
• Open top assembly enhances flexibility in design.

Product Highlights

This wireway provides a durable pathway for electrical cables. It safeguards electrical wiring, preventing insulation damage from traditional pull-through methods.

Product Information

Standard Information

• Manufacturer: nVent
• MPN: F66T136GVP

Technical Specifications

• Application: Protects electrical wiring where dust, dirt, oil, and water present minimal concerns
• Color: Gray
• Cover Type: Flat
• Material: Steel
• NEMA Rating: NEMA 1
• Series: F40FC
• Standards/Approvals: UL 870, cUL, CSA C22.2 File No. 26, IEC 60529, EU Certified
• Height: 6 inches
• Length: 36 inches
• Width: 6 inches
• Finish: Polyester Powder Painted
