Nvent F66T1120GVP Lay-In Straight Section Wireway (6 x 6 x 120 in) HOFF66T1120GVP

Product Description

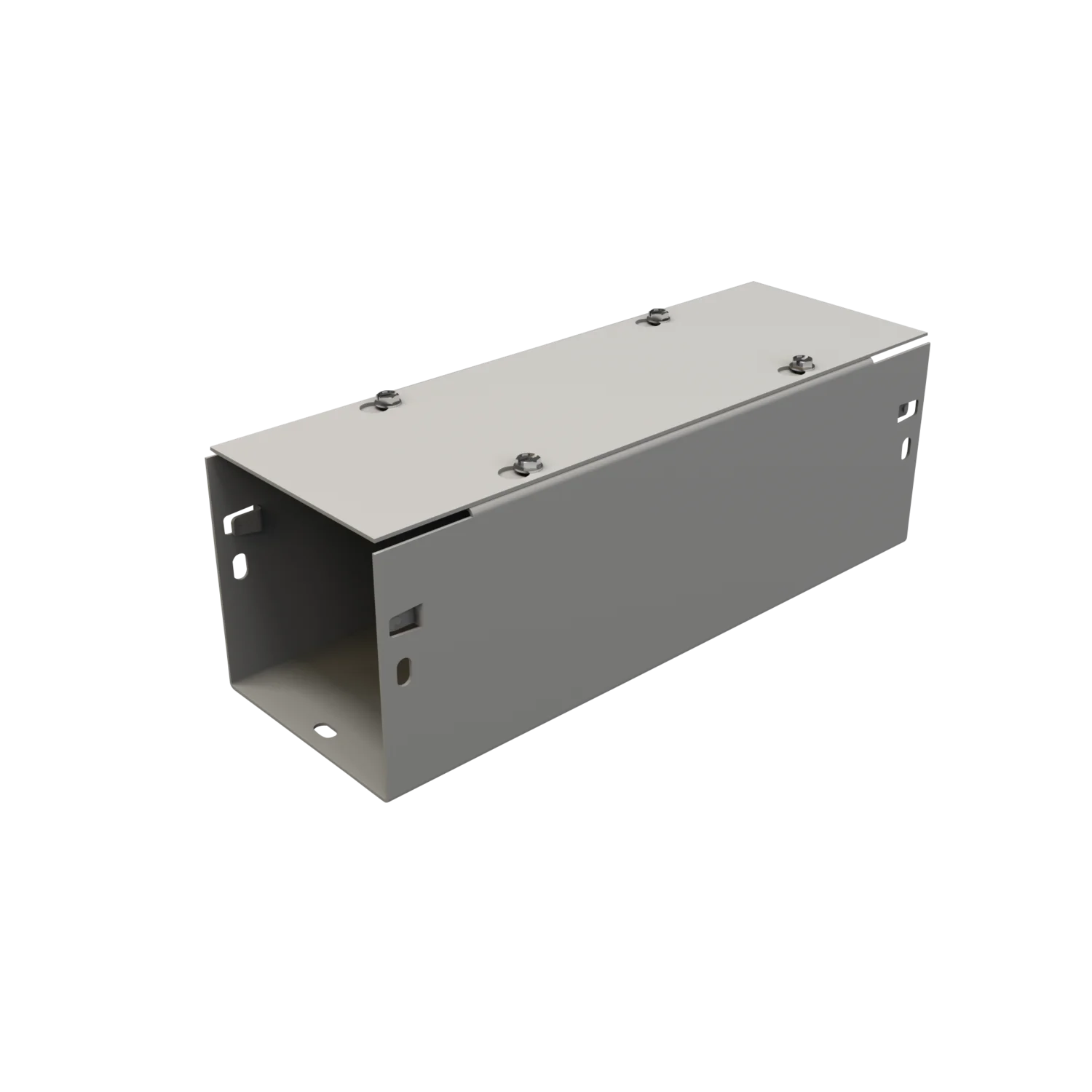

Nvent F66T1120GVP is a lay-in flat-cover straight section wireway designed to enclose and protect electrical wiring in wireway runs. This steel Type 1 unit measures 6 x 6 x 120 inches, features an open-side lay-in assembly to avoid pull-through wiring, and is finished with ANSI 61 polyester powder paint. The flat cover supports flush mounting and includes keyhole screw slots for simplified access.

• Open-side lay-in design allows wires and cables to be placed along the run without pulling through
• Flat cover with keyhole screw slots for flush mounting and simplified access
• Steel construction with ANSI 61 polyester powder paint finish; NEMA 1 rating

Product Highlights

6 x 6 x 120 in steel lay-in wireway, flat cover, open-side access, NEMA 1

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: F66T1120GVP

Technical Specifications

• Brand: Nvent
• Manufacturer: nVent Hoffman
• Manufacturer Part Number: F66T1120GVP
• Alternate Part Number: HOFF66T1120GVP
• Series / Bulletin Number: F40FC
• Type: Straight section, lay-in, flat cover (Type 1)
• Material: Steel
• Finish: ANSI 61 polyester powder paint
• Cover Type: Flat
• Dimensions (L x W x H): 120 in x 6 in x 6 in
• Length: 120 in
• Width: 6 in
• Height: 6 in
• Thickness / Gauge: 16 ga
• Number of Knockouts: 0 (no knockouts)
• Access / Connection Type: Open-top lay-in assembly
• NEMA / IP Rating: NEMA 1
• Weight: 54 lb
• Standards / Approvals: UL 870 File No. E27524; cUL File No. E27524; CSA C22.2 File No. 26; IEC 60529
