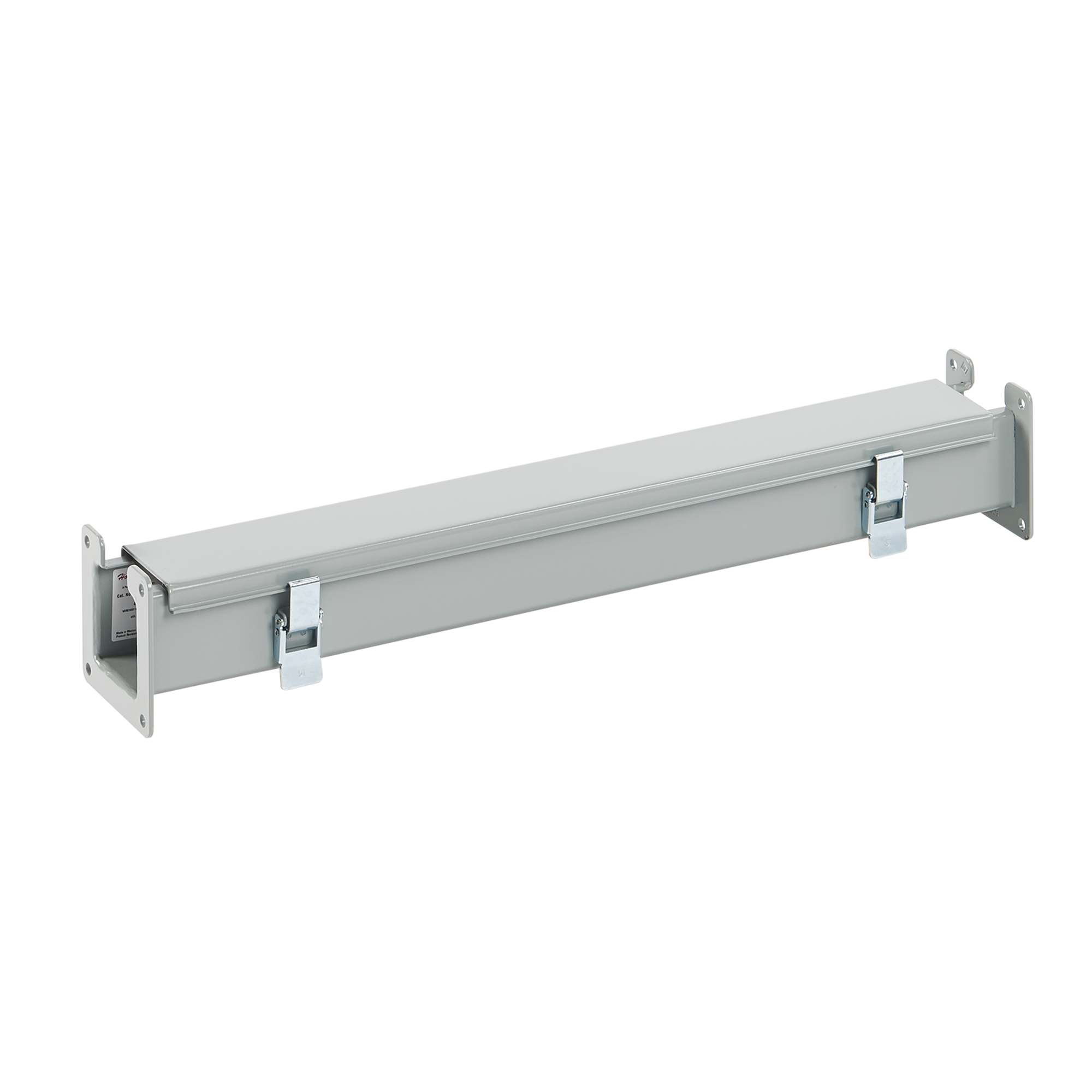

Nvent F66L24 Straight Section Lay-In Hinged Cover (6.00 x 6.00 x 24.00)

Product Description

Nvent F66L24 is a straight lay-in wireway section with a hinged cover and a Type 12 enclosure, sized 6.00 x 6.00 x 24.00 inches. Constructed of steel with gasketed sealing, the unit protects wiring against oil and contaminants and provides an opening for lay-in cable installation without pulling. It is suitable for industrial power distribution and wire routing applications.

• Type 12 lay-in wireway, dimensions 6.00 in H x 6.00 in W x 24.00 in L
• Steel construction with gasketed hinged cover and quick-release latches for access
• Includes one flat sealing plate and fittings to join sections; designed for industrial environments

Product Highlights

Gasketed, hinged lay-in straight section for Type 12 industrial wireway installations; 6 x 6 x 24 inches; steel construction with sealing plate.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: F66L24
• Country of Origin: MX

Technical Specifications

• Brand: nVent
• Manufacturer Part Number: F66L24
• Product Type: Straight section lay-in wireway
• Material: Mild steel
• Finish: ANSI 61 gray polyester powder paint
• NEMA Rating: Type 12 (NEMA 12)
• IP Rating: IP54
• Height: 6 in
• Width: 6 in
• Length: 24 in
• Thickness / Gauge: 14 ga covers and bodies; 10 ga end flanges
• Sealing Plate Type: Flat
• Sealing Plate Quantity: 1
• Weight: 15.5 lb
• Standards / Approvals: UL 870 (File No. E27524), CSA (File No. 42184), IEC 60529, RoHS compliant
• Country of Origin: MX
