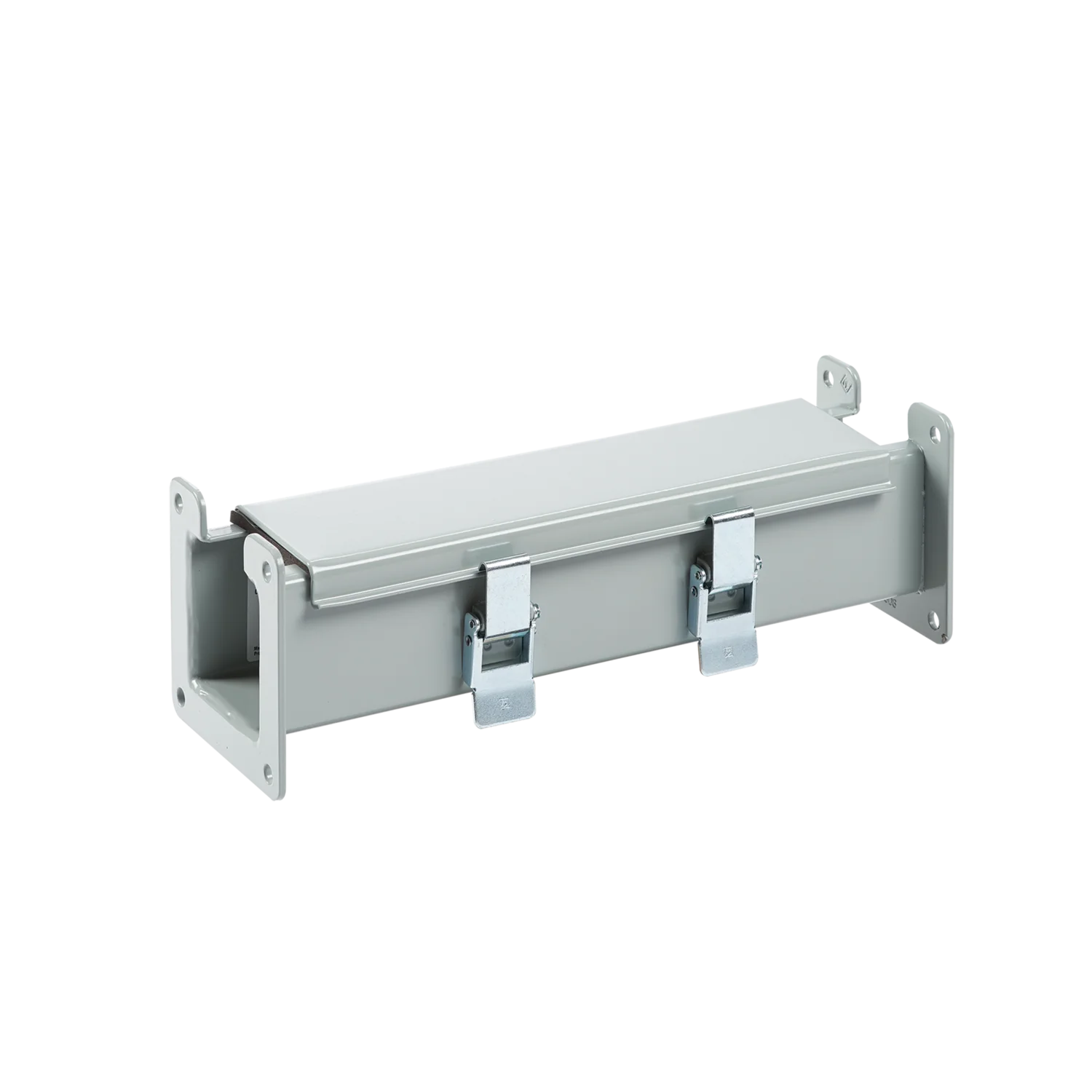

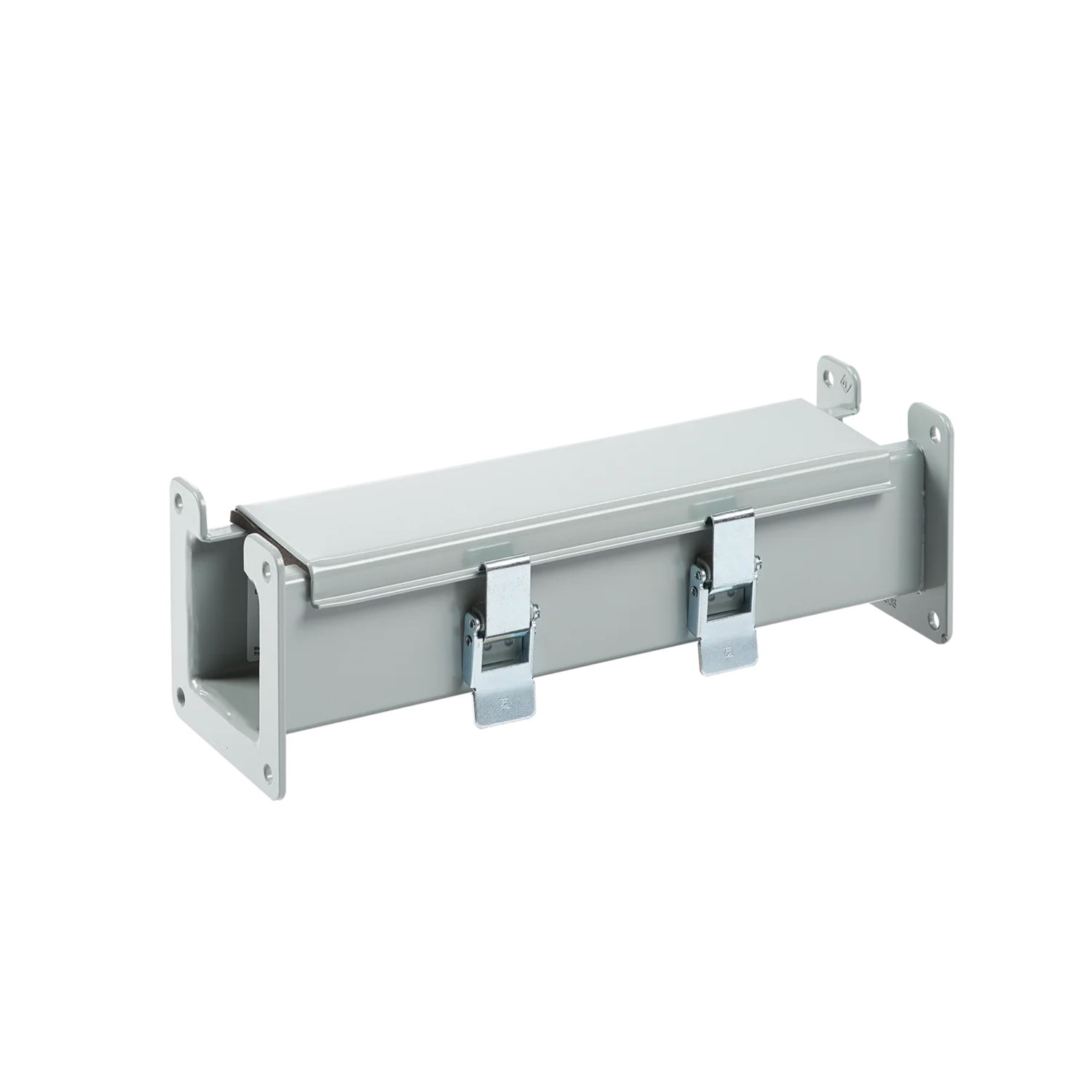

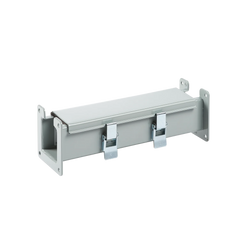

Nvent F66L12 F10 lay-in straight section wireway 12 in L x 6 in W x 6 in H

Product Description

Nvent F66L12 is a Hoffman F10 lay-in straight section wireway that provides a gasketed NEMA 12 enclosure for lay-in cable routing. The steel straight section measures 12 in long by 6 in wide by 6 in high, and features a butt-hinged cover with oil-resistant gasket, quick-release latches, and includes gasket and screws for joining sections. Construction uses 14 ga covers/bodies and 10 ga end flanges with ANSI 61 polyester finish.

• Gasketed NEMA 12 lay-in straight section with an opening on one side for lay-in cable installation without pulling
• Butt-hinged cover with oil-resistant gasket and quick-release latches; includes gasket and set of screws to join sections
• Steel construction with 14 ga covers and bodies, 10 ga end flanges; ANSI 61 polyester powder paint finish

Product Highlights

Gasketed NEMA 12 lay-in wireway, 12 x 6 x 6 in, steel construction with butt-hinged cover and quick-release latches

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: F66L12
• Country of Origin: United States

Technical Specifications

• Manufacturer: Nvent Hoffman
• Manufacturer Part Number: F66L12
• Series: F10
• Type: Lay-In Straight Section Wireway
• Application: Industrial wiring protection against oil and other contaminants
• NEMA Rating: NEMA 12
• IP Rating: IP54
• Material: Steel
• Finish: ANSI 61 polyester powder paint
• Cover Type: Butt-hinged cover
• Gasket: Oil-resistant gasket (included)
• Sealing Plate Quantity: 1
• Construction Gauge: 14 ga covers and bodies; 10 ga end flanges
• Length: 12 in (305 mm)
• Width: 6 in (152 mm)
• Height: 6 in (152 mm)
• Dimensions: 12 in x 6 in x 6 in (305 mm x 152 mm x 152 mm)
• Weight: 8.8 lb
• Includes: Gasket and set of screws to join sections
• Standards/Approvals: UL 870 File No. E27524; CSA File No. 42184; IEC 60529; JIC Standards EGP-1-1967/EMP-1-1967
• Country of Manufacture: United States
• Bulletin Number: F10
