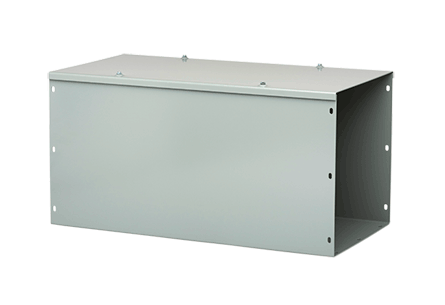

nVent F66G120 Hoffman Lay-In Straight Section Wireway 120 in

Product Description

The nVent F66G120 is a lay-in straight section wireway designed to facilitate convenient cable installation and maintenance. This section measures one hundred twenty inches in length, six inches in width, and six inches in height. It features a hinged cover for simple access and is constructed from durable steel with a gray polyester powder paint finish.

• Open top assembly for easy access
• Includes captivated plated screw fastener
• NEMA 1/3R rated for indoor and outdoor use

Product Highlights

This wireway is ideal for wire management in electrical systems, offering flexibility with various lengths and fittings.

Product Information

Standard Information

• Manufacturer: nVent
• MPN: F66G120

Technical Specifications

• Application: Convenient cable installation and maintenance
• Color: Gray
• Cover Type: Hinged
• Finish: Polyester Powder Painted
• Height: 6 in
• Length: 120 in
• Material: Steel
• NEMA Rating: NEMA 1/3R
• Series: F40
• Standards/Approvals: UL 870 File No. E27524|cUL File No. E27524|CSA C22.2 File No. 26|IEC 60529|EU Certified
• Width: 6 in
