nVent F66G12 HOF 1' NEMA 1 WIREWAY

Product Description

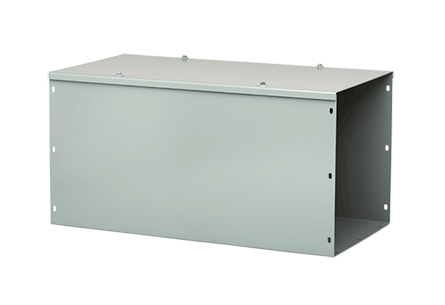

The nVent F66G12 is a wireway designed to facilitate efficient cable management. The dimensions are twelve inches in length, six inches in width, and six inches in height. The design includes a hinged cover for easy access, meeting NEMA 1/3R standards, and manufactured from steel for durability.

• Open top for cable installation
• Hinged cover for easy maintenance
• Compatible with various fittings

Product Highlights

This product is suitable for wire and cable installation without pulling, promoting efficient maintenance.

Product Information

Standard Information

• Manufacturer: nVent
• Manufacturer Part Number: F66G12

Technical Specifications

• Application: For convenient cable installation and maintenance with its top hinged cover
• Color: Gray
• Cover Type: Hinged
• Finish: Polyester Powder Painted
• Height: 6 in
• Includes: Captivated Plated Screw Fastener
• Length: 12 in
• Material: Steel
• NEMA Rating: NEMA 1/3R
• Series: F40
• Standards/Approvals: UL 870, cUL, CSA C22.2 File No. 26, IEC 60529, EU Certified
• Type: Lay-In Straight Section
• Width: 6 in
