nVent F44T148GVP HOF 4X4 NEMA 1 SC DUCT - 48IN W/O KNOCKOUTS

Product Description

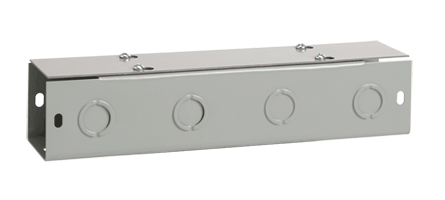

The nVent Hoffman F44T148GVP is a lay-in straight section wireway designed for protecting electrical wiring. This product features a length of 48 inches, width of 4 inches, and height of 4 inches. It is constructed from steel and finished with gray polyester powder paint, suitable for applications where dust, dirt, oil, and water are not serious problems.

• Open top assembly
• Flat cover design allows for flush mounting
• All sections open on one side for easy wire and cable placement

Product Highlights

This wireway helps to prevent damage to insulation during installations by eliminating the need for pulling wires through the system. Keyhole screw slots on flat covers provide easy accessibility for maintenance and installation.

Product Information

Standard Information

• Manufacturer: nVent
• UPC: 78351036049

Technical Specifications

• Type: Lay-In Straight Section
• Application: Protecting electrical wiring where dust, dirt, oil and water are not major concerns
• Color: Gray
• Cover Type: Flat
• Finish: Polyester Powder Painted
• Height: 4 inches
• Length: 48 inches
• Material: Steel
• NEMA Rating: NEMA 1
• Series: F40FC
• Standards/Approvals: UL 870 File No. E27524|cUL File No. E27524|CSA C22.2 File No. 26|IEC 60529|EU Certified
• Width: 4 inches
