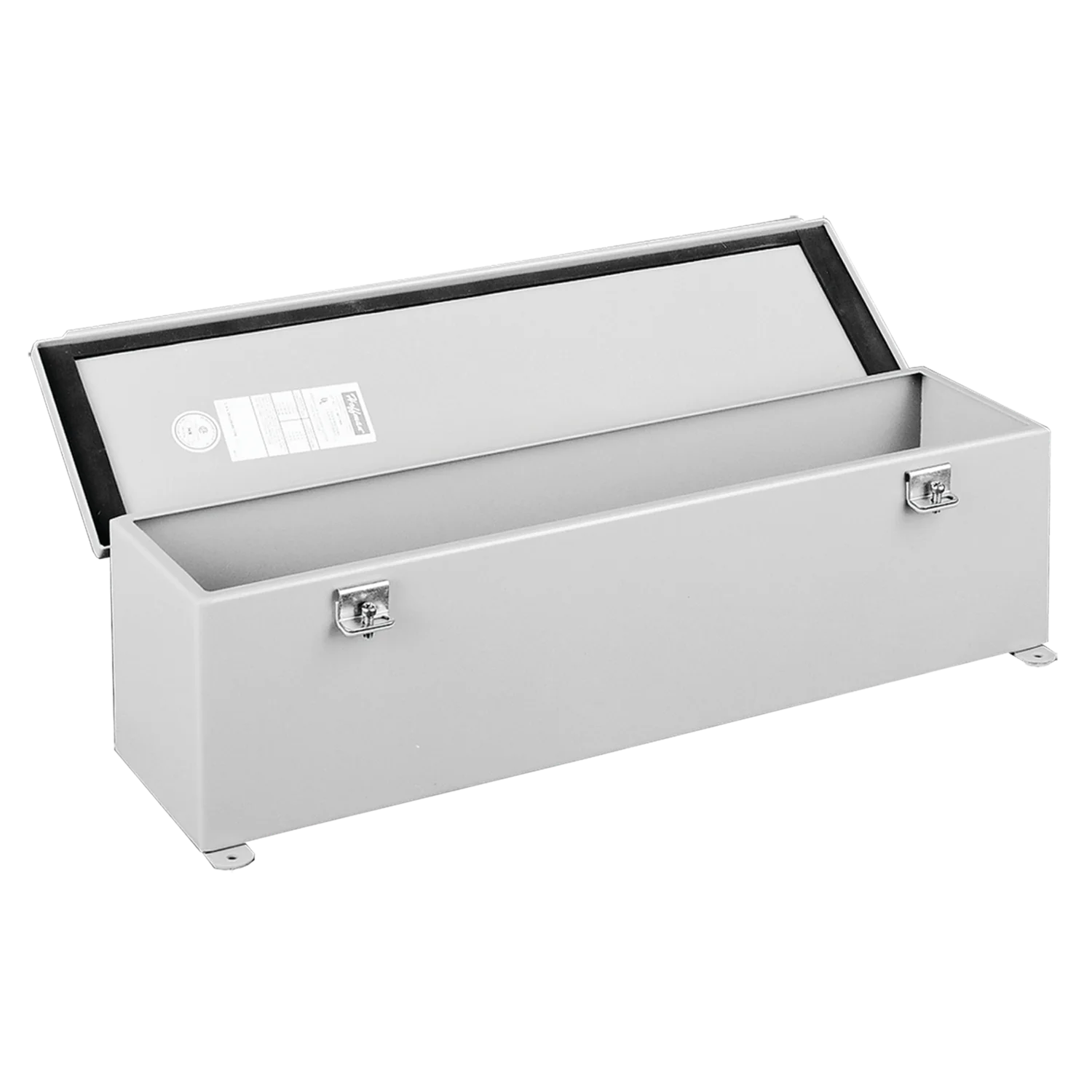

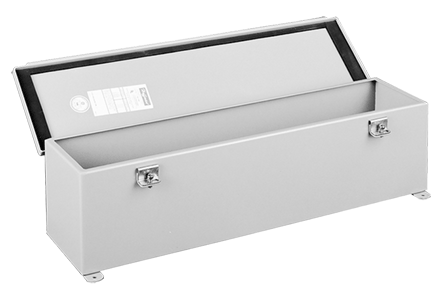

Nvent F44T12HC Wiring Trough 12 in L x 4 in W x 4 in H

Product Description

The NVENT F44T12HC wiring trough from the F20HC series is designed to protect wire and cable distribution in moist or dirty environments. Measuring 12 inches in length, 4 inches in width, and 4 inches in height, it features a hinged, screw clamp cover for easy access. The trough is constructed of steel with a polyester powder-painted finish.

• Ends and seams continuously welded and ground smooth
• No holes or knockouts
• Oil-resistant gasket and adhesive

Product Highlights

This wiring trough is suitable for protecting wire and cable distribution, junctions, and terminations. Meets basic functionality requirements for moist or dirty applications.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: F44T12HC
• Country of Origin: Mexico

Technical Specifications

• Manufacturer Part Number: F44T12HC
• Series: F20HC
• Length: 12 in
• Width: 4 in
• Height: 4 in
• Cover Type: Butt Hinged/Screw Clamp
• NEMA Rating: NEMA 12
• Material: Steel
• Finish: Polyester Powder Painted
• Color: Gray
• Application: For moist or dirty applications
• Includes: Touch-Up Paint
• Standards/Approvals: UL 870 File No. E27524|JIC Standards|EGP-1-1967/EMP-1-1967|CSA File No. 42184, Type 1|IEC 60529
• Type: Trough
• Thickness: 14ga
• Clamp Quantity: 2
• Mounting Bracket Quantity: 2
• UPC: 783510165802
• Bulletin Number: F20HC
• GTIN: 00783510165802
• UNSPSC: 39131714
• Country of Origin: Mexico
• BABA Compliant: No
• Suitable For Use With: used for protecting wire and cable distribution, junctions and terminations in a variety of applications
• Gauge: 14 ga
• Cover Locking Style: Screw
• Color Code: ANSI 61
• IP Rating: IP60
• Protection Rating: NEMA Type 12
• With Knockouts: No
