nVent F44T124GVP HOF 4X4 NEMA 1 SC DUCT - 24IN W/O KNOCKOUTS..

Product Description

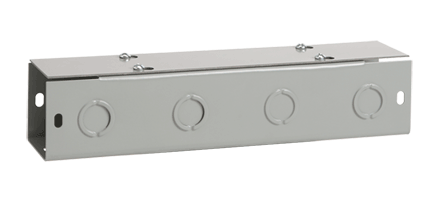

The nVent F44T124GVP is a sturdy lay-in straight section wireway. It measures twenty-four inches in length, four inches in width, and four inches in height. Designed for NEMA 1 applications, this steel wireway protects electrical wiring where dust, dirt, oil, and water are not serious issues.

• Open top assembly for easy wire access
• Flush mounting with walls or ceilings
• Flat cover design prevents damage to insulation

Product Highlights

This wireway is ideal for installations that require reliable protection and easy access. Its design allows for efficient cable management without pulling wires through a conduit, reducing the risk of insulation damage.

Product Information

Standard Information

• Manufacturer: nVent
• MPN: F44T124GVP

Technical Specifications

• Application: For protecting electrical wiring in areas without serious exposure to dust, dirt, oil, and water
• Color: Gray
• Cover Type: Flat
• Finish: Polyester powder painted
• Height: 4 inches
• Length: 24 inches
• Material: Steel
• NEMA Rating: NEMA 1
• Series: F40FC
• Standards/Approvals: UL 870 File No. E27524, cUL File No. E27524, CSA C22.2 File No. 26, IEC 60529, EU Certified
• Width: 4 inches
