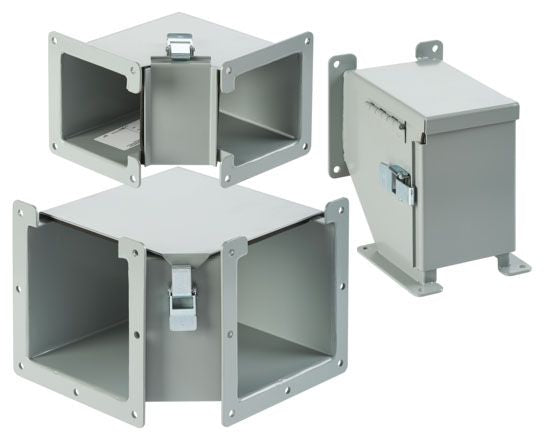

Nvent F22LE9C Outside Opening 90 Degree Elbow

Product Description

The NVENT F22LE9C is an outside opening 90-degree elbow fitting designed for use in raceway and wireway installations. This elbow provides a right-angle directional change for conduit or wireway runs, allowing a clean transition when routing changes from one plane to another along an exterior wall corner or similar outside surface. It is a standard structural component in electrical enclosure and wire management systems, typically installed by licensed electricians on commercial and industrial projects where organized conductor routing is required.

This fitting is used in applications where a wireway or raceway system must navigate an outside corner at a 90-degree angle. It is suited for both commercial and light industrial environments where surface-mounted wire management systems are part of the electrical distribution layout. The outside opening design allows conductors to be laid in from the exterior of the bend, simplifying wire pulls through directional changes in the run.

Key Features

• Outside opening design simplifies conductor installation through directional changes
• 90-degree elbow provides a clean right-angle transition in raceway or wireway runs
• Designed for use with compatible surface raceway or wireway system components
• Supports organized, code-compliant conductor routing in commercial and industrial settings

Compatibility

Designed as an OEM-style fitting for use with compatible surface raceway and wireway systems requiring outside 90-degree elbow transitions.

Installation Notes

Installation is performed by a licensed electrician in accordance with applicable NEC requirements for raceway and wireway systems. De-energize all circuits in the affected raceway section before opening or modifying any wireway components. Ensure the fitting is fully seated and secured to adjacent raceway sections before routing conductors. Do not exceed the raceway fill capacity as defined by NEC guidelines for the associated wireway system.

Technical Specifications

• Weight: 3.5 pounds
• UPC: 78351018130

Standard Information

• Brand: NVENT
• Manufacturer Part Number: F22LE9C
