Nvent F22G60WK Hof Type 1 wireway w/ knockouts 2.5 x 2.5 x 60 in

Product Description

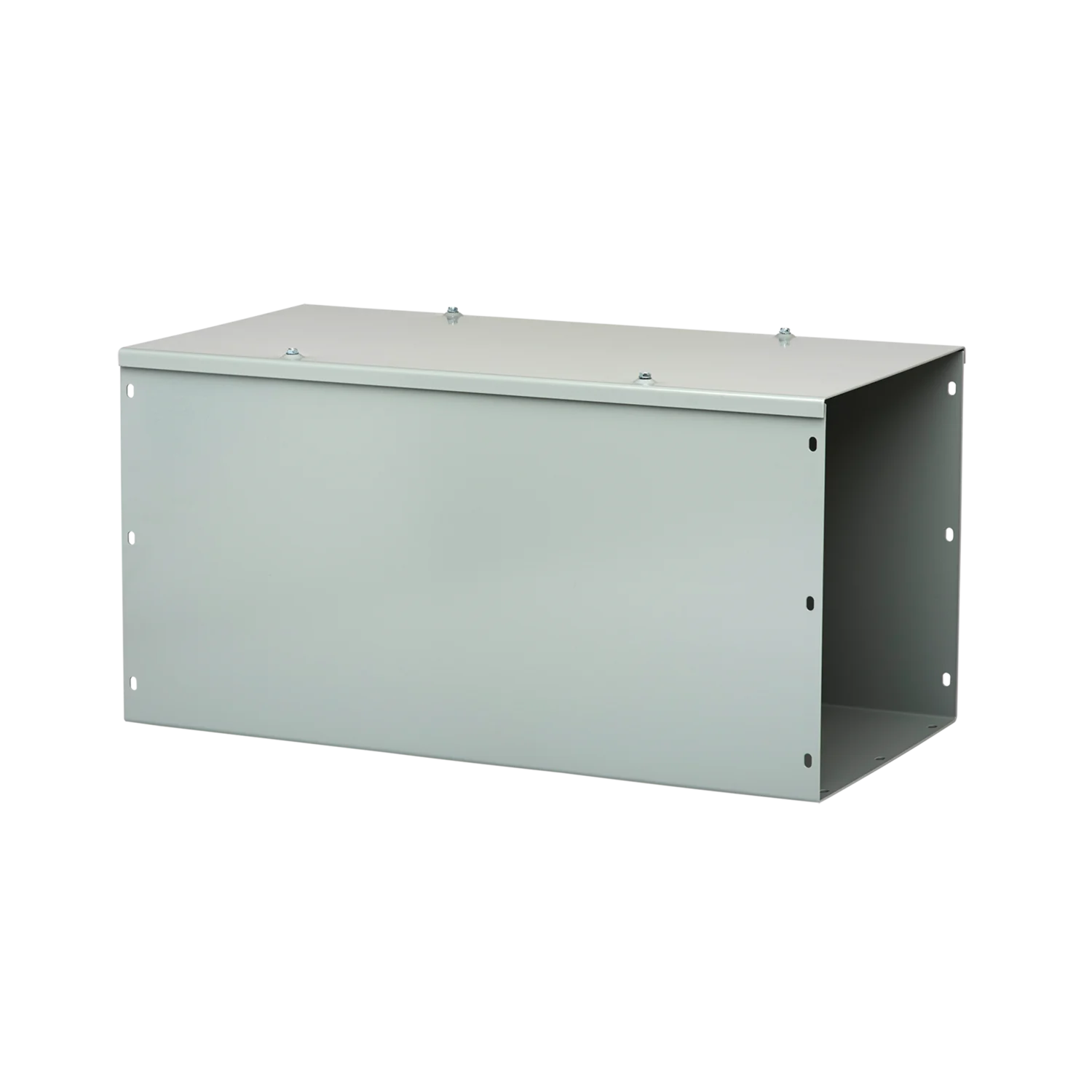

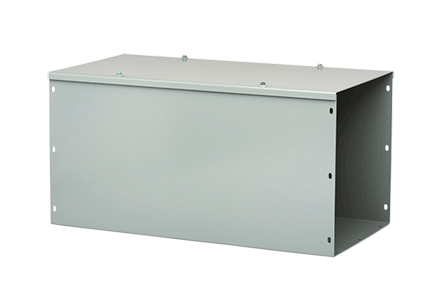

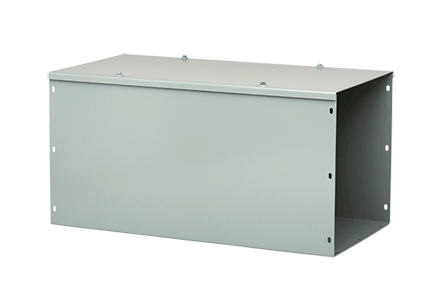

Nvent F22G60WK is a lay-in Type 1 wireway straight section by nVent Hoffman with a hinged removable cover, designed to enclose and provide lay-in access for wires and cables. The unit is constructed of 16 gauge steel with an ANSI 61 polyester powder coat finish, measures 2.5 in H x 2.5 in W x 60 in D, and includes 40 knockouts sized 1/2 to 3/4 in for conduit entry. It is rated NEMA 1/3R.

• Lay-in open-top straight section with hinged, removable cover and captive screws for lay-in cable installation and maintenance
• 16 gauge steel construction with ANSI 61 polyester powder paint finish inside and out
• Forty knockouts (1/2 to 3/4 in) and NEMA 1/3R rating; dimensions 2.5 in H x 2.5 in W x 60 in D

Product Highlights

Lay-in Type 1 straight section; 16 ga steel; 2.5 x 2.5 x 60 in; 40 KOs (1/2–3/4 in); NEMA 1/3R; ANSI 61 powder coat

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: F22G60WK
• Country of Origin: Mexico

Technical Specifications

• Brand: Nvent
• Manufacturer Part Number: F22G60WK
• Type: Lay-in straight section
• Cover Type: Hinged (removable) with captive screws
• Material: Steel
• Material Gauge: 16 gauge
• Finish: ANSI 61 gray polyester powder paint finish inside and out
• Dimensions: 2.5 in H x 2.5 in W x 60 in D
• Length: 60 in
• Width: 2.5 in
• Height: 2.5 in
• Number of Knockouts: 40
• Knockout Size: 1/2 to 3/4 in
• NEMA Rating: NEMA 1/3R
• Standards/Approvals: UL 870 File No. E27524; cUL File No. E27524; CSA C22.2 File No. 26; IEC 60529
• Includes: Captivated plated screw fastener
• UPC: 783510528904
• Country of Origin: MX - Mexico
