Nvent F1212GPA F40PF panel adapter lay-in (12 x 12)

Product Description

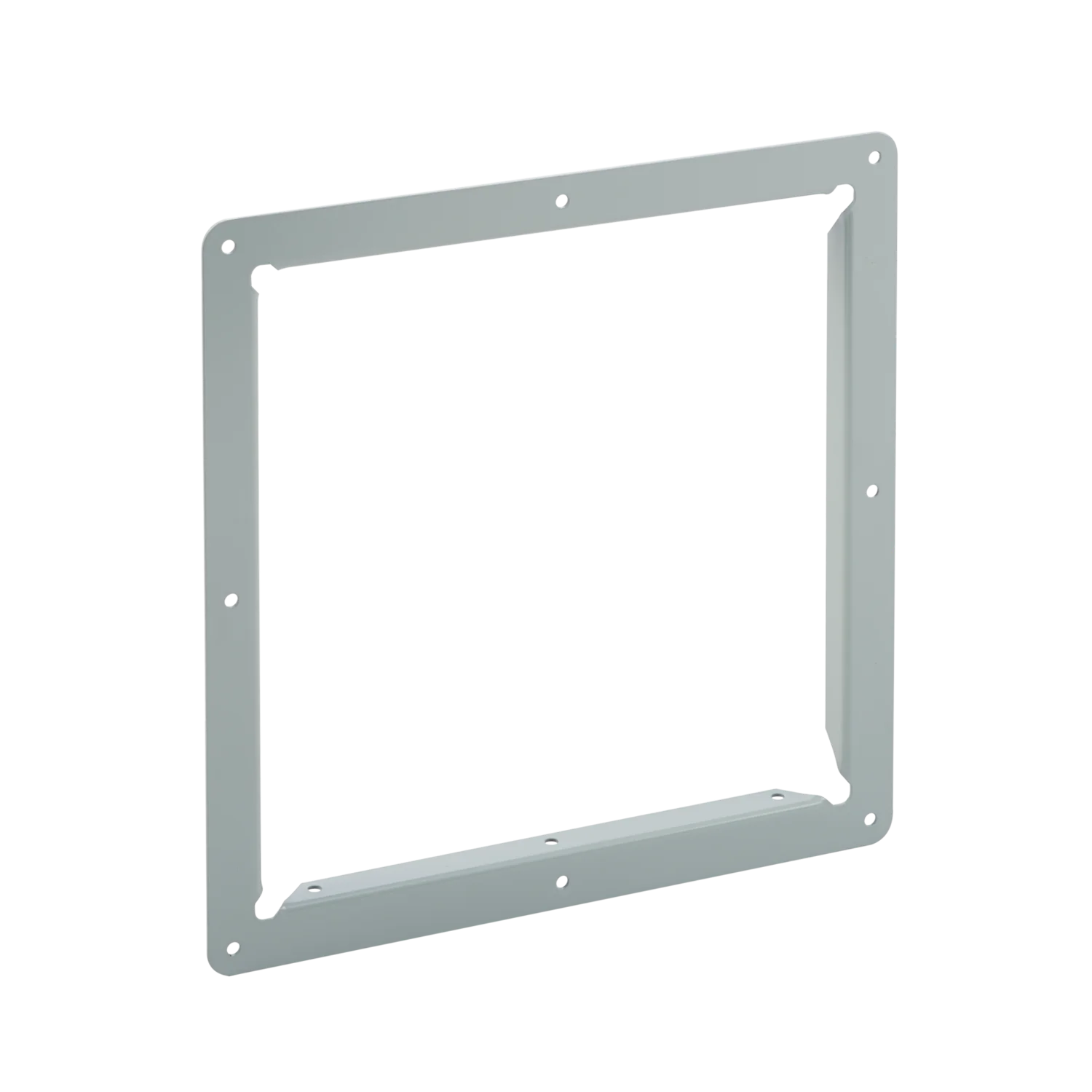

nVent F1212GPA is a F40PF series panel adapter designed to connect a lay-in flat cover wireway to an enclosure. The adapter is constructed of steel with a painted (powder-coated) gray finish and features a flanged fitting for secure attachment. Overall size is 14 in L x 14 in W and it is suitable for use with 12 x 12 in NEMA 1 lay-in flat cover wireway; applicable standards include UL, CSA, and IEC approvals.

• Flanged fitting secures the wireway to an enclosure for cable routing and panel installation
• Steel construction with painted/powder-coated finish; 14 gauge thickness noted
• Compatible with 12 x 12 in NEMA 1 lay-in flat cover wireway; overall dimensions 14 in x 14 in

Product Highlights

Flanged steel panel adapter for 12 x 12 in NEMA 1 lay-in wireway; painted finish; UL/CSA/IEC approvals

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: F1212GPA

Technical Specifications

• Brand: nVent
• Manufacturer Part Number: F1212GPA
• Series: F40PF
• Product Type: Panel adapter, Lay-In
• Material: Steel (mild steel)
• Finish: Painted / powder coated
• Dimensions: 14 in L x 14 in W x 2.5 in D (overall)
• Compatible Wireway Opening: 12 x 12 in NEMA 1 lay-in flat cover wireway
• Thickness: 14 ga
• Weight: 2 lb
• Standards/Approvals: UL 870 File No. E27524 | JIC Standards | EGP-1-1967/EMP-1-1967 | CSA File No. 42184, Type 1 | IEC 60529
• Color: Gray
• Color Code: ANSI 61
• Article Number: 51930
• UPC: 783510519308
• Bulletin Number: F40PF
