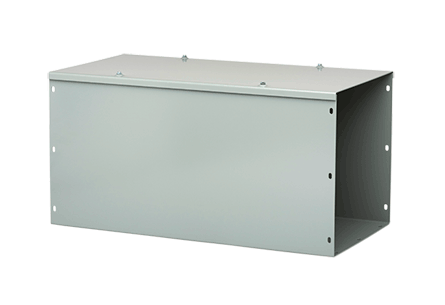

nVent F1212G72 HOF 12x12x72 Straight Section

Product Description

The nVent F1212G72 is a straight section wireway designed to assist in the safe management and organization of electrical cables. This unit measures seventy-two inches in length, twelve inches in width, and twelve inches in height, enabling a convenient installation.

• Open top assembly for easy cable access
• Hinged cover facilitates maintenance
• Constructed with durable steel for longevity

Product Highlights

This wireway offers flexibility with a variety of lengths and fittings. It features a removable hinged cover that latches with captive screws. The ANSI 61 gray polyester powder paint finish ensures rust resistance and durability.

Product Information

Standard Information

• Manufacturer: nVent
• UPC: 78351013291

Technical Specifications

• Type: Lay-In Straight Section
• Application: For convenient cable installation and maintenance with its top hinged cover and an opening on one side for easy cable lay-in
• Color: Gray
• Material: Steel
• Height: 12 inches
• Width: 12 inches
• Length: 72 inches
• Cover Type: Hinged
• Finish: Polyester Powder Painted
• NEMA Rating: NEMA 1/3R
• Standards/Approvals: UL 870 File No. E27524, cUL File No. E27524, CSA C22.2 File No. 26, IEC 60529, EU Certified
