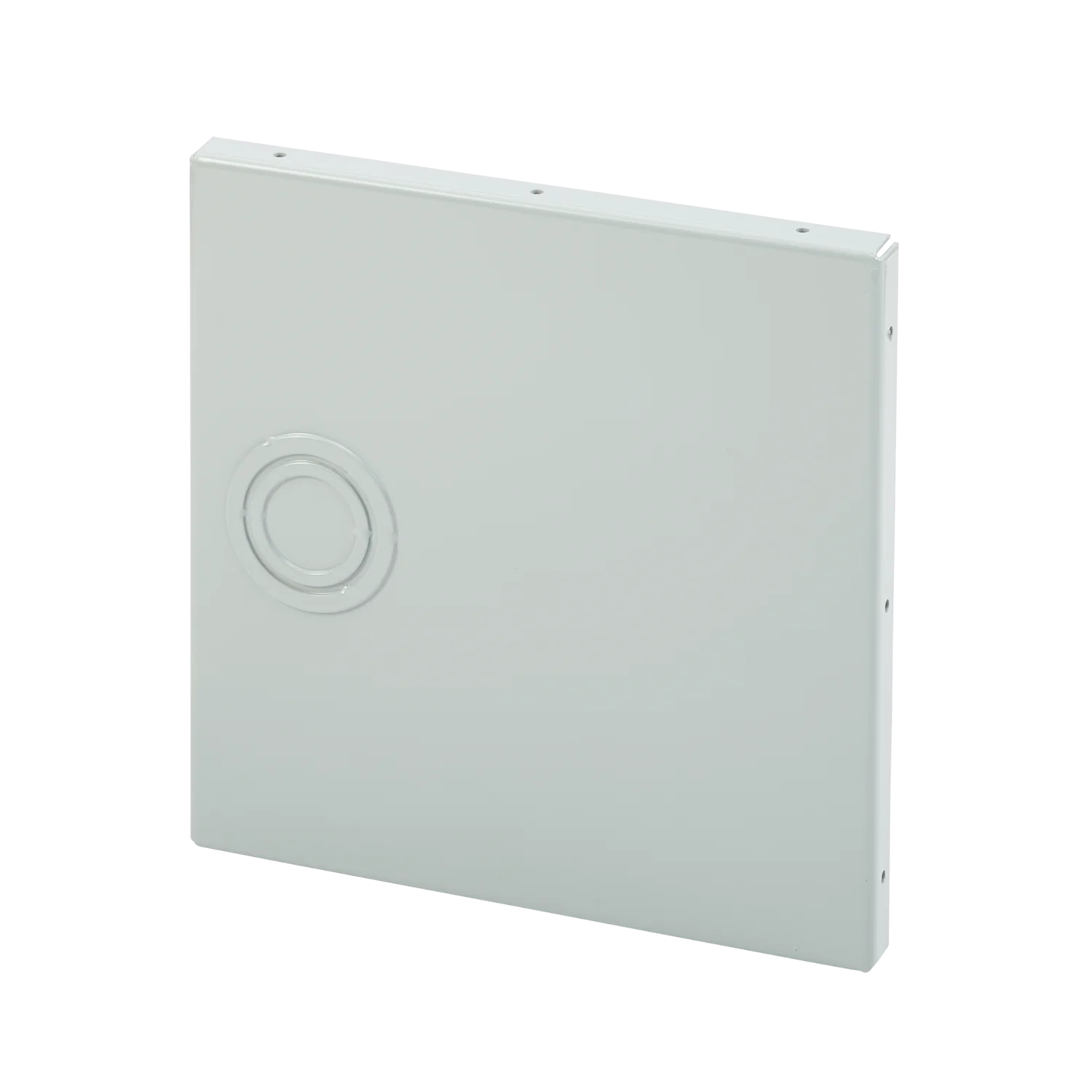

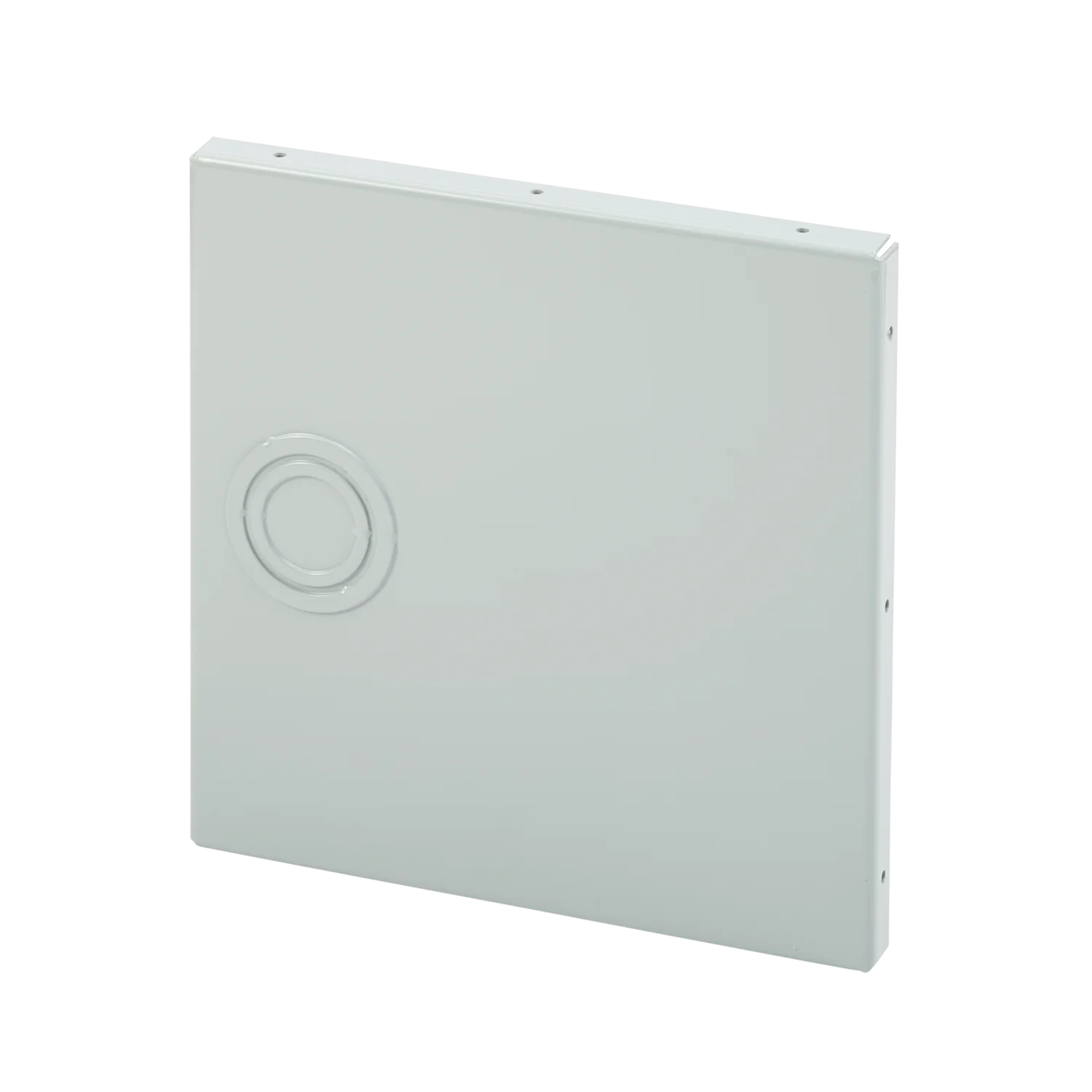

Nvent F1010GCP Closure Plate With Knockout (10 x 10 in)

Product Description

Nvent F1010GCP is a steel closure plate (Series F40PF) for lay-in wireway applications, sized for 10 x 10 in NEMA 1 lay-in flat cover wireway. The plate provides a screw-closure end cap with a concentric knockout pattern and a 3/4 in depth. It is constructed of painted/powder-coated steel and meets multiple industry approvals for enclosure use.

• Steel construction (14/16 gauge) with gray polyester powder paint finish (ANSI 61)
• Designed for 10 x 10 in NEMA 1 lay-in flat cover wireway; screw-closure type
• Includes concentric knockouts (3/4 in) for wiring access; knockouts included

Product Highlights

10 x 10 in steel closure plate for NEMA 1 lay-in wireway with concentric knockouts and screw-closure; series F40PF, model F1010GCP.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: F1010GCP
• Country of Origin: Mexico

Technical Specifications

• Brand: Nvent
• Manufacturer Part Number: F1010GCP
• Series: F40PF
• Product Type: Closure Plate (Lay-In Wireway)
• Size: 10 x 10 in
• Depth: 3/4 in
• Material: Steel
• Gauge: 14/16 gauge (14 ga thickness)
• Finish: Gray polyester powder paint (ANSI 61) / painted
• Knockouts Included: Yes
• Knockout Pattern: Concentric
• Knockout Diameter: 3/4 in
• Wireway Compatibility: For use with 10 x 10 in NEMA 1 lay-in flat cover wireway
• Wireway Cover Type: Screw closure
• NEMA Rating: NEMA 1
• Approvals/Certifications: UL Listed; CUL; CSA C22.2; RoHS compliant (mentions UL 870 and IEC 60529 without specific file/IP values)
• Country of Origin: Mexico
• Weight: 2.5 lb
• Package Quantity: 1
