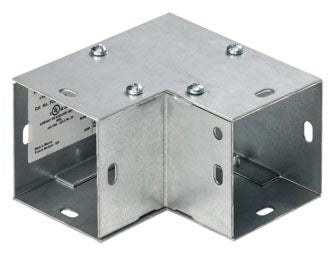

Nvent F101090EGV 90 Degree Elbow

Product Description

The NVENT F101090EGV is a 90-degree elbow fitting designed for use in electrical enclosure and wireway systems. This type of fitting redirects conduit or raceway runs at a right angle, allowing installers to navigate corners and transitions within commercial or industrial wiring layouts. The F101090EGV is installed by licensed electricians and maintenance technicians as part of a complete wiring system assembly. Its rigid construction supports secure, consistent routing of conductors at directional change points throughout the installation.

This 90-degree elbow is suited for commercial and industrial electrical installations where conduit or raceway systems require right-angle direction changes. It is typically used alongside straight sections, couplings, and end fittings within a compatible wireway or enclosure system. The fitting is appropriate for use in both new construction and retrofit applications where maintaining organized, code-compliant conductor routing is required.

Key Features

• 90-degree angle provides a clean right-angle transition for wireway or conduit systems
• Designed for use in commercial and industrial electrical installations
• Compatible with matching straight sections and fittings within the same wireway system
• Rigid construction supports stable, secure conductor routing at directional changes

Compatibility

Designed as an OEM-style fitting for use within compatible NVENT wireway and electrical enclosure raceway systems.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements. De-energize all circuits and verify absence of voltage before working on any connected wireway or enclosure system. Ensure all fittings are fully seated and secured before routing conductors through the assembly. Follow the manufacturer system guidelines for proper fitting sequence and mounting.

Technical Specifications

• Fitting Angle: 90 degrees
• Weight: 13.1 pounds
• UPC: 78351045600

Standard Information

• Brand: NVENT
• Manufacturer Part Number: F101090EGV
