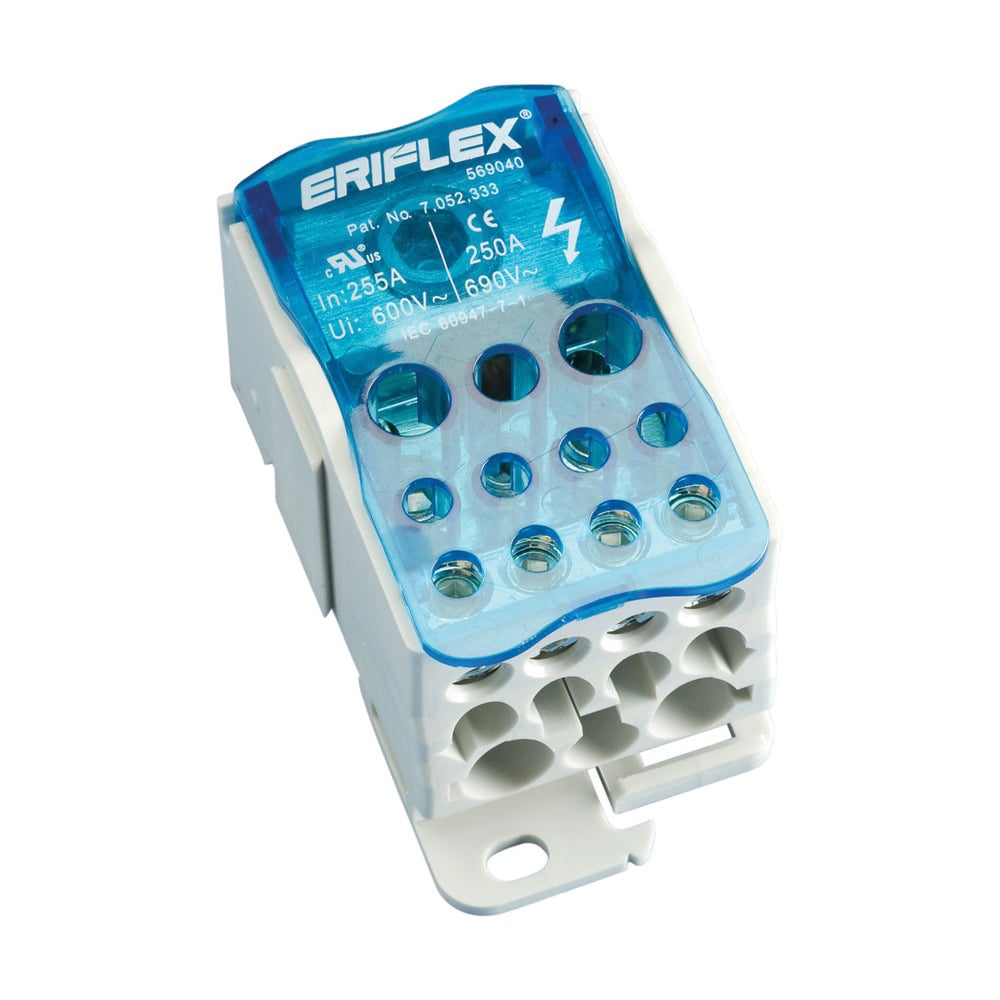

nVent ERIFLEX 569040 Single Pole Dist. Block, 255 A UL/CSA, Cable Line, 11 Cables Load, Copper

Product Description

The nVent ERIFLEX 569040 is a distribution block designed for secure power connections. It accommodates up to eleven conductors and supports an amperage of two hundred fifty-five. This block is suitable for use in various electrical applications, particularly in environments where reliable performance is essential.

• Designed for copper conductors and offers options for aluminum connections.
• Supports voltage ratings up to one thousand VAC/DC.
• Complies with UL and CSA standards for safety.

Product Highlights

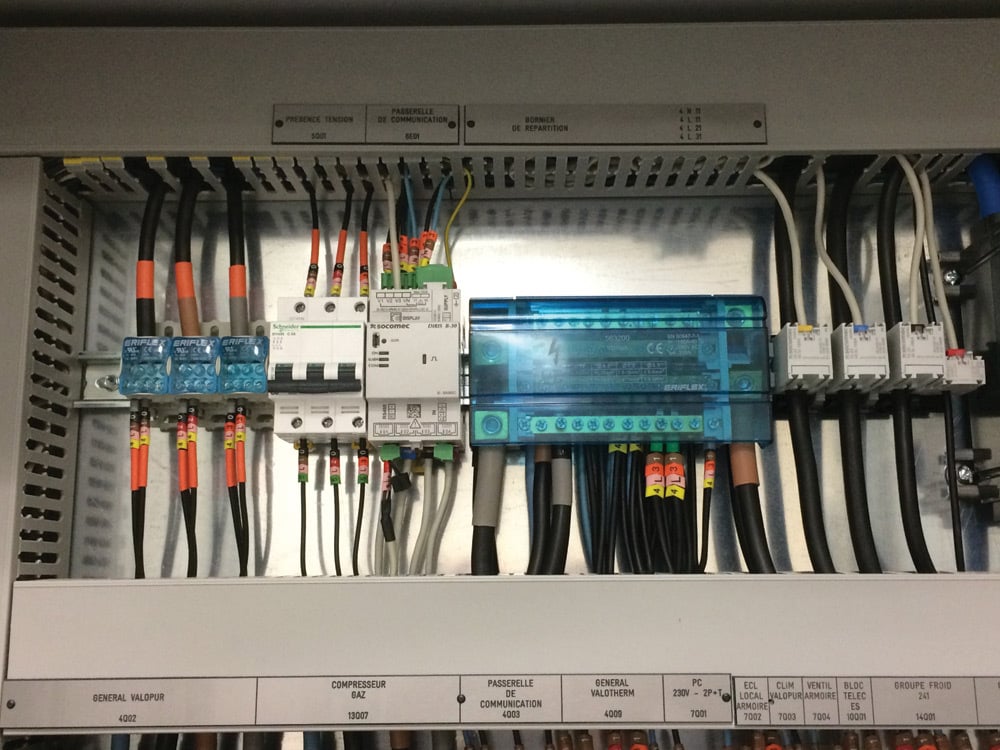

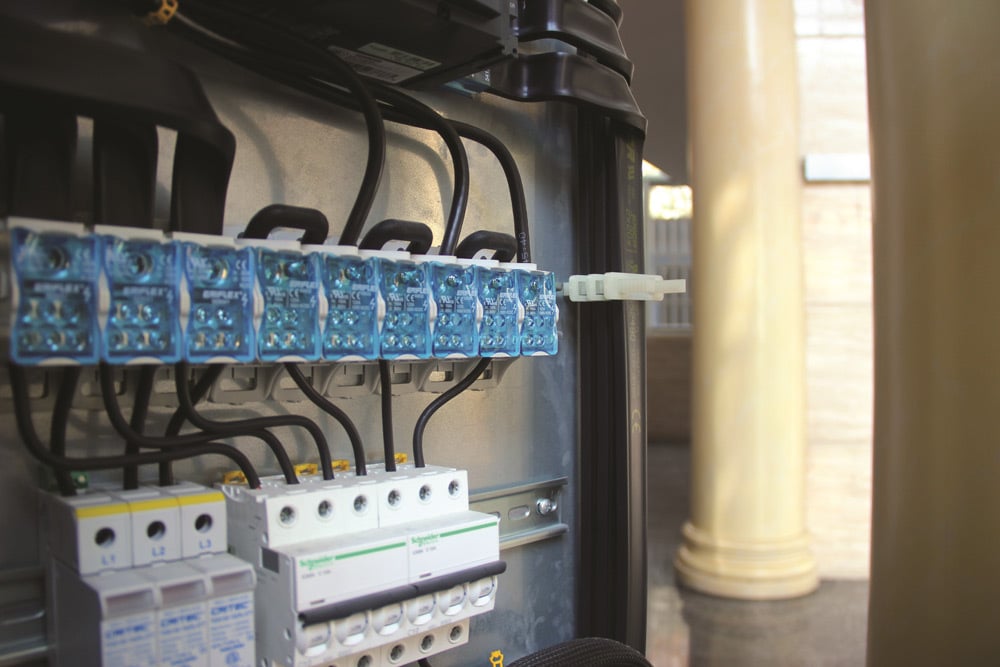

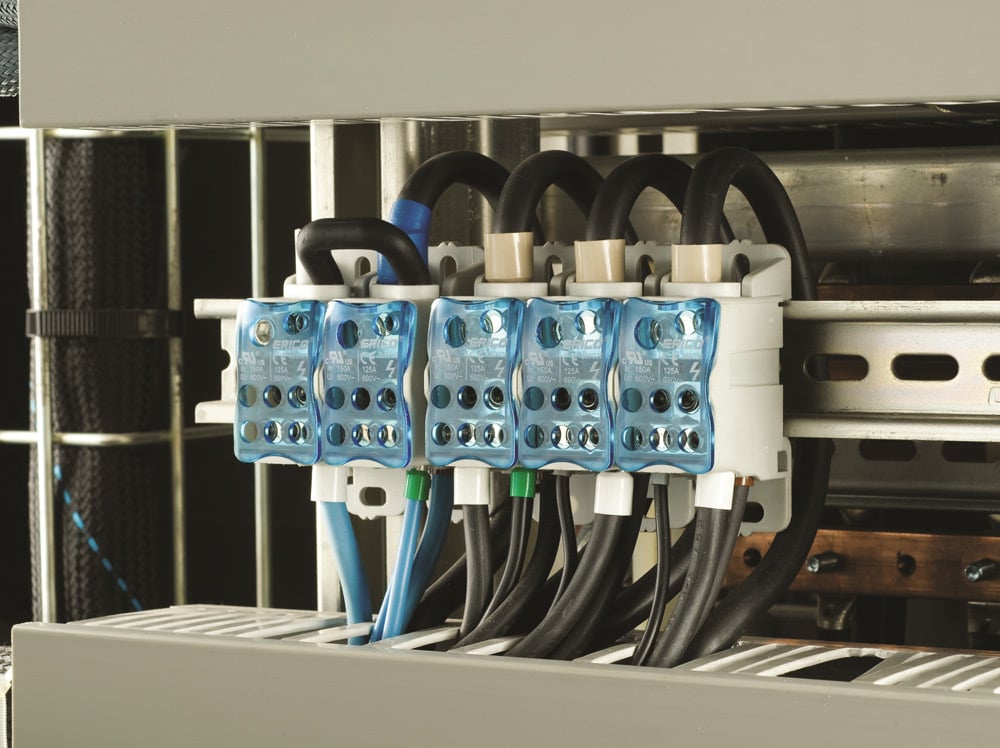

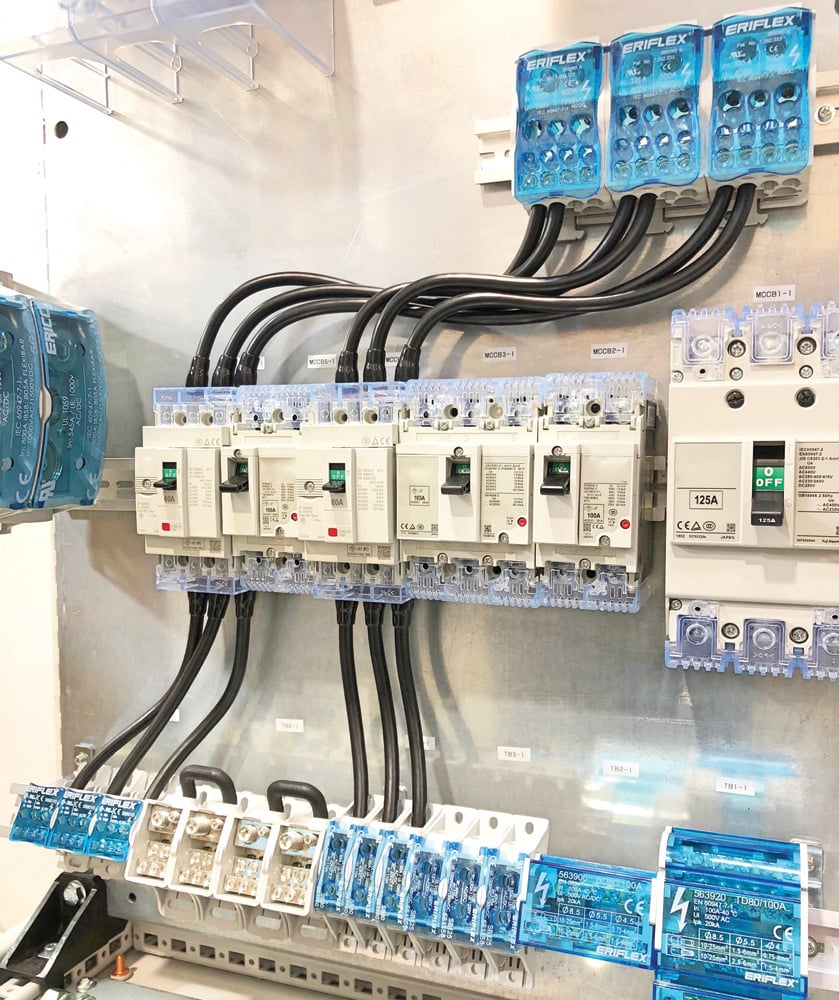

Ideal for power distribution needs, this block provides robust connections while enabling easy visual inspections.

Product Information

Standard Information

• Manufacturer: nVent
• Brand: nVent ERIFLEX

Technical Specifications

• Catalog Number: 569040
• Voltage Rating: 1,000 VAC/DC; 600 V
• Amperage Rating: 255 A
• Number of Poles: 1
• Number of Conductors: 11 Cables
• Conductor Range: 250 kcmil; #1
• Dimensions: 1.93 inches W x 1.99 inches D x 3.79 inches H
• Environmental Conditions: 86 to 167 Deg F
• Temperature Rating: 185 Deg F
• Finish: Tinned
