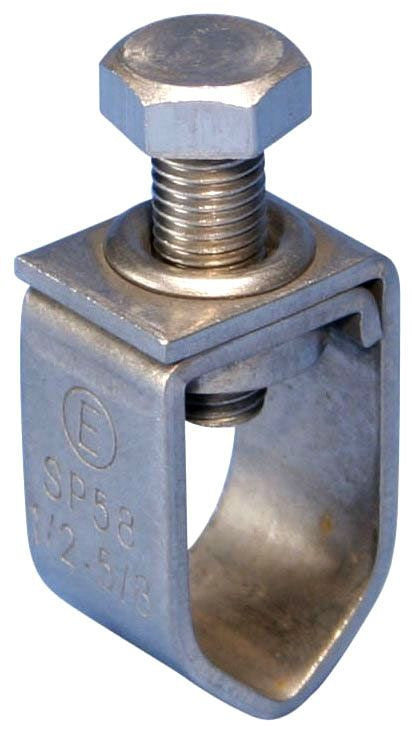

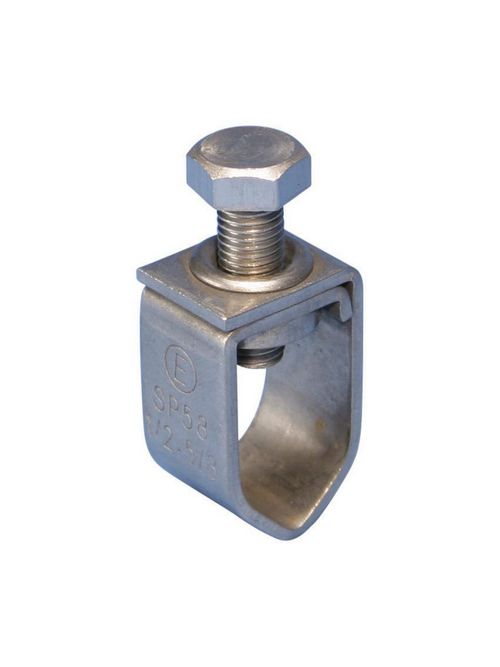

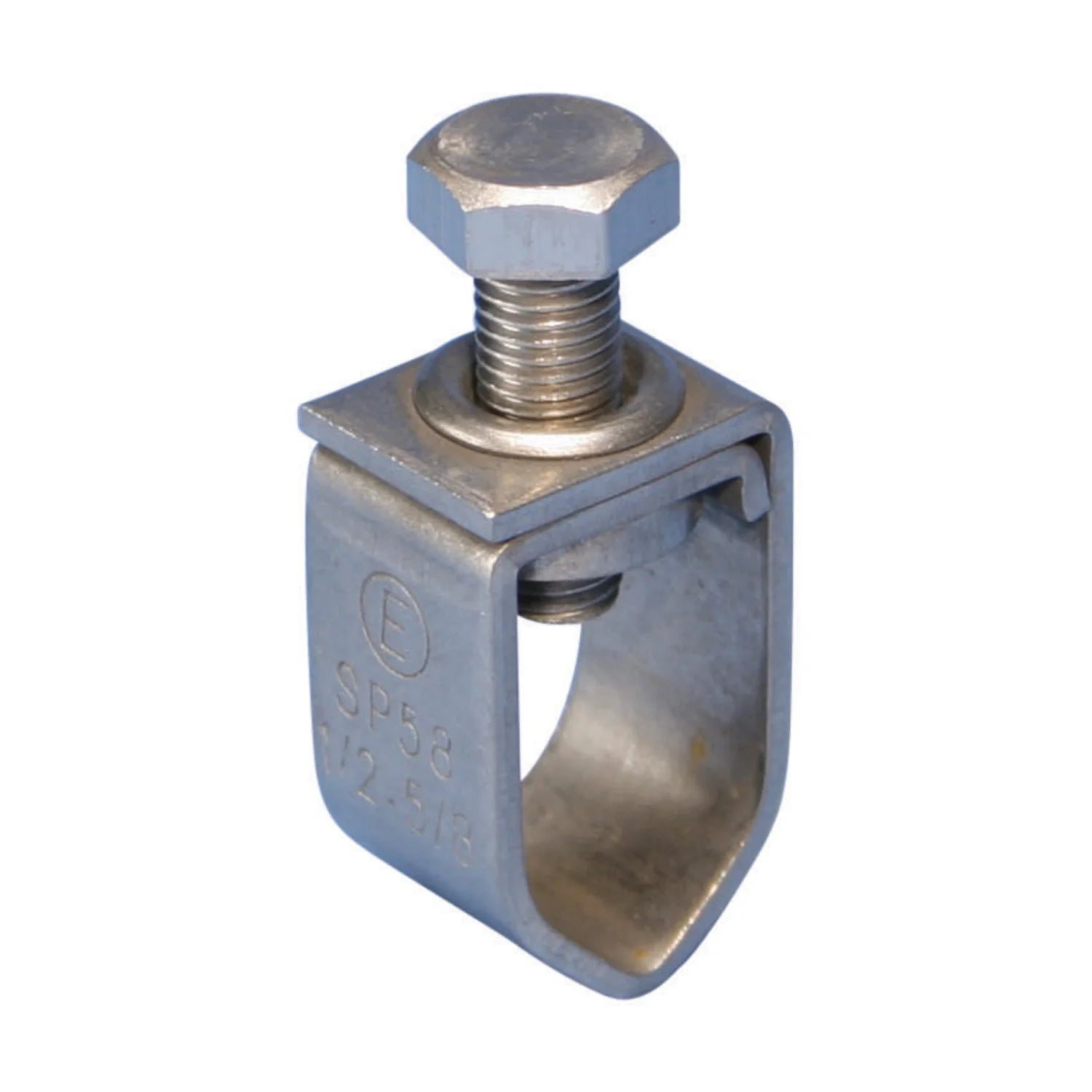

Nvent Erico SP58 Ground Rod Clamp 1/2 inches - 5/8 inches

Product Description

The nVent ERICO SP58 ground rod clamp provides a greater surface area contact to allow improved performance of the connector. The unique stamped body design will not crack from excessive torque. It is suitable for 1/2" to 5/8" diameter rods and is used for grounding and bonding applications.

• Unique stamped body design will not crack from excessive torque
• Provides a greater surface area contact to allow improved performance of the connector
• Compatible with copper, copper bonded, galvanized, stainless steel, rebar and plain steel ground rods and electrodes

Product Highlights

The SP58 ground rod clamp is made of stainless steel and is suitable for grounding and bonding applications.

Product Information

Standard Information

• Brand: NVENT ERICO
• Manufacturer Part Number: SP58
• Country of Origin: China

Technical Specifications

• Type: Ground Rod Clamp, Stainless Steel
• Brand: nVent Erico
• Torque: 300 lb-in
• Material: Stainless Steel 304 (EN 1.4301)
• Sub Brand: ERICO
• Application: Grounding and Bonding
• Special Features: CLAMP,GROUNDING,ROD 1/2 THRU 5/8 ROD,SS
• Item Type: Ground Rod to Conductor
• Rod Size: 1/2 to 5/8 in
• Conductor Size: 10 to 2 AWG Stranded, 6 to 25 sq-mm Stranded
• Conductor Type: Stranded
• Connection Type: Rod to Conductor
• Additional Information: Wrench Size 1/2 Inch
• Used On: Rebar/Plain Steel Ground Rod
• Category: Ground Rods & Grounding Systems
• Manufacturer: Pentair, Inc.
• Manufacturer Brand: nVent ERICO
• Product Description: Erico SP58 1/2 Thru 5/8 Grounding Rod Clamp
• Sub-Category: Conduit To Rod Clamp
• Product Name: Grounding Rod Clamp
• Ground Rod Diameter, Nominal: 1/2" - 5/8"
• Ground Rod Diameter, Actual (Ø): 0.500" - 0.62"
• Wrench Size: 1/2"
• Grounding and Bonding: Grounding and Bonding
• Diameter: 1/2 in, 5/8 in
• Allowable Gauge Range: 10 - 4
