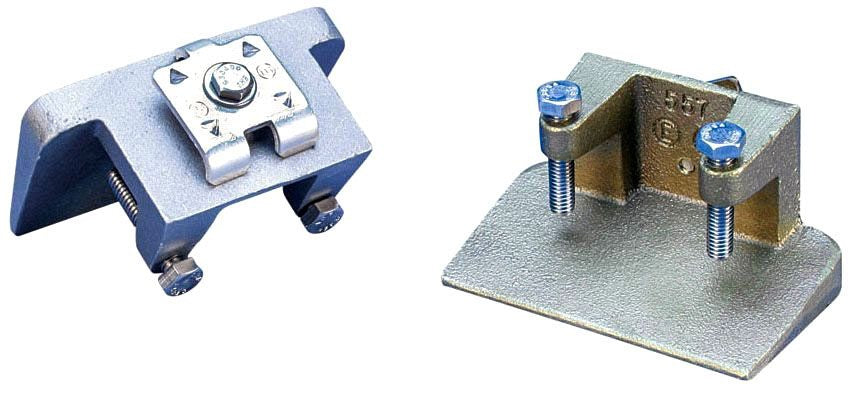

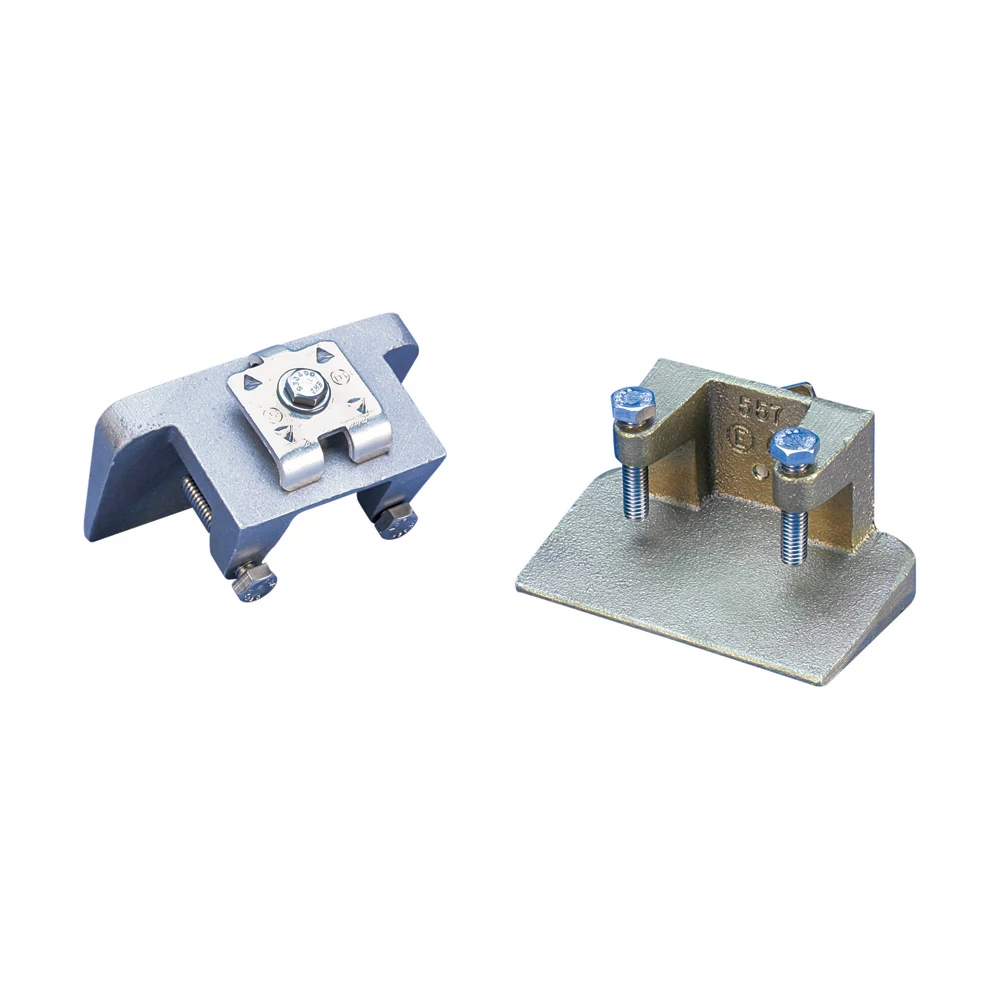

nVent Erico LPC557L Cast Two Bolt Beam Bonding Clamp, Copper, Tinned, 1 Max Flange Thickness

Product Description

nVent Erico LPC557L is a cast two-bolt beam bonding clamp made from tinned copper. This clamp serves as an important component in lightning protection systems by providing a reliable connection for bonding cables to flat metal surfaces, including I-beams and channel irons. It supports a maximum flange thickness of one inch and is designed to accommodate a conductor size of four-aught AWG.

• Clamps cable to metal surfaces securely
• Rated for use with four-aught AWG conductors
• UL listed for reliable performance in lightning protection

Product Highlights

Use the LPC557L for grounding and bonding applications. This clamp is vital for ensuring safety and compliance in electrical installations.

Product Information

Standard Information

• Brand: nVent Erico
• Manufacturer: Erico, Inc

Technical Specifications

• Material: Copper
• Finish: Tinned
• Conductor Size: 4/0 AWG
• Height: 2 inches
• Width: 4 inches
• Depth: 2.75 inches
• Weight: 0.95 kg
• Certification: UL
