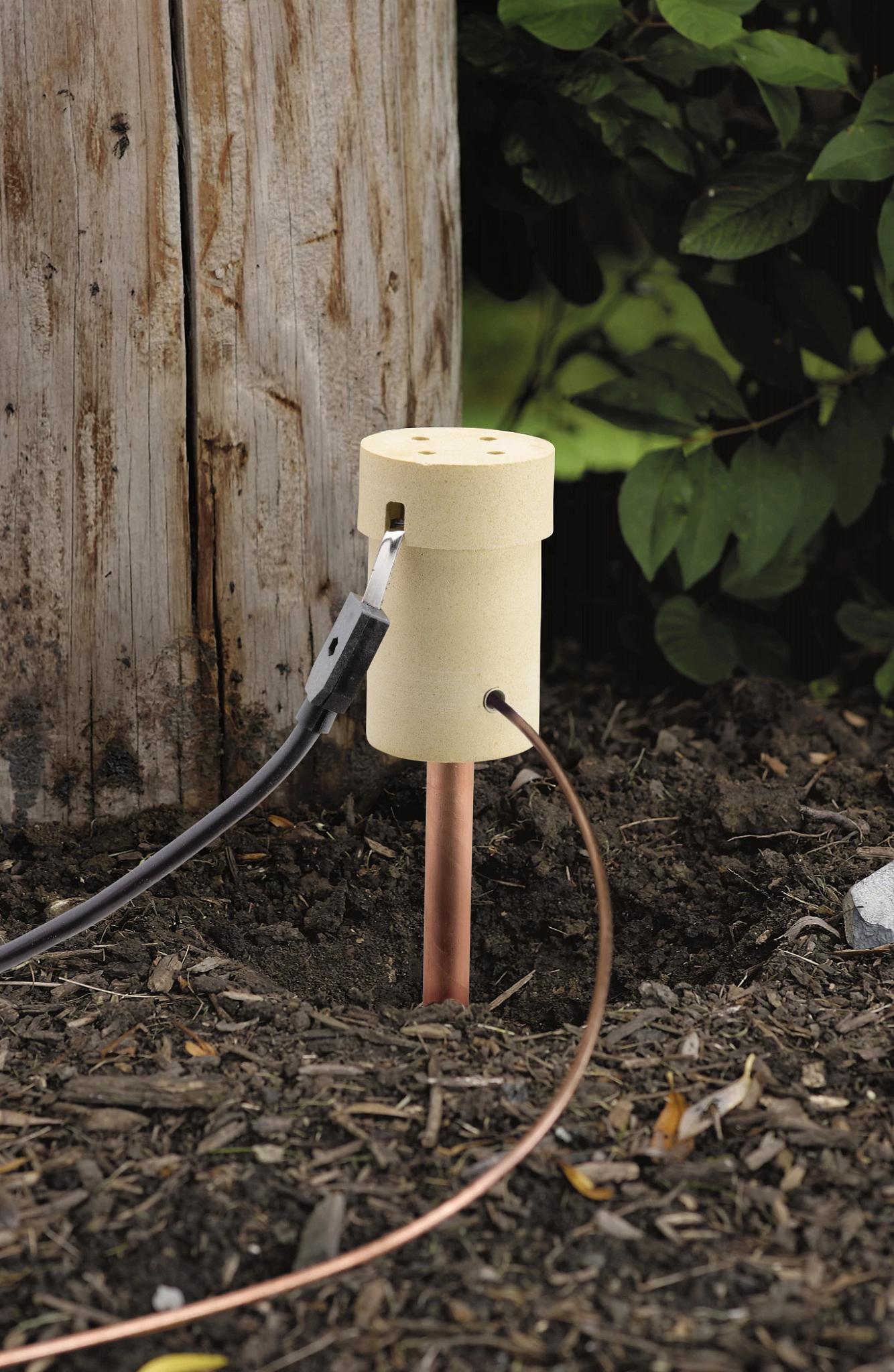

nVent Erico GT1181LPLUS Horizontal Through Cable to Vertical Ground Rod One Shot Tee Mold

Product Description

The nVent Erico GT1181LPLUS is designed for creating a one-shot permanent exothermic connection from cable to ground rod. This specific mold is ideal for use in grounding applications and is compatible with various conductor sizes. The product facilitates a reliable connection to rod sizes of three-quarter inches and supports 4 AWG to 3 AWG solid connections.

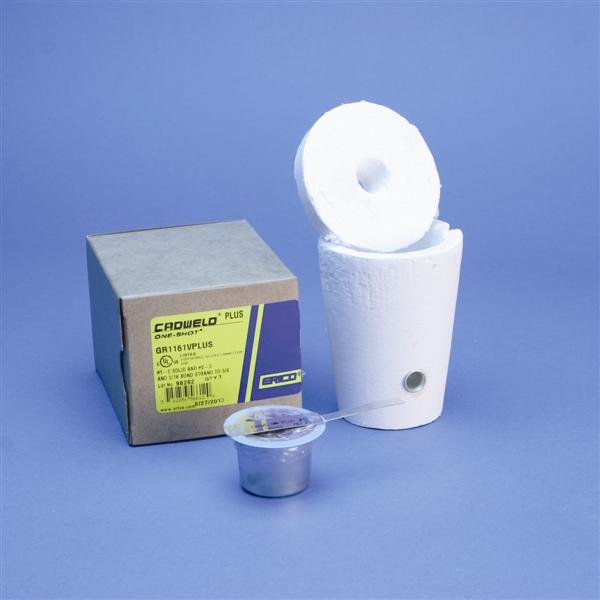

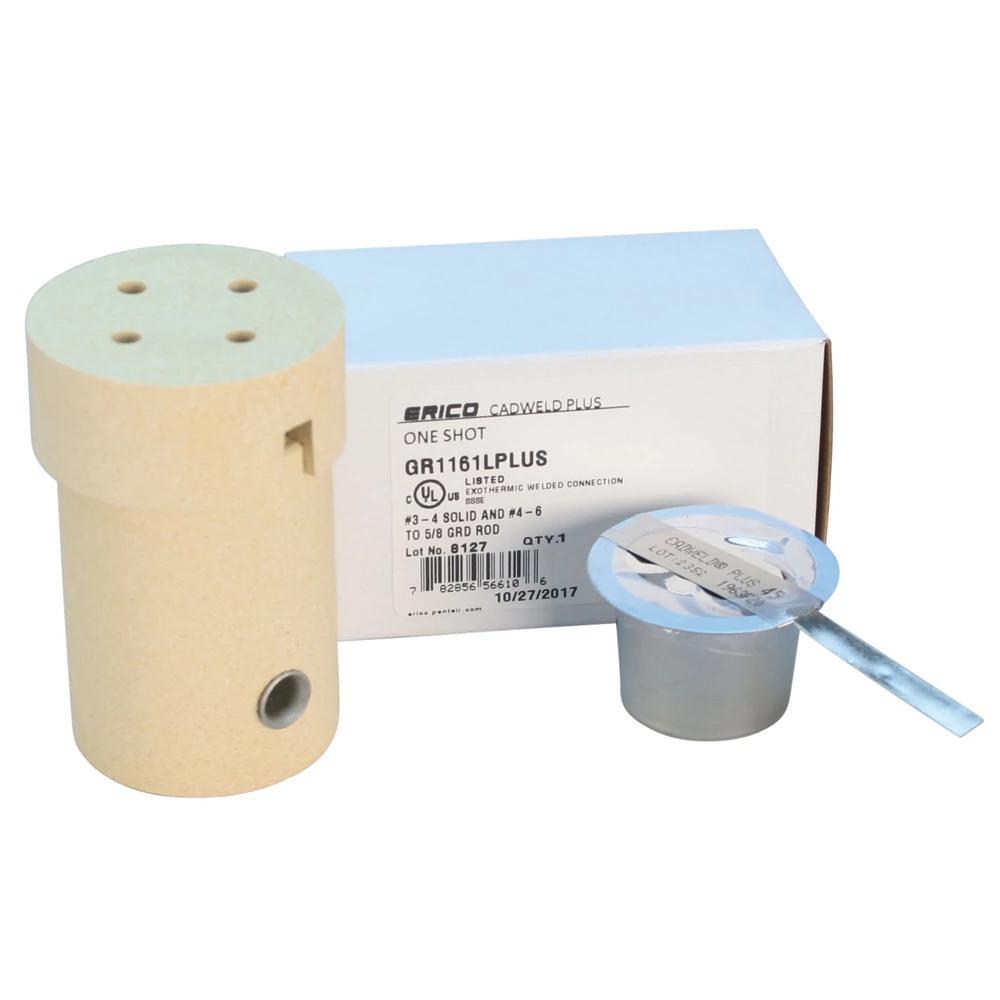

• Single use ceramic mold for exothermic welds.
• Compatible with plain copper-bonded and galvanized ground rods.
• Supports NEC compliance for safety and reliability.

Product Highlights

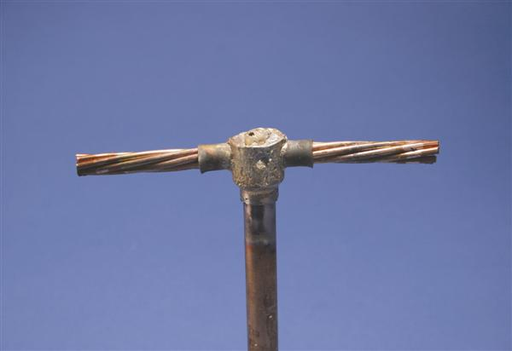

This mold effectively produces connections that will not corrode or loosen over time, ensuring long-lasting performance in various electrical applications.

Product Information

Standard Information

• Brand: nVent Erico
• Sub Brand: ERICO

Technical Specifications

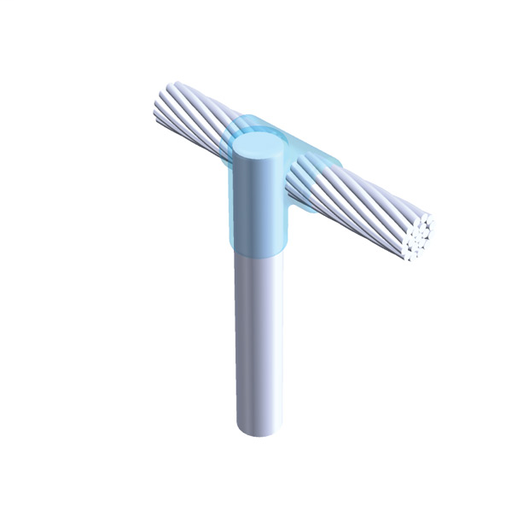

• Type: Cadweld® Plus One Shot, GT, Vertical Tee, Horizontal Through
• Conductor Size: 4 to 3 AWG Solid, 6 to 4 AWG Stranded
• Rod Size: 3/4 inch
• Connection Type: Cable to Ground Rod
• Material: Ceramic
• Standard: CULus
• Applications: Grounding and Bonding
• UPC: 782856566281
