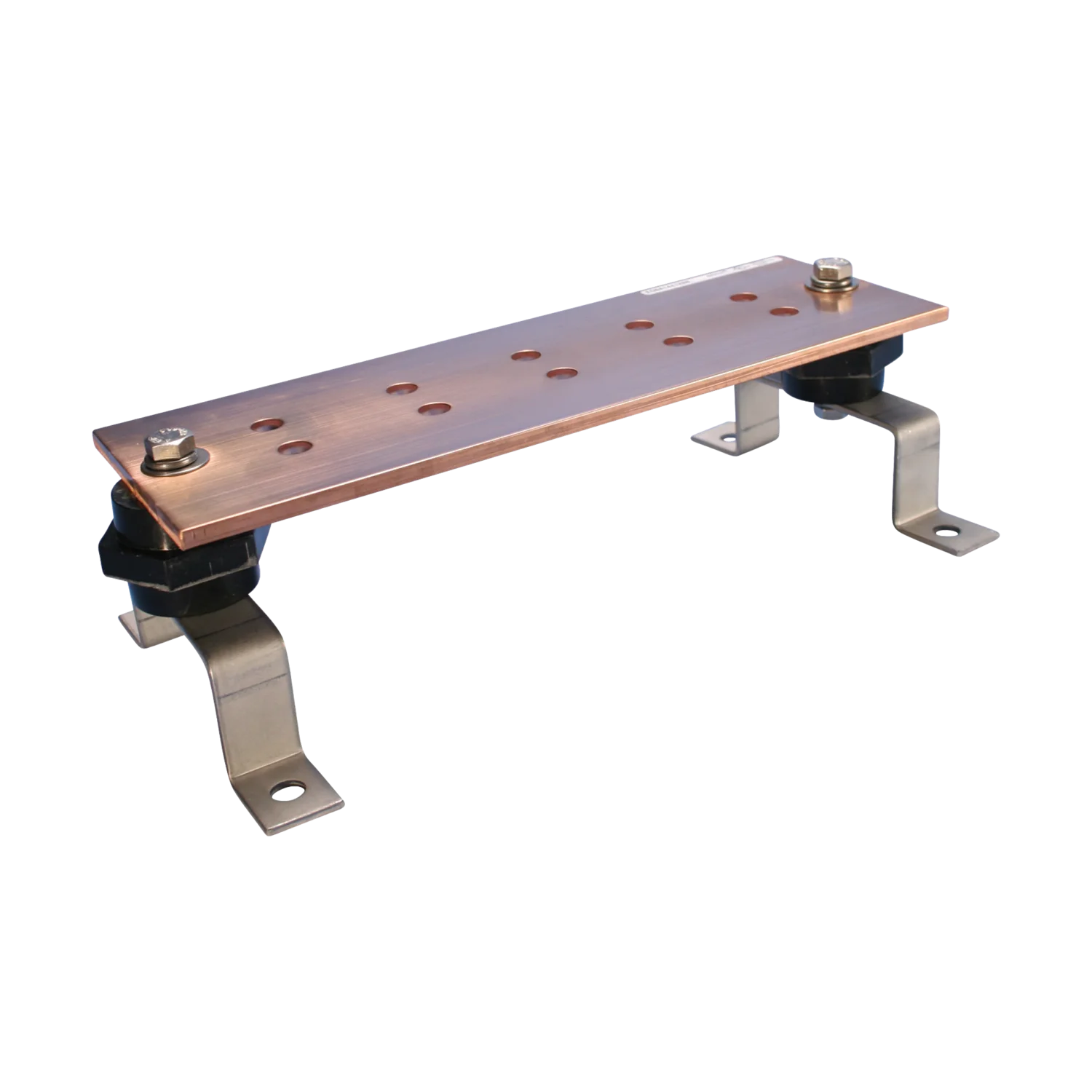

Nvent EGBA14412AA Grounding Busbar AA, 12 inches x 4 inches x 0.25 inches

Product Description

The NVENT EGBA14412AA grounding busbar is essential for creating an equipotential plane between service grounds and equipment during fault and transient conditions. This equipotential plane provides a near-zero voltage differential, protecting people and equipment. It measures 12" x 4" x 0.25" with an AA hole pattern.

• Provides a convenient, single-point grounding and bonding location
• Conductors are welded to the bar using a nVent ERICO Cadweld exothermic connection or are mechanically fastened by using lugs
• Custom bars can be designed and manufactured to customer specifications

Product Highlights

The grounding busbar is the most popular bonding product in use today.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: EGBA14412AA
• Country of Origin: US - United States

Technical Specifications

• Material: Copper
• Busbar Configuration: Busbar, Insulators and Brackets
• Hole Pattern: AA
• Mounting Hole Size: 0.44"
• Length (L): 12"
• Width (W): 4"
• Thickness (T): 1/4"
• Tin Plating: No
• Pigtail Included: No
