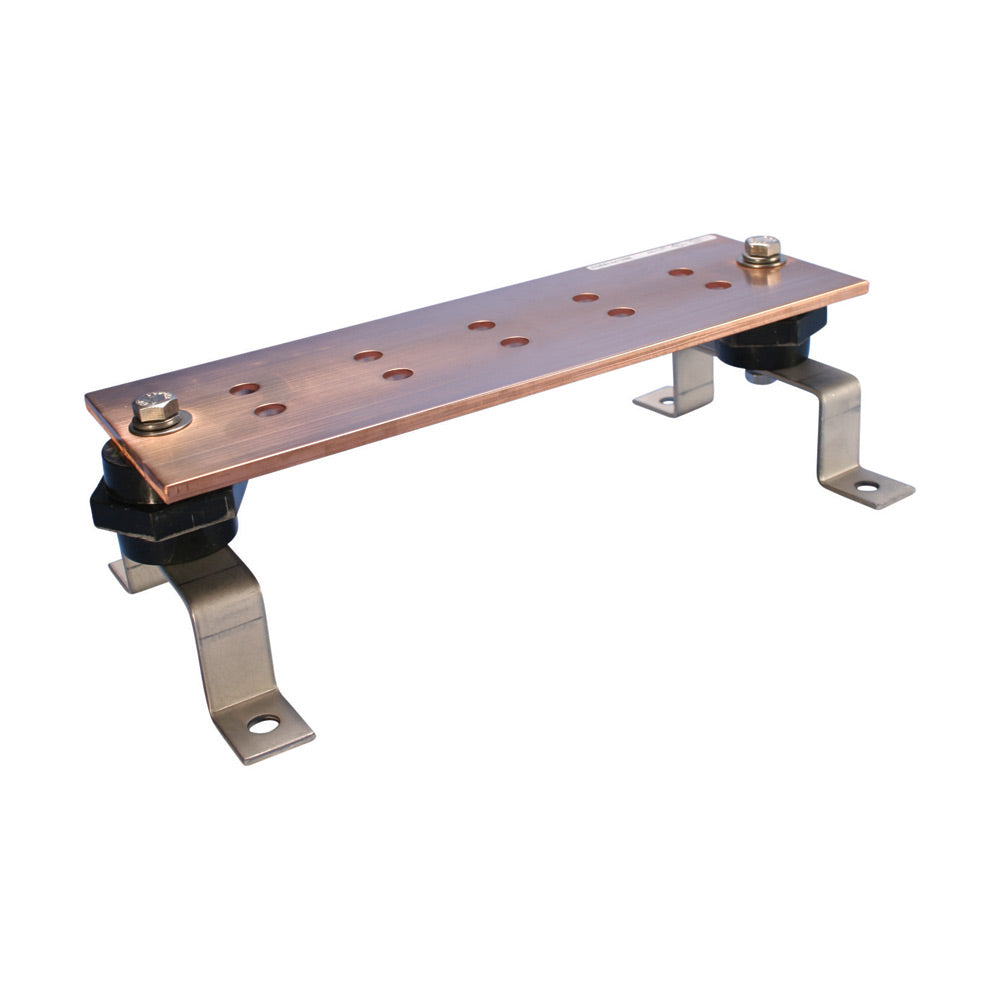

nVent EGBA14212HH ERICO BAR ASSY,GRD BUS,1/4X2X12,W/INSUL & BRKTS

Product Description

nVent ERICO Grounding Busbar, MPN: EGBA14212HH, is designed for grounding and bonding applications. This busbar has a bar width of 2 inches and a length of 12 inches. It is made of copper and features 1/4 inch bar thickness and HH hole style with a hole diameter of 7/16 inch.

• Provides a convenient, single point grounding and bonding location.
• Conductors are welded to the bar using a nVent ERICO CADWELD exothermic connection or are mechanically fastened by lugs.
• Custom bars can be designed and manufactured to customer specifications.

Product Highlights

Used in facility electrical protection and various applications including lightning protection, telecommunications, and utility systems.

Product Information

Standard Information

• Manufacturer: nVent
• UPC: 78285644526

Technical Specifications

• Application: Facility Electrical Protection, Lightning Protection, Panel, Rail, Telecom and Utility Applications
• Bar Length: 12 inches
• Bar Thickness: 1/4 inch
• Bar Width: 2 inches
• Hole Diameter: 7/16 inch
• Hole Style: HH
• Manufacturer Part Number: EGBA14212HH
• Material: Copper
• Series: EGBA Series
• Standards/Approvals: cULus Listed, UL Listed, ASTM B187-C11000
