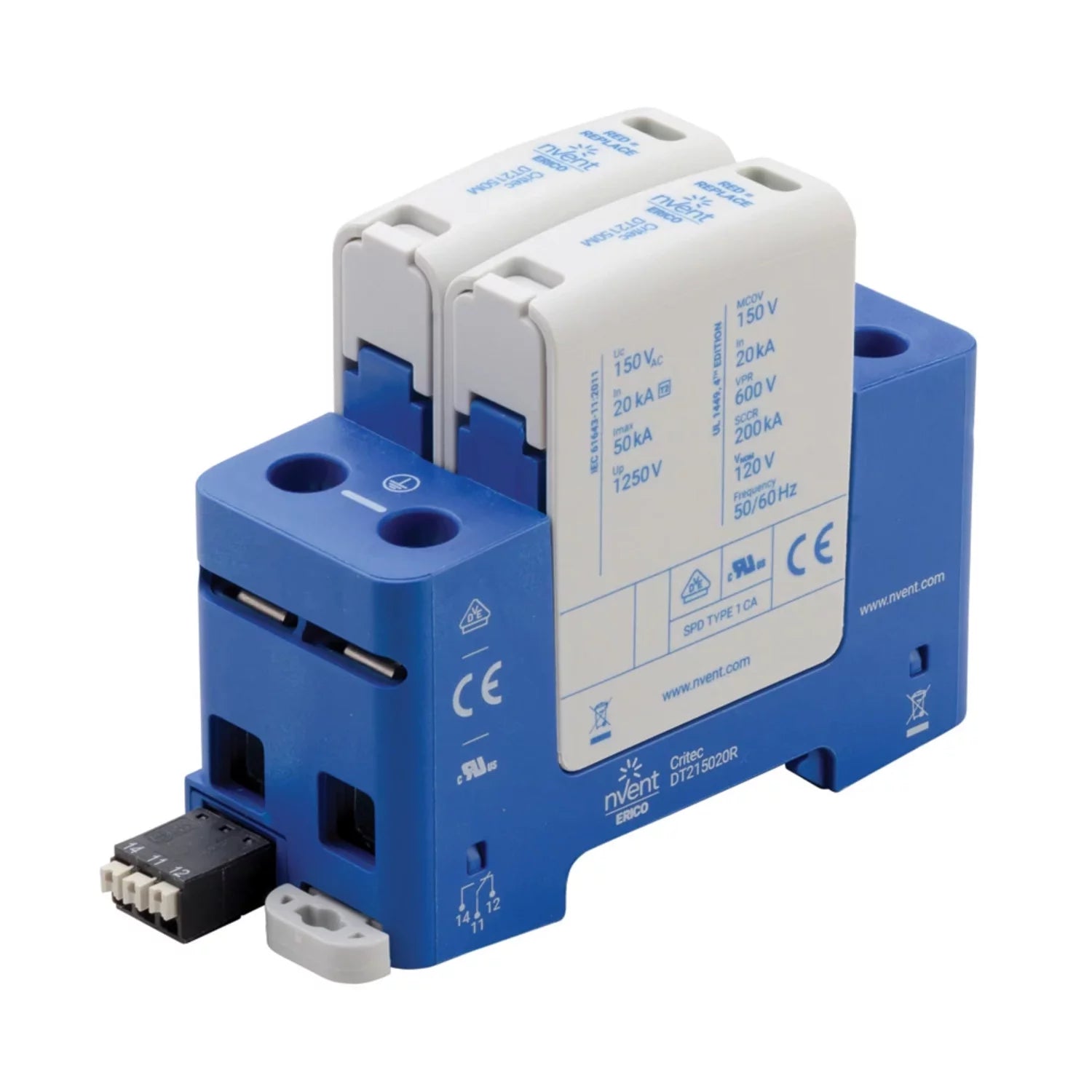

NVENT EDT215020R DIN Rail Surge Protection Device

Product Description

The NVENT Erico EDT215020R is a DIN rail surge protection device designed to prevent voltage surges in electrical systems. This Class II device operates in 2+0 mode, ensuring effective protection for both line-to-neutral and neutral-to-ground connections. It utilizes thermal disconnect technology, providing reliable operation and safety.

• Nominal system voltage of one hundred twenty volts
• Maximum discharge current of fifty kiloamperes (8/20 microseconds)
• Equipped with a mechanical flag for easy status indication

Product Highlights

The EDT215020R is suitable for installation on a thirty-five millimeter DIN rail. It is engineered for environments where electrical surges can occur, making it ideal for various applications, from industrial settings to commercial buildings.

Product Information

Standard Information

• Brand: NVENT
• MPN: EDT215020R

Technical Specifications

• Nominal System Voltage (Un): 120 V
• Max Continuous Operating Voltage (Uc): 150 V
• Nominal Discharge Current (In), IEC: 20 kA 8/20 microseconds
• Max Discharge Current (Imax), IEC: 50 kA 8/20 microseconds
• Voltage Protection Level (Up): 1250 V
• Back-Up Fuse @ Isccr: 250 A @ 50 kA; 315 A @ 25 kA
• Frequency: 50 - 60 Hz
• Response Time: 25 ns Max
• Protection Modes: L-N; N-PE
• Short Circuit Current Rating (Isccr): 25 kA; 50 kA
• Temporary Over Voltage 120 min (Ut/mode): 300 V Withstand
• Nominal Discharge Current (In), UL: 20 kA 8/20 microseconds
• Short Circuit Current Rating (SCCR): 200 kA
• Voltage Protection Rating (VPR): 700 V
• Technology: Thermal Disconnect
• Connection, Solid: 35 mm² Max
• Connection, Stranded: #4 max
• Torque (TQ): 4.5 N·m
• Humidity: 5 - 95
• Temperature: -31 to 185 °F
• Enclosure Material: UL® 94V-0 Thermoplastic
• Enclosure Rating: IP 20
• Mounting: 35 mm top hat DIN rail
• Remote Contact Switching Capacity: 1 A @ 250 VAC; 1 A @ 125 VAC; 0.5 A @ 48 VDC; 0.5 A @ 24 VDC; 0.5 A @ 12 VDC
• Remote Contacts: Yes
• Status Indication: Mechanical flag
• Depth (D): 69 mm
• Height (H): 90 mm
• Width (W): 36 mm
• Unit Weight: 0.26 kg
• Certification Details: UL® 1449 Edition 5 Type 1CA
• Complies With: EN 61643-11 Type 2; IEC® 61643-11 Class II
• Replacement Module: EDT2150M
