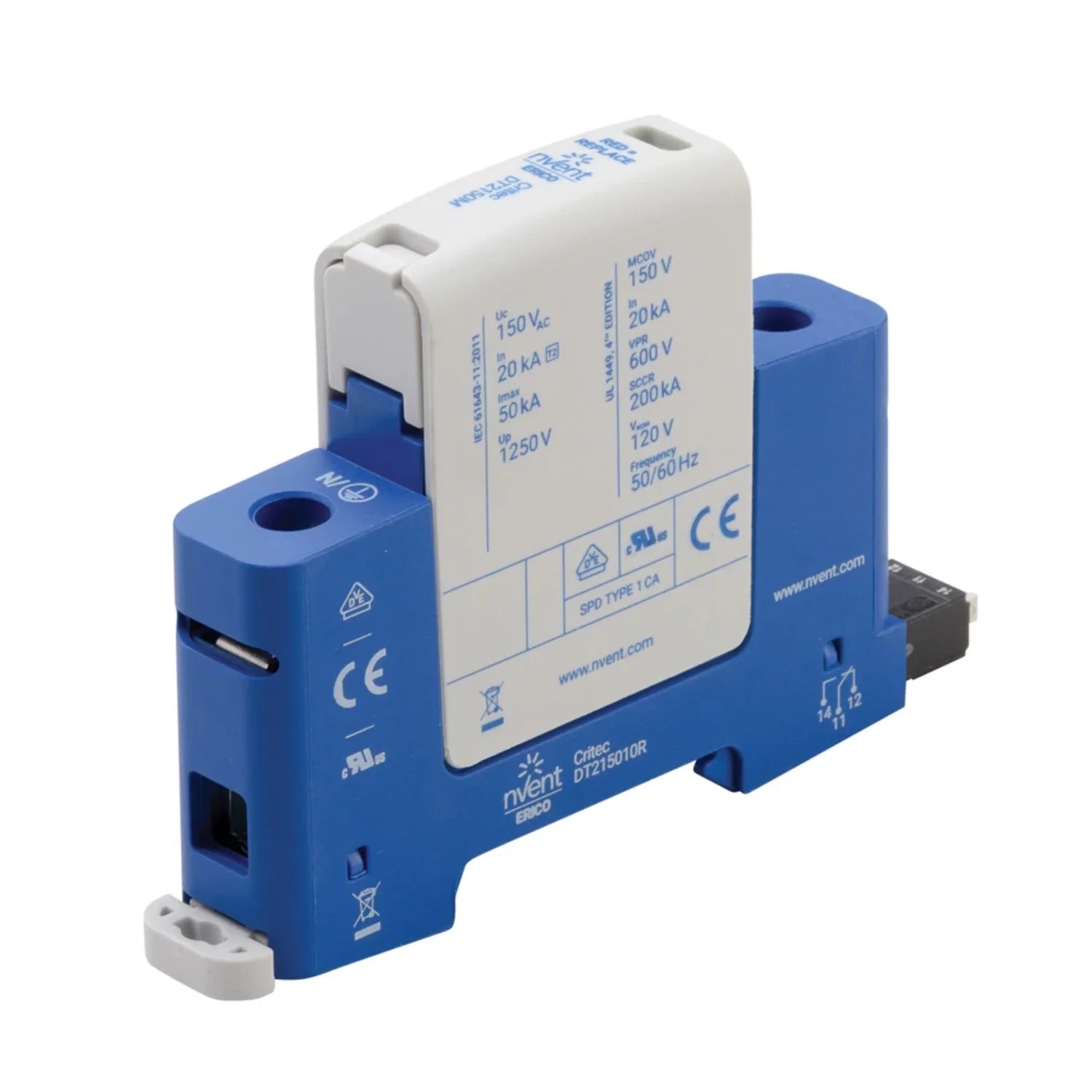

NVENT EDT215010R EDT2 Enhanced DIN Rail Surge Protection

Product Description

The NVENT EDT215010R is an enhanced DIN rail surge protection device that protects electrical systems from voltage spikes. It has a nominal system voltage of one hundred twenty volts and operates in a one plus zero mode. This device features thermal disconnect technology and a pluggable design for easy replacement. Status indication is available through a mechanical flag, and it supports remote monitoring via change-over contacts.

• Class II surge protection device
• Provides red/green status indication for remote monitoring
• Enhanced temporary overvoltage withstand capability

Product Highlights

This surge protector is reliable and designed for superior performance in electrical systems. It mitigates potential damage from power surges, making it essential for use in various industrial and commercial applications.

Product Information

Standard Information

• Brand: NVENT
• MPN: EDT215010R

Technical Specifications

• Nominal System Voltage (Un): 120 V
• Max Continuous Operating Voltage (Uc): 150 V
• Nominal Discharge Current (In), IEC: 20kA 8/20 μs
• Max Discharge Current (Imax), IEC: 50kA 8/20 μs
• Voltage Protection Level (Up): 1250 V
• Back-Up Fuse @ Isccr: 250 A @ 50 kA; 315 A @ 25 kA
• Frequency: 50 - 60 Hz
• Response Time: 25 ns Max
• Protection Modes: L-PE; N-PE; L-PEN; L-N
• Short Circuit Current Rating (Isccr): 25 kA; 50 kA
• Temporary Over Voltage 120 min (Ut/mode): 300 V Withstand
• Nominal Discharge Current (In), UL: 20kA 8/20 μs
• Short Circuit Current Rating (SCCR): 200 kA
• Voltage Protection Rating (VPR): 700 V
• Technology: Thermal Disconnect
• Connection, Solid: #2 max
• Connection, Stranded: #4 max
• Torque (TQ): 3.32 ft·lbf
• Humidity: 5 - 95%
• Operating Temperature: -31 to 185 °F
• Enclosure Material: UL® 94V-0 Thermoplastic
• Enclosure Rating: IP 20
• Mounting Type: 35 mm top hat DIN rail
• Remote Contact Switching Capacity: 1 A @ 250 VAC; 1 A @ 125 VAC; 0.5 A @ 48 VDC; 0.5 A @ 24 VDC; 0.5 A @ 12 VDC
• Remote Contacts: Yes
• Status Indication: Mechanical flag
• Depth (D): 2.72
• Height (H): 3.54
• Width (W): 0.71
• Unit Weight: 0.3 lb
• Certification Details: UL® 1449 Edition 5 Type 1CA
• Complies With: EN 61643-11 Type 2; IEC® 61643-11 Class II
• Replacement Module: EDT2150M
