nVent ED1PB1 HOF PB ENCL Power Drawn 4-1/2 in x 2.88 in x 2.62 in Replacement MPN

Product Description

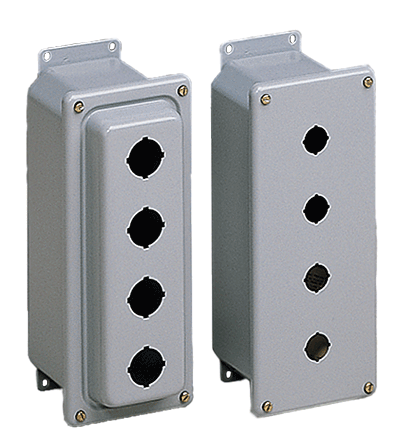

The nVent HOFFMAN ED1PB1 is a specifically designed pushbutton enclosure made from drawn steel. It measures 4-1/2 inches in length, 2.88 inches in width, and 2.62 inches in depth. This enclosure is rated NEMA 4/IP66, offering solid protection against dust and water. It features a flat cover and is suitable for wall mounting.

• Constructed from 16-gauge drawn steel
• Includes one outlet and factory stamped pushbutton holes
• Oil-resistant gasket for durability

Product Highlights

This enclosure is ideal for holding 30.5-mm or 22.5-mm pushbuttons and switches, ensuring secure operation in various environments.

Product Information

Standard Information

• Manufacturer: nVent
• MPN: ED1PB1

Technical Specifications

• Application: For holding 30.5 mm or 22.5 mm 4-way pushbuttons and switches
• Color: Gray
• Cover Type: Flat
• Depth: 2.62 inches
• Finish: ANSI 61 Polyester Powder Painted
• Length: 4.5 inches
• Material: Steel
• Mounting Type: Wall
• NEMA Rating: NEMA 4/IP66
• Number of Outlets: 1
• Standards/Approvals: cUL Listed per CSA C22.2 File No. 94, IEC 60529, UL 508A
• Width: 2.88 inches
