nVent E4PBAM Sloped Front Pushbutton Enclosure 3-1/2 in L x 10 in W x 4.84 in D NEMA 12/IP65

Product Description

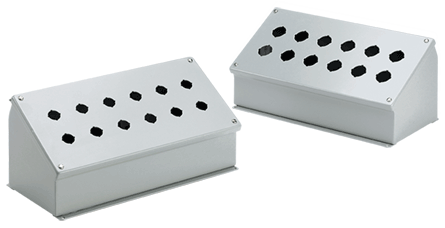

The nVent HOFFMAN E4PBAM is a sloped front pushbutton enclosure designed for panel mounting. Its dimensions are three and a half inches in length, ten inches in width, and four point eighty-four inches in depth. This enclosure meets NEMA 12/IP65 standards making it suitable for various applications in environments requiring protection from dust and water.

• Made of durable steel with an ANSI 61 polyester powder-coated finish
• Includes four outlets for easy installation of pushbuttons or switches
• Features a hinged cover for convenient access during maintenance

Product Highlights

The E4PBAM enclosure is designed to hold 30.5 mm or 22.5 mm pushbuttons while providing a slanted control surface. Ideal for various electrical applications.

Product Information

Standard Information

• Manufacturer: nVent
• Manufacturer Part Number: E4PBAM

Technical Specifications

• Application: For holding 30.5 mm or 22.5 mm pushbuttons and switches, where slanted control surfaces are desired
• Color: Gray
• Cover Type: Hinged
• Depth: 4.84 inches
• Finish: ANSI 61 Polyester Powder Painted
• Length: 3.5 inches
• Material: Steel
• Mounting Type: Panel
• NEMA Rating: NEMA 12/IP65
• Number of Outlets: 4
• Series: PB1
• Standards/Approvals: cUL Listed per CSA C22.2 File No. 94
• Width: 10 inches
