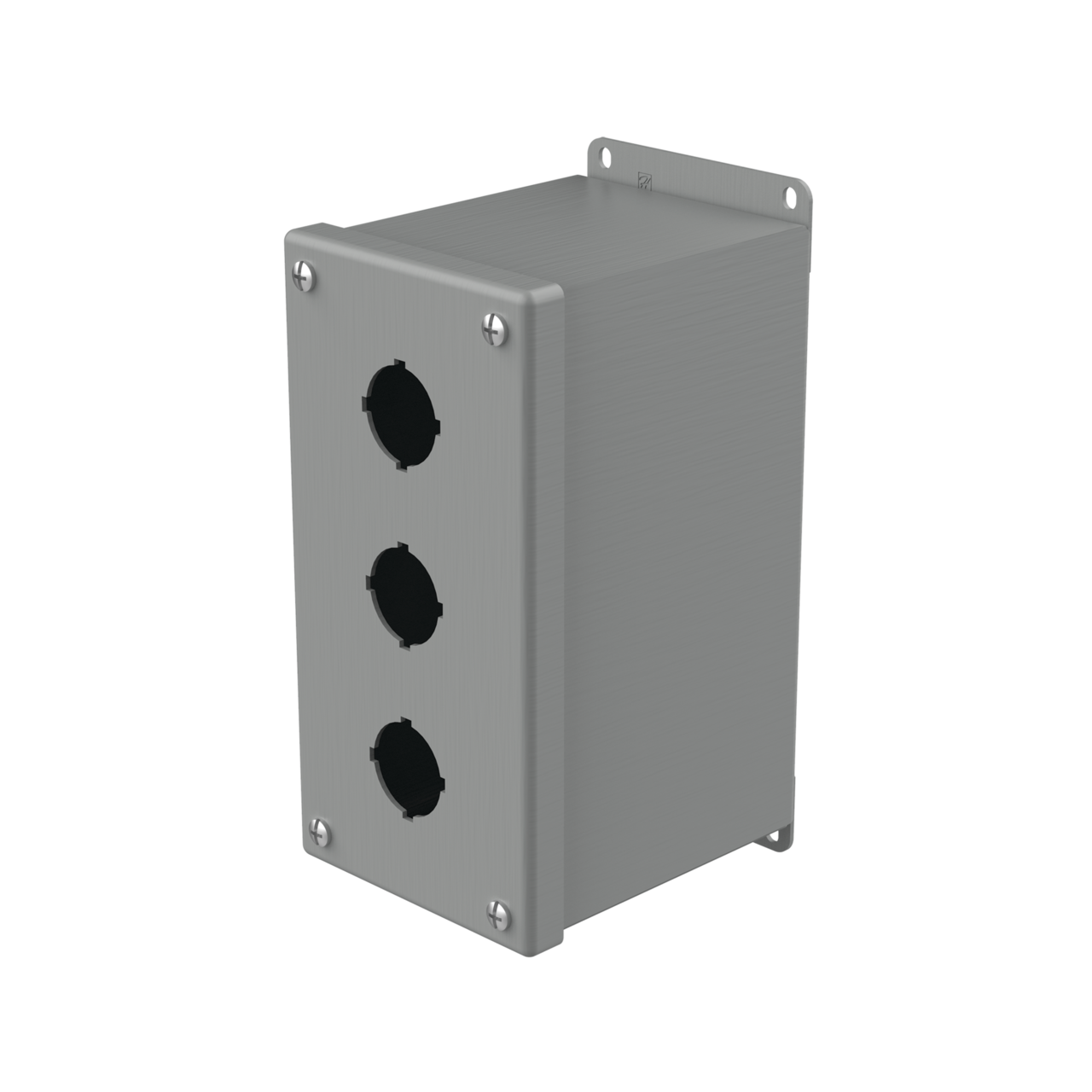

nVent E3PBX HOF OILTITE PB ENCL Extra Deep Pushbutton Enclosure

Product Description

nVent HOFFMAN E3PBX is a pushbutton enclosure designed for use with 30.5 mm and 22.5 mm pushbuttons and switches. The enclosure measures eight inches in length, four inches in width, and four and three-quarters inches in depth. It features a NEMA 12/IP65 rating, making it suitable for a range of environments, and comes with a hinged cover for ease of access.

• Designed for 30.5 mm and 22.5 mm pushbuttons and contact blocks
• Hinged cover for easy access and installation
• Constructed from steel with a durable finish

Product Highlights

This enclosure is suitable for wall mounting and has three outlet openings. Its design ensures durability and protection of internal components in various operating conditions.

Product Information

Standard Information

• Manufacturer: nVent
• MPN: E3PBX

Technical Specifications

• Application: For holding 30.5 mm or 22.5 mm pushbuttons and switches
• Color: Gray
• Cover Type: Hinged
• Depth: 4-3/4 inches
• Finish: ANSI 61 Polyester Powder Painted
• Length: 8 inches
• Material: Steel
• Mounting Type: Wall
• NEMA Rating: NEMA 12/IP65
• Number of Outlets: 3
• Series: PB1
• Standards/Approvals: cUL Listed per CSA C22.2 File No. 94, CSA File No. 42186, IEC 60529, UL 508A File No. E61997
• Type: Extra Deep
• Width: 4 inches
