nVent E3PB HOF OILTITE PB ENCL 8 in x 3-1/4 in x 2-3/4 in Replacement MPN

Product Description

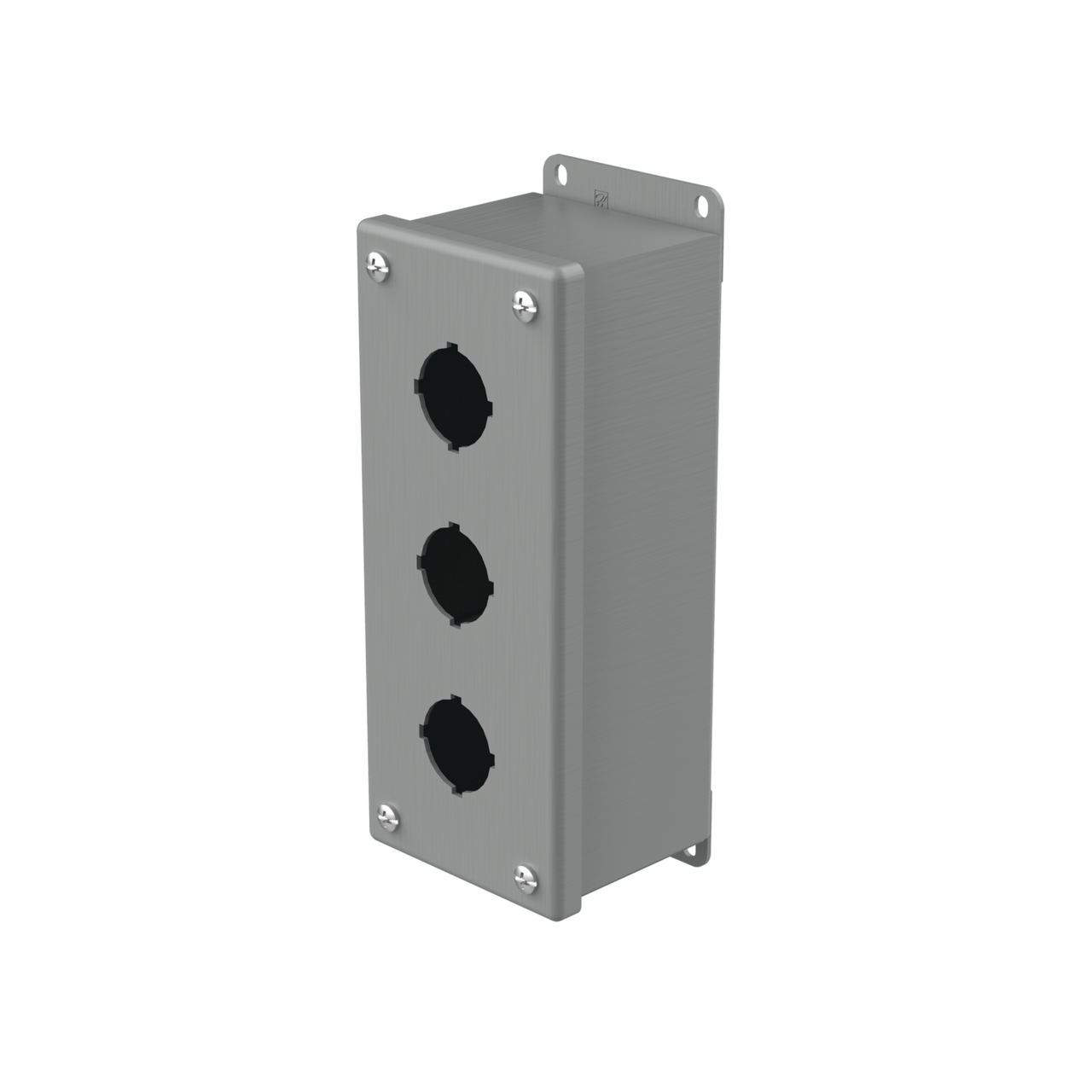

The nVent HOFFMAN E3PB is a pushbutton enclosure designed for electrical applications. It measures eight inches in length, three and one-quarter inches in width, and two and three-quarter inches in depth. This enclosure features three outlets and complies with NEMA 12/IP65 standards, ensuring protection against dust and moisture. Made from steel, the enclosure is suitable for wall mounting and is ideal for use with 30.5 mm or 22.5 mm pushbuttons and switches.

• Designed for 30.5 mm or 22.5 mm pushbuttons and switches
• Seams are continuously welded and ground smooth
• Grounding nut included in the body of the enclosure

Product Highlights

This product features a hinged cover and an oil-resistant gasket, providing added protection and ease of access during installation and maintenance.

Product Information

Standard Information

• Manufacturer: nVent
• Manufacturer Part Number: E3PB

Technical Specifications

• Application: For holding 30.5 mm or 22.5 mm pushbuttons and switches
• Color: Gray
• Cover Type: Hinged
• Depth: 2-3/4 inches
• Finish: ANSI 61 Polyester Powder Painted
• Length: 8 inches
• Material: Steel
• Mounting Type: Wall
• NEMA Rating: NEMA 12/IP65
• Number of Outlets: 3
• Series: PB1
• Standards/Approvals: cUL Listed per CSA C22.2 File No. 94 File No. E61997|CSA File No. 42186|IEC 60529|UL 508A File No. E61997
• Width: 3-1/4 inches
