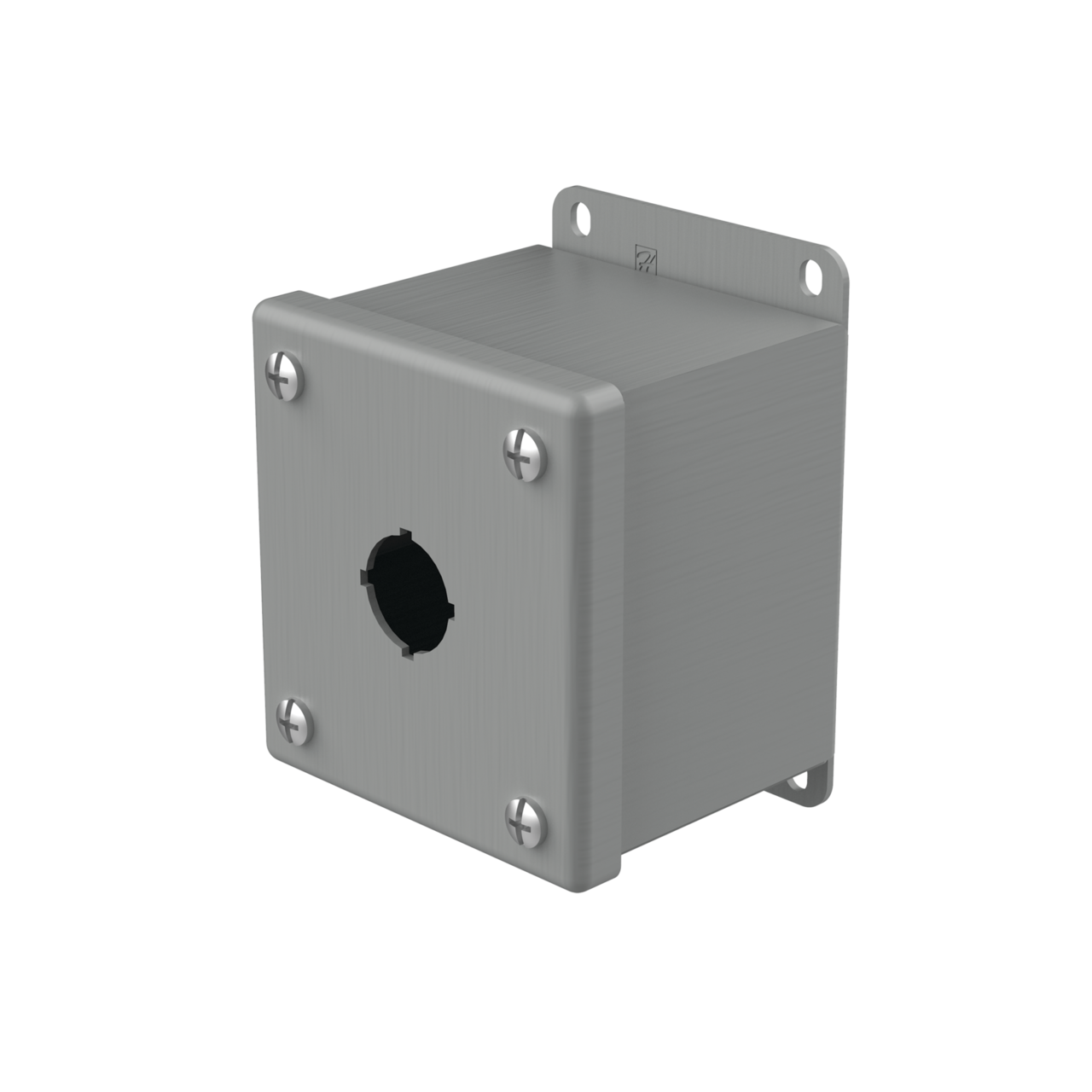

nVent E1PBG HOF Pushbutton Enclosure

Product Description

The nVent E1PBG Pushbutton Enclosure is designed for use in environments that require safety and reliability. Its size is three and a half inches in length, three and a quarter inches in width, and two and three-quarters inches in depth. This enclosure meets NEMA 12/IP65 ratings, providing protection against dust and water. It has one outlet and is suitable for wall mounting. Constructed from steel, it is built to withstand various conditions.

• Designed for 30.5 mm or 22.5 mm pushbuttons and switches
• NEMA 12/IP65 rating for protection
• Hinged cover for easy access

Product Highlights

This product is suitable for controlling machinery in industrial settings while offering protection from environmental factors.

Product Information

Standard Information

• Brand: nVent
• Manufacturer Part Number: E1PBG

Technical Specifications

• Application: For holding 30.5 mm or 22.5 mm pushbuttons and switches
• Color: Gray
• Cover Type: Hinged
• Depth: 2-3/4 inches
• Finish: ANSI 61 Polyester Powder Painted
• Length: 3-1/2 inches
• Material: Steel
• Mounting Type: Wall
• NEMA Rating: NEMA 12/IP65
• Number of Outlets: 1
• Series: PB1
• Standards/Approvals: cUL Listed per CSA C22.2 File No. 94 File No. E61997|CSA File No. 42186|IEC 60529|UL 508A File No. E61997
• Width: 3-1/4 inches
