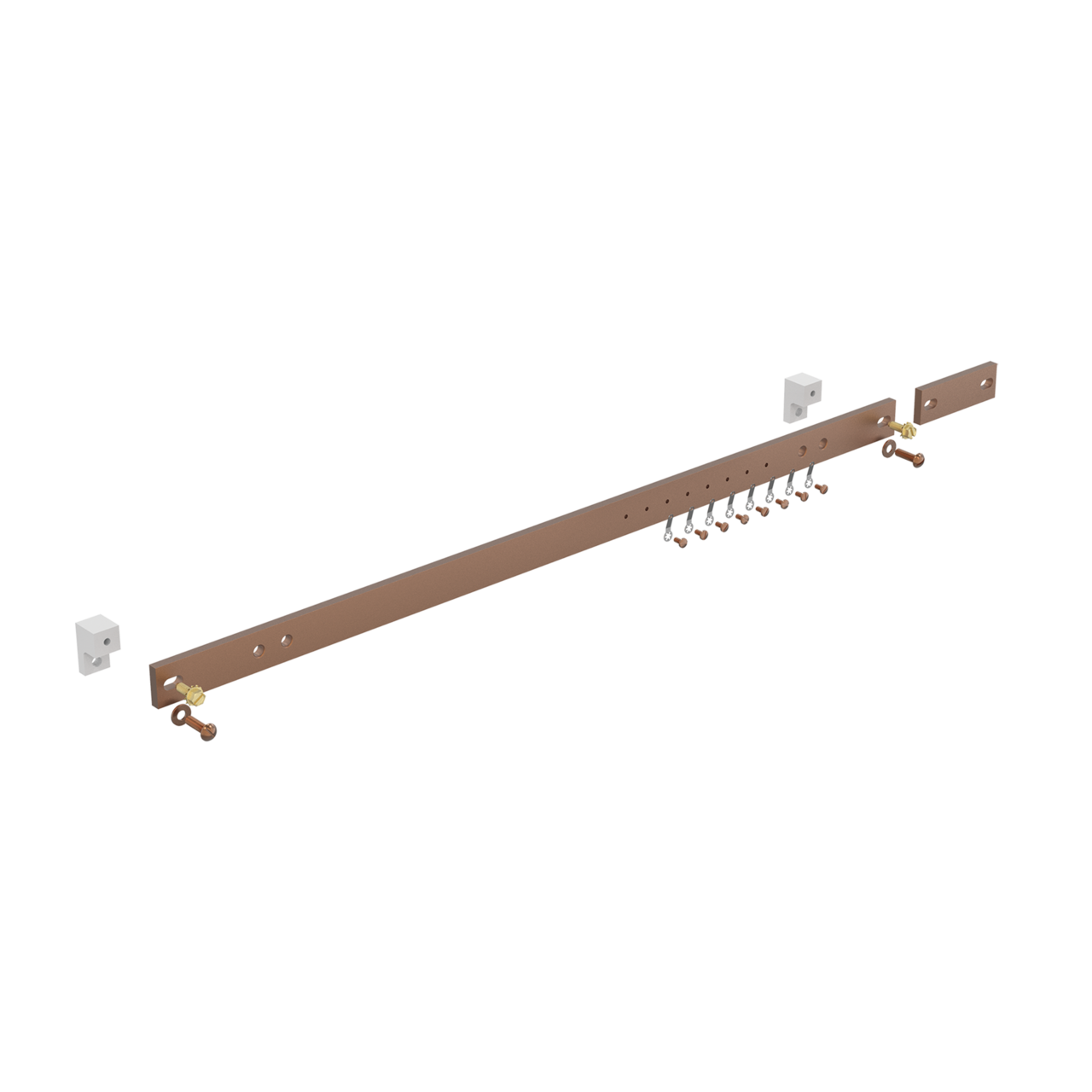

nVent DG19 HOF GROUND BAR KIT, HORIZ 1.00x19.25 COPPER 17266

Product Description

The nVent DG19 Hoffman Ground Bar Kit is designed for reliable grounding solutions in various applications. This horizontal ground bar kit is made of copper and is suitable for use with EIA 310-D rated open frame racks.

• Components designed for reliable connections.
• Meets equipment manufacturer grounding requirements.
• Includes mounting hardware and terminals.

Product Highlights

This kit provides a convenient way to connect equipment grounds horizontally on a rack.

Product Information

Standard Information

• Manufacturer: nVent
• MPN: DG19

Technical Specifications

• Application: For telecommunication room and data center applications
• Includes: Ground Bar with mounting hardware, eight #6-32 x 14 machine screws, and eight #6 ring terminals
• Material: Copper
• Series: DBG
• Specifications: 1 x 19-1/4 x 1/4 inch Bar
• Standards/Approvals: RoHS Compliant, UL 467, cUL Listed, CSA C22.2
• Suitable For Use With: EIA 310-D Rated Open Frame Rack
• Type: Horizontal
